First time wheel truing

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

First time wheel truing

Old 06-13-22, 11:10 PM
  #1
gululok
Junior Member
Thread Starter

Join Date: Sep 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 4 Times in 2 Posts
First time wheel truing

Just wrapped up my first adventure into wheel truing. I first tried to do it by ear, got no where, and bought a cheap Chinese tension meter. If the included conversion table is accurate, I ended up ~140kgf on the drive side, and ~80kgf on the non-drive side (rear wheel). Does that look right? I know the drive side should be higher, but 75% difference? Also, my other bike (which is identical, but spokes are untouched) measured ~90kgf on the drive side, and ~56kgf on the non-drive side. How much of the difference is because I freshly tightened the spokes on bike#1, whereas bike#2's spokes stretched over the years? Should I lower the tension on bike#1 to match bike#2? How low can I go before I risk the nipples loosening themselves?


(They're basic single wall rims. Weimann ZAC1900.)
gululok is offline
Old 06-14-22, 07:21 AM
  #2
pdlamb
Senior Member

Join Date: Dec 2010
Location: northern Deep South
Posts: 7,656

Bikes: Fuji Touring, Novara Randonee

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1947 Post(s)
Liked 1,202 Times in 763 Posts
140 kgf sounds pretty high to me. I'd try to take it down to 120 kgf tops, 110 would be better.

Non-drive side tension will be what it needs to be to get the dish straight. (That's why some people use linseed oil on NDS spoke threads, they'll often be too slack for tension alone to keep the nipples from rotating.) IIRC my rear wheels run about 115+/-10 DS and 60-70 NDS.
pdlamb is offline
Likes For pdlamb:
Old 06-14-22, 09:51 AM
  #3
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,050

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3628 Post(s)
Liked 2,061 Times in 1,309 Posts
For what it's worth, Weinmann recommends a 120kgf max for most of the single-walled rims I see on their site (couldn't find the 1900.) It's normal for rear wheels to have a healthy difference in tension between sides. Usually the NDS ends up at 50-60% of the DS tension for me. Double-butted spokes resist coming loose a little better, so I'm comfortable with a bit less than the usual 60-70 kgf minimum that a lot of people use for their wheels.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 06-14-22, 06:14 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 16,443

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Srewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3509 Post(s)
Liked 2,286 Times in 1,465 Posts
How does a 80/140 get a 75% difference?

I agree with both others about the usual tensions and differences.

When you say you "tried it by ear" but couldn't do you mean you couldn't note the different tones of the spokes when plucked? On the same side of the wheel? Seeking the same pluck tone has nothing to do with ultimate tension levels, only relative levels to other similar spokes. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 06-14-22, 07:51 PM
  #5
ajh.me
Junior Member

Join Date: May 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Jobst Brandt's The Bicycle Wheel gives good justification for the spokes to be absolutely maxed in tension.

I've built perhaps a dozen wheels over the past 50 years and have never used a tensiometer, just truing to straightness.
ajh.me is offline
Likes For ajh.me:
Old 06-14-22, 08:20 PM
  #6
fishboat
Senior Member

Join Date: Feb 2016
Location: SE Wisconsin
Posts: 1,571

Bikes: Lemond '01 Maillot Jaune, Lemond '02 Victoire, Lemond '03 Poprad, Lemond '03 Wayzata drop bar conv(Poprad), '79 AcerMex Windsor Carrera Professional(purchased new), '88 GT Tequesta(purchased new), '01 Bianchi Grizzly, 1993 Trek 970 drop bar conv

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 595 Post(s)
Likes: 0
Liked 546 Times in 325 Posts
In my experience, there's really no reason to assume the "cheap Chinese tension meter" is remotely close to accurate. I don't believe one of those meters (the spring in those meters) could measure 140kgf accurately, or even 120kgf.

https://www.bikeforums.net/bicycle-m...on-meters.html
fishboat is online now
Likes For fishboat:
Old 06-14-22, 09:38 PM
  #7
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 11 Posts
It is worth calibrating your tension meter. At least you will know it is accurate, and then over time you will come to rely on it less and less as you get used to what you are aiming for.
For what it's worth, calibrating a tension meter is not difficult and does not require heavy investment.
Also, get yourself a copy of brandts or mussons book and work through it.
Tawraste666 is offline
Old 06-15-22, 10:31 AM
  #8
KerryIrons
Full Member

Join Date: Mar 2012
Posts: 358
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Likes: 0
Liked 173 Times in 102 Posts
Originally Posted by Andrew R Stewart View Post
How does a 80/140 get a 75% difference?
Perhaps the math goes like this: 60 increase (140 vs 80) compared to 80. 60 is 75% of 80.
KerryIrons is offline
Old 06-15-22, 01:42 PM
  #9
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,320

Bikes: lots

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 1659 Post(s)
Liked 2,453 Times in 1,269 Posts
Originally Posted by ajh.me View Post
Jobst Brandt's The Bicycle Wheel gives good justification for the spokes to be absolutely maxed in tension.

I've built perhaps a dozen wheels over the past 50 years and have never used a tensiometer, just truing to straightness.
Wow, an entire dozen? I promise they would have been better if you'd had some way to judge tension. I've built close to 2000 and use one on every wheel I build or true.
cxwrench is offline
Likes For cxwrench:
Old 06-15-22, 08:29 PM
  #10
Jtravels
Junior Member

Join Date: Jun 2022
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by cxwrench View Post
Wow, an entire dozen? I promise they would have been better if you'd had some way to judge tension. I've built close to 2000 and use one on every wheel I build or true.


But do remember this.. you cannot teach an old dog new tricks lol.

I will admit w sound and feel even given my Midland hearing I can do a good job without my tension meter. Get your wheel very round while eliminating the poorly tensioned or over tension spokes per each side on the rear. Once you're round you're pretty much done. It's just a matter of adding the subtracting tension per side to get the lateral true right on.

Throw the brost book in the garbage... Where it belongs.
Jtravels is offline
Likes For Jtravels:
Old 06-15-22, 09:41 PM
  #11
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,320

Bikes: lots

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 1659 Post(s)
Liked 2,453 Times in 1,269 Posts
You can 'true to straightness' and still be wildly off on tension. How do you know other than guessing and then riding the wheel to see if it holds up? Please don't tell me that's how you do it.
cxwrench is offline
Old 06-15-22, 11:00 PM
  #12
ajh.me
Junior Member

Join Date: May 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Well, maybe only ten or eleven.. Only a couple professionally one summer, the rest for the pleasure of craft. I've had access to a tensionmeter but it never helped me. Maybe my wheels sucked, maybe not. Except for the ones built for customers, I've ridden every wheel I've built for many, many miles.
ajh.me is offline
Old 06-15-22, 11:17 PM
  #13
ajh.me
Junior Member

Join Date: May 2022
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thousands of robust wheels have been built without a tension meter. Yes, you can build a wheel with wildly inconsistent tension that is straight, and I have built a couple of those (which I ripped apart and rebuilt), but as you're doing that, it's pretty obvious you're getting it wrong.

With patience and some understanding, I've found no need to put a number on the tension in the spokes. It's not a fast way of building wheels, but I'm building for pleasure.
ajh.me is offline
Old 06-16-22, 07:38 AM
  #14
Jtravels
Junior Member

Join Date: Jun 2022
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
ASSumptions... One has to find some humor in it.

Your average spoke tightener.. define round? I don't think I've ever seen round from your average run of the mill spoke tightener.

Then define.. wildly inconsistent tension?

Suggest.. making your wheel round once around 1/2 the thickness of your average coin that being a dime. That gives you under .02 in AKA under 1/2 mm. Under one half is (actually more like one mm and above) where the spoke tightener game ends and the wheelbuilder starts. Then one is well past wildly inconsistent tension lol.

Nuff said.

Last edited by Jtravels; 06-18-22 at 09:25 PM.
Jtravels is offline
Old 06-16-22, 04:29 PM
  #15
VonCarlos
AmiableNitrite Member

VonCarlos's Avatar

Join Date: Mar 2009
Location: From California, currently in Utah
Posts: 268

Bikes: '74 Alex Singer -'81 Mercian(sold) - '72 Motobecane GR(sold) - '73 Legnano(sold) - '6? Dawes Galaxy(sold) - '87 Masi GC(sold)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2 Times in 2 Posts
I have a Park tension meter and use it to just confirm what I've trued, based on spoke ring sound.
VonCarlos is offline
Likes For VonCarlos:
Old 06-16-22, 06:35 PM
  #16
gululok
Junior Member
Thread Starter

Join Date: Sep 2021
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 4 Times in 2 Posts
Originally Posted by VonCarlos View Post
I have a Park tension meter and use it to just confirm what I've trued, based on spoke ring sound.
My cheapo tension meter just uses aluminum posts for the three contact points. With my rusty spokes, there's a range of readings (about 2 markings, ~30 kgf) where friction holds the meter steady. Does the Park tension meter have any sort of friction reduction measures (bearing/plastic bushing)? Would it be a good idea to grease/oil my tension meter?
gululok is offline
Old 06-16-22, 07:38 PM
  #17
greatbasin
Junior Member

Join Date: Mar 2022
Posts: 178
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 133 Post(s)
Liked 66 Times in 54 Posts
Is the Park tensionmeter a good standard for someone truing a half-dozen wheels a year? What about a wheel stand? I've checked trueness in the frame with a clamped steel pointer aimed at the rim and eyeballing it seemed to be good enough. I have a Starrett dial indicator, but I'm not sure any of the wheels I own could ever be trued that precisely. We're talking early-eighties Belgian Weinmann rims on Maillard and Normandy hubs - not even close to CNC.

I had one set checked and trued by a LBS mechanic, but I have a few other bikes where the whole bike's value is not much more than the cost of an hour labor at the LBS. I might be willing to buy the Park Tool, not to build wheelsets, but to keep my few good wheels true and maybe take a crack at my junk sets.
greatbasin is offline
Old 06-16-22, 07:45 PM
  #18
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,252

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked 743 Times in 489 Posts
I gave up on trying to pay attention to the charts and numbers on my ChiCom tension meter. The reason is that I have no way of calibrating it reliably. My solution to this was to just pay attention to the numbers on the meter for what ever they indicate. I went around to my wheel sets and measured the tension on front and rear wheels. Surprisingly they were very close and in my newer well trued wheels there was little variance between the spokes for each side. Not so with some of my trued but beaten up wheel sets. I expected as much as they are survivors and at least round. For what its worth I'll post my findings but remember I am using a cheap ChiCom uncalibrated spoke tension meter. Your meter might have numbers entirely different. So what I am paying attention to is really finding that oddball spoke that is just to loose or too tight.
...........................................................
700c M13II 700c 622 14ga
Front: 32-34 Average = 33
Rear Drive Side: 32-33 Average = 31
Rear Nondrive Side: 28-30 Average = 29
..........................................................
Rm19 Weinmann 27-1/4 x 28c / 35c ETRTO 630X19 14ga
Front = 31
Rear Drive = 30
Rear Nondrive = 25
..........................................................
CR18 27-1/4 14ga SUNRIMS 14ga
Front = 31-32
Rear Drive = 31
Rear Nodrive = 27
..........................................................

__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 06-16-22, 08:51 PM
  #19
speedy25
Senior Member

Join Date: Mar 2012
Location: NE oHIo
Posts: 1,034

Bikes: Specialized, Trek, Diamondback, Schwinn, Peugeot

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 35 Times in 30 Posts
When assembling new or used wheels, I have never had a typical spoke torque. I just tighten them semi snug and start truing. If the wheel is true and the spokes dont have a good ring, I give a quarter turn to all of them and make sure its still true until I have a good tension.

Yep, I never had all the fancy tools when I assembled wheels as a kid and as a testament to getting it right, they stayed true and never broke spokes either. But I'm mechanically inclined. Others may not have that skill as they do this task.

-SP
speedy25 is offline
Old 06-17-22, 11:46 AM
  #20
Tawraste666
Newbie

Join Date: Dec 2014
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 11 Posts
The park tension meter, like any measuring guage is only any good if it is calibrated, maintained, and used in a consistent manner.

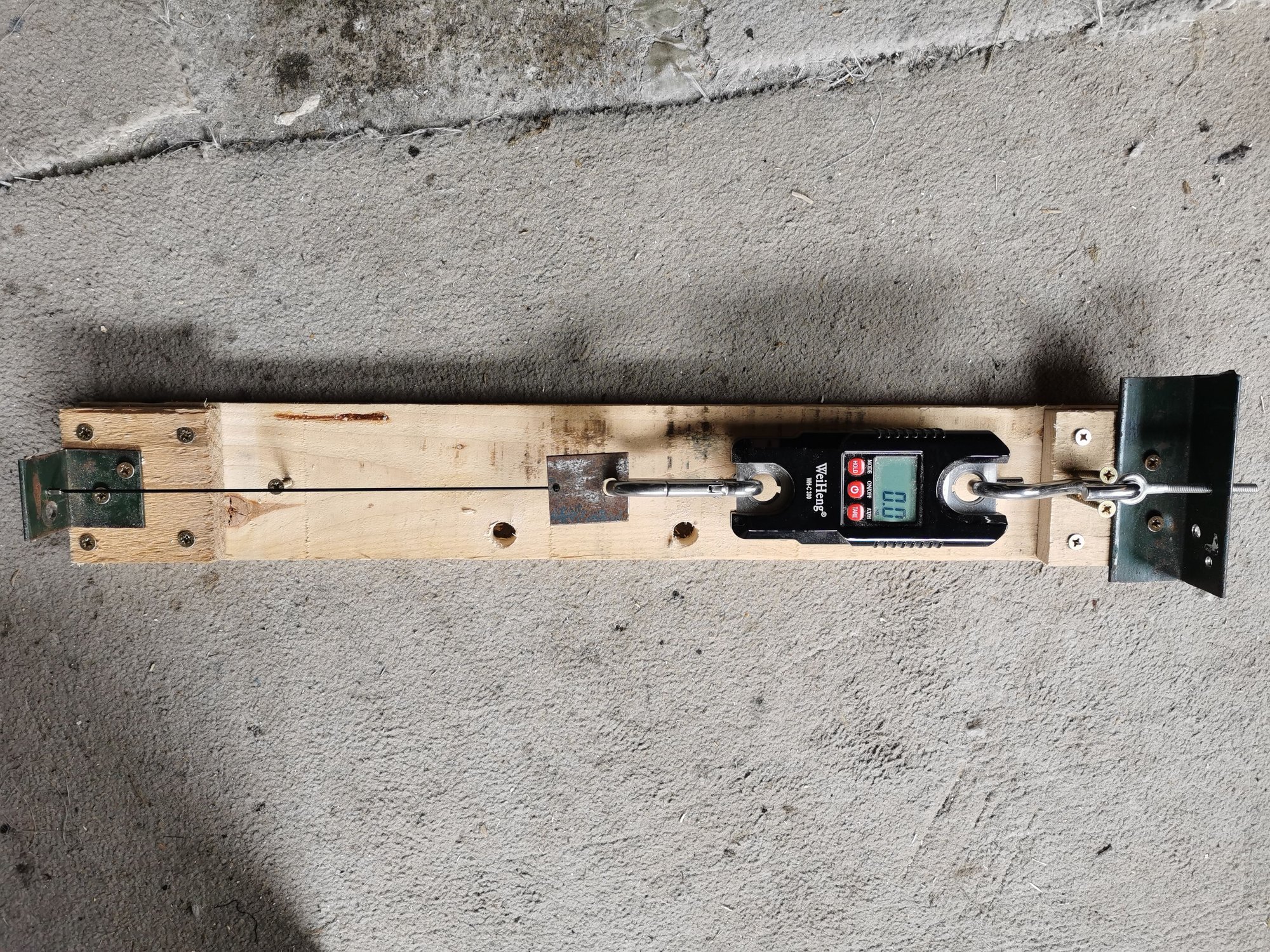

Calibrating is easy. Rig up a spoke to a luggage scales and a fixed point using a bolt you can tighten up. Tighten the bolt until you get to say 90kg. Take a reading and compare it to the chart and adjust the screw on the meter accordingly.
Here's a pic of my rig:



I'll calibrate my tensionmeter every couple of months or so because that's how often all my measuring devices in work need to be done.
As for the stand, I got by with a wooden one made to Roger Musson's design which is in his book. Cost me some labour. I bought a Park one because I treated myself. A stand is super nice because you can take the wheel into the house in the evening and work from a sofa if you want.
As for wheels and dial indicators - I have got a wheelset from a 90s cheap mountain bike as true as my good set on my modern Ridley roadbike. Same for my kids cheap bikes. Their wheels are so cheap they don't even file the weld beads off inside the rims an they still true up lovely. The dial indicators just put a number on it, but that is still satisfying.
As for my local LBS and wheel truing - a few sets have come my way and they were laughably rubbish. Total abscence of basics.


Originally Posted by greatbasin View Post
Is the Park tensionmeter a good standard for someone truing a half-dozen wheels a year? What about a wheel stand? I've checked trueness in the frame with a clamped steel pointer aimed at the rim and eyeballing it seemed to be good enough. I have a Starrett dial indicator, but I'm not sure any of the wheels I own could ever be trued that precisely. We're talking early-eighties Belgian Weinmann rims on Maillard and Normandy hubs - not even close to CNC.

I had one set checked and trued by a LBS mechanic, but I have a few other bikes where the whole bike's value is not much more than the cost of an hour labor at the LBS. I might be willing to buy the Park Tool, not to build wheelsets, but to keep my few good wheels true and maybe take a crack at my junk sets.
Tawraste666 is offline
Likes For Tawraste666:
Old 06-18-22, 09:32 PM
  #21
Jtravels
Junior Member

Join Date: Jun 2022
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by gululok View Post
Just wrapped up my first adventure into wheel truing. I first tried to do it by ear, got no where, and bought a cheap Chinese tension meter. If the included conversion table is accurate, I ended up ~140kgf on the drive side, and ~80kgf on the non-drive side (rear wheel). Does that look right? I know the drive side should be higher, but 75% difference? Also, my other bike (which is identical, but spokes are untouched) measured ~90kgf on the drive side, and ~56kgf on the non-drive side. How much of the difference is because I freshly tightened the spokes on bike#1, whereas bike#2's spokes stretched over the years? Should I lower the tension on bike#1 to match bike#2? How low can I go before I risk the nipples loosening themselves?


(They're basic single wall rims. Weimann ZAC1900.)
So Mr 140/80.. how did you solve that problem?

For sure 140 is way too high for a single wall rim. I seem to remember when I was practicing starting out that I tensioned a steel single wall rim 27-in to above 150 kg force. It was extremely round... and so very tight. LOL. Happens... You ain't the lone ranger. Lol again.
Any comments to what you learned so far?
Jtravels is offline
