Frame id anyone?

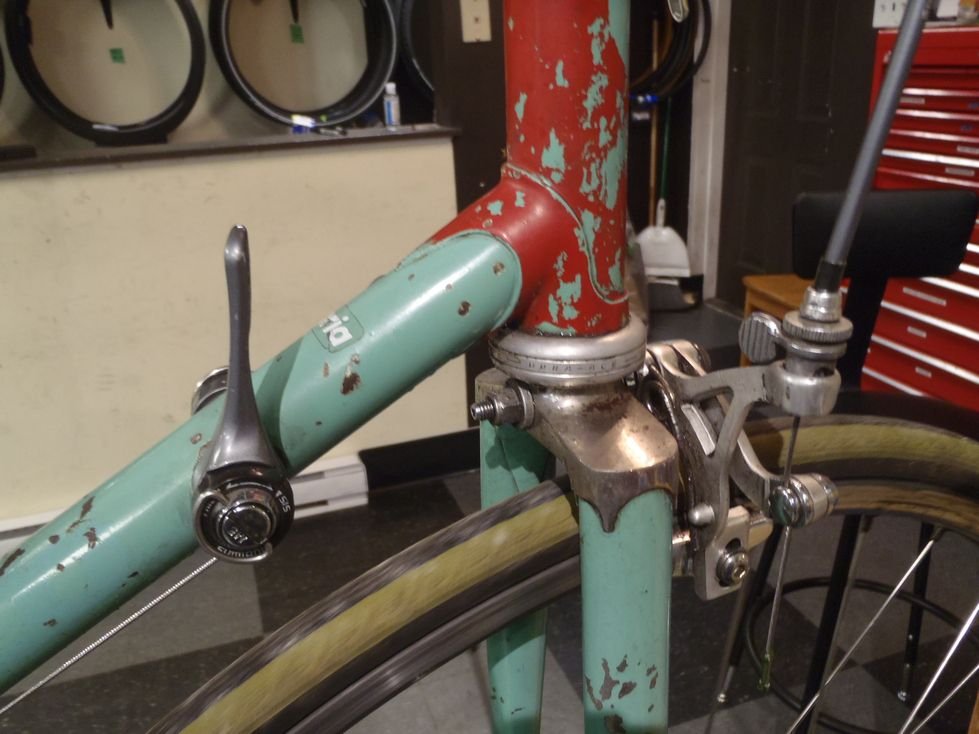

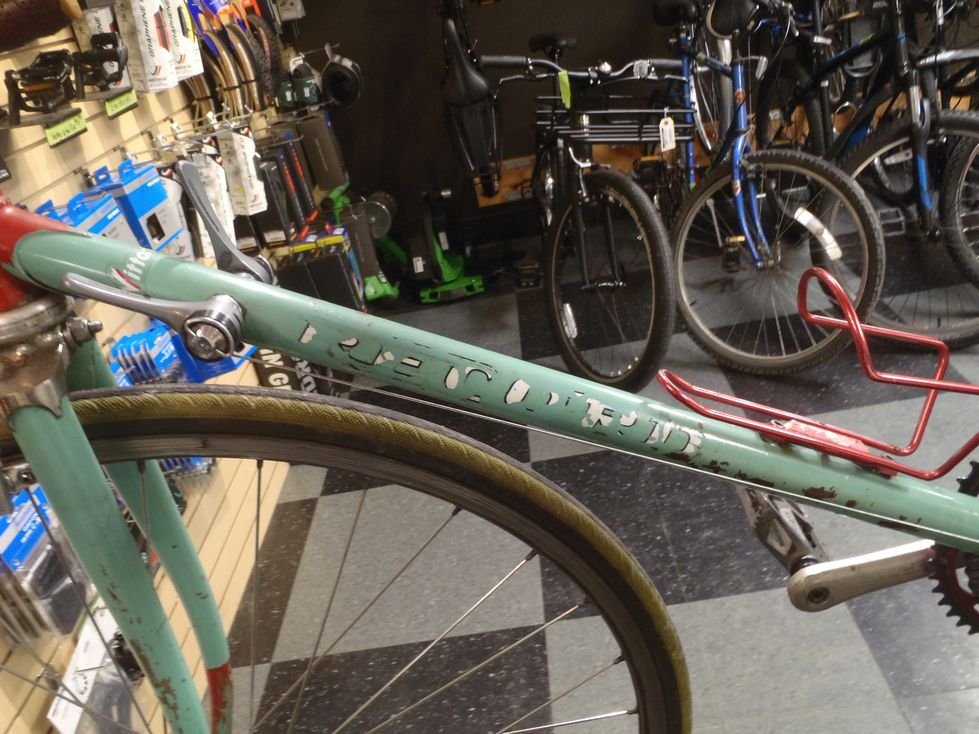

This belongs to one of the employees of the LBS. Once upon a time it had chrome stays and forks. The fork blades are fat like old Columbus and he says it has an italian BB. Nothing on the bike is original.






oneclick is offline
Old 06-22-21, 08:40 AM
  #2
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 896
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 436 Times in 264 Posts
Bianchi had a longstanding model in its lineup called the Record. THe Celeste paint is also a clue.

I could not find any online photos of a Bianchi Record where 'RECORD' was the main label on the DT, though.

Raleigh also made a bike called the Record but this is not one of them AFAIK. Raleigh Records were cheaper bikes with plain dropouts without a built in derailleur hanger.
ClydeClydeson is offline
Old 06-22-21, 08:46 AM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,099
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2629 Post(s)
Liked 957 Times in 744 Posts
-----

joinery of stays to dropouts reminiscent of Teddy Carnielli's treatment


-----
juvela is online now
Old 06-22-21, 10:15 AM
  #4
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,442
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 791 Post(s)
Liked 359 Times in 292 Posts
Juvela sure may be onto something, and the stay joints being a clue pointing to Bottecchia is certainly one I'd never have noticed. Since this reportedly has an Italian BB shell he's in the right territory, cannot tell what the DOs are but likely these are Campy or GPM. The thing with Bottecchia is that details like seat stay caps and forkcrown are all over the map and since that marque also spans many decades plus model-levels it's hard to nail down the make, however you DO see occasional examples that use this style (Italian) crown as well as sometimes those trad stay caps.
Since the RD cable routing is above BB shell and the brakes are nutted, I would say this frame could fall into the era that Bottecchia used metal head badges: so when you have it in hand check for the two (vertical) rivet holes in the head tube, filled in or not, and report back.
What I don't know is how much "Contact building" Carnielli did that may never have been badged as a Bottecchia: he certainly did a little bit (LeMond, for example) but need someone with more depth to chime in.
MauriceMoss , maybe?
unworthy1 is offline
Old 06-22-21, 10:27 AM
  #5
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,704

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1707 Post(s)
Liked 1,728 Times in 844 Posts
The Record decal is part of a generic set. I suspect it was used by the odd bike shop as a "house brand":

__________________
The Upsetter is gone ... too late to check him out








non-fixie is online now
Likes For non-fixie:
Old 06-22-21, 10:42 AM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,099
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2629 Post(s)
Liked 957 Times in 744 Posts
Originally Posted by non-fixie View Post
The Record decal is part of a generic set. I suspect it was used by the odd bike shop as a "house brand":

-----



just returned to the thread to edit me post and mention that this might be a possibility

wonderful to see you beat me to it - and complete with documentary evidence no less!

thanks so much non-fixie!

---

one piece of information we have not as yet received is what the underside of the shell looks like

-----
juvela is online now
Old 06-22-21, 11:00 AM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,617
Mentioned: 569 Post(s)
Tagged: 1 Thread(s)
Quoted: 4033 Post(s)
Likes: 0
Liked 1,581 Times in 1,136 Posts

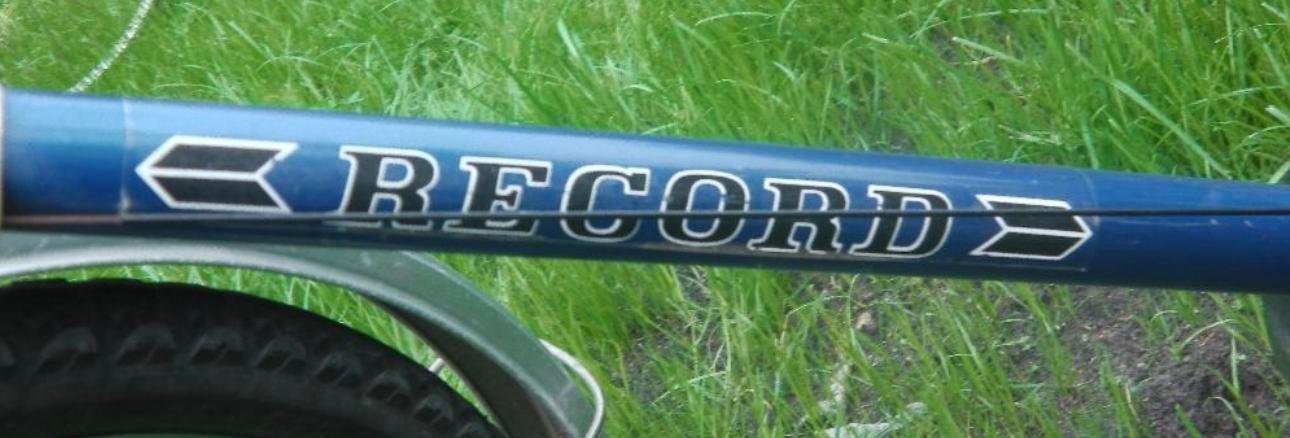

There does appear to have been a legitimate Record brand with similar font.

T-Mar is offline
Old 06-22-21, 12:36 PM
  #8
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,493
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts
Originally Posted by unworthy1 View Post
Since the RD cable routing is above BB shell and the brakes are nutted, I would say this frame could fall into the era that Bottecchia used metal head badges: so when you have it in hand check for the two (vertical) rivet holes in the head tube, filled in or not, and report back.
Dropouts are Campagnolo, no (visible) holes for a headbadge.
oneclick is offline
Old 06-22-21, 04:15 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,099
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2629 Post(s)
Liked 957 Times in 744 Posts
-----

in case it turns out to be an Edoardo of some stripe it appears to date from immediately prior to the beginning of the Piaggio period


-----
juvela is online now
Old 06-25-21, 04:48 PM
  #10
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 456

Bikes: None in ridable condition

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 224 Times in 93 Posts
It's an interesting looking frame. Stay ands and the fork crown aren't distinctive enough and there's a few makers that used similar seat stay caps, but when taking into account the other features, things don't seem to fit too well.

One thing that's hard to tell from the pictures but looks odd is the lug cutouts - if I'm seeing it correctly, the head lugs have no cutouts but the seat lug does?





I agree with juvela - seeing a clear pic of the underside of the bottom bracket shell would help. Are there any numbers anywhere on the shell? Also, what do the top tube cable guides look like (or is routing internal?)?
Is bb threading Italian for sure?
MauriceMoss is offline
Likes For MauriceMoss:
Old 06-29-21, 07:21 PM
  #11
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 1,493
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 550 Post(s)
Likes: 0
Liked 517 Times in 325 Posts

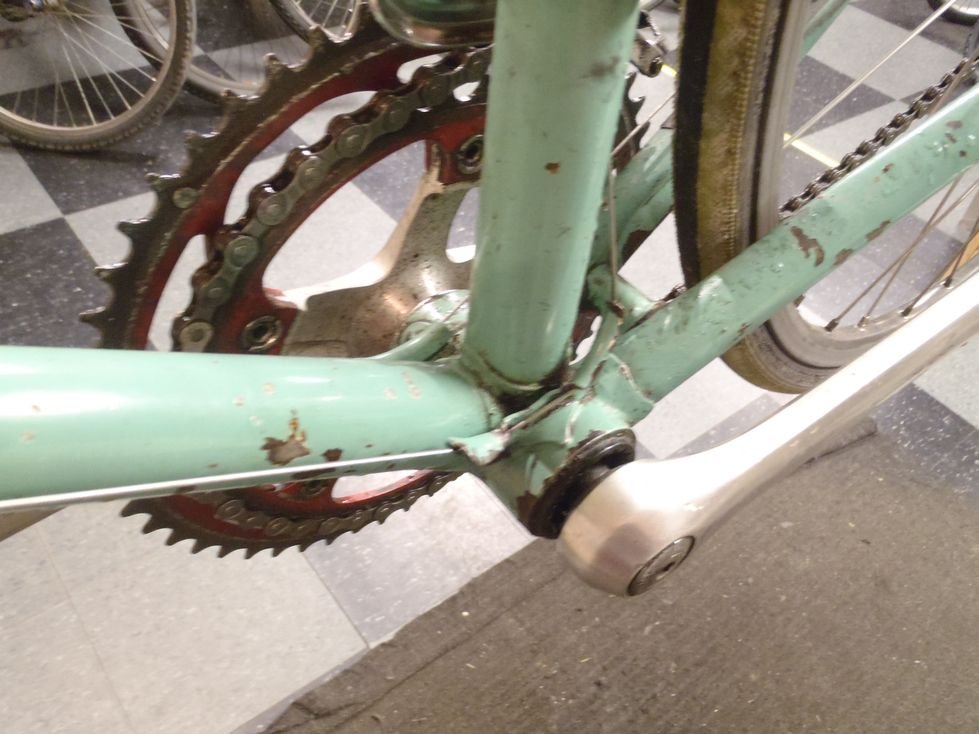

As requested, pics of bb cutout and the seat lug. The head lugs have no cutouts.

Owner says this is his favourite frame to ride.


oneclick is offline
Old 07-01-21, 02:10 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,099
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2629 Post(s)
Liked 957 Times in 744 Posts
-----

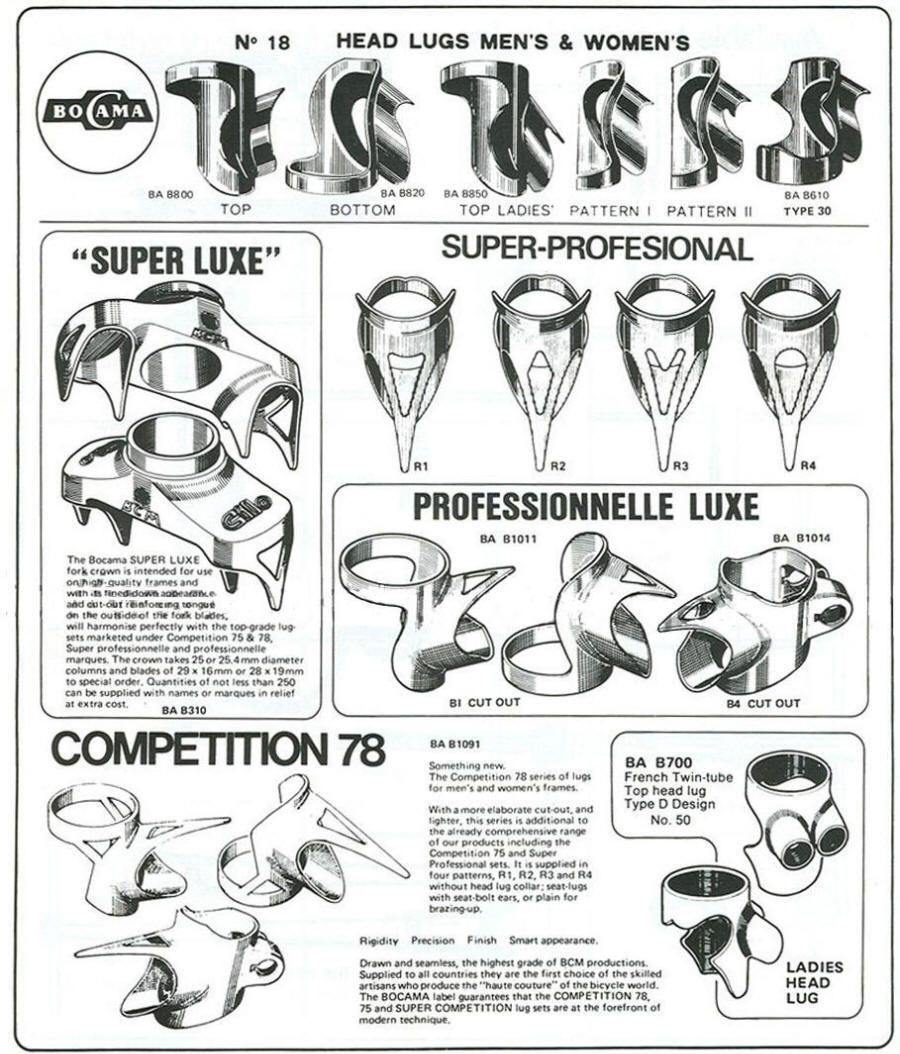

BOCAMA refers to the cutout pattern exhibited by the seat lug as R1

the fact that head lugs demonstrae no cutouts suggest frame was construced by someone "using up what was in the parts bin"

a second possibility might be tube replacement...




[cutouts more elongated on longpoint lugs and shorter on short point models]
-----

Last edited by juvela; 07-01-21 at 02:29 PM. Reason: addition
