Mountech RD seized - overhaul

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mountech RD seized - overhaul

Old 10-17-20, 09:13 PM
  #1
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 130

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Mountech RD seized - overhaul

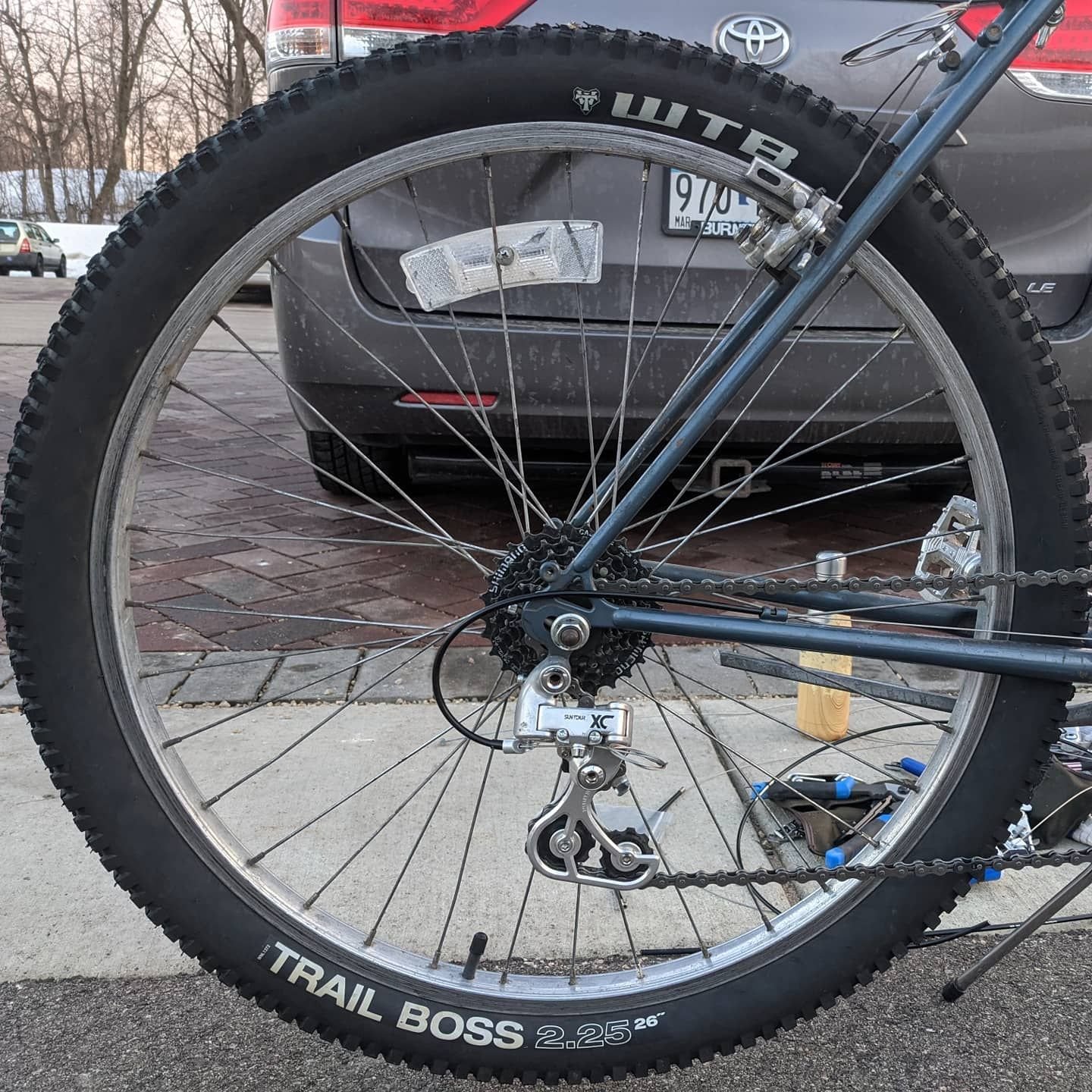

I had been thinking about posting a picture of my bike with the Mountech RD & asking how long I would have before it exploded on me, but that ship has sailed.

I was out on a ride this morning when I felt some grinding when pedaling. I looked down & the chain was bouncing something fierce! I tried trimming the rear derailer as I could see the front was fine, but no improvement. I hopped off to see if something was caught in the chain or RD. Nothing. Back on & same thing! Hopped off again to check the RD. Lower pulley moves fine, upper barely budges...

Phone call for a pick up.

Later in the day I found some time to take a look. I didn't debate long in trying to overhaul despite the bad reputation. Since I was away from home & didn't have a backup RD or store nearby to pick something up the options were repair or no bike rides.

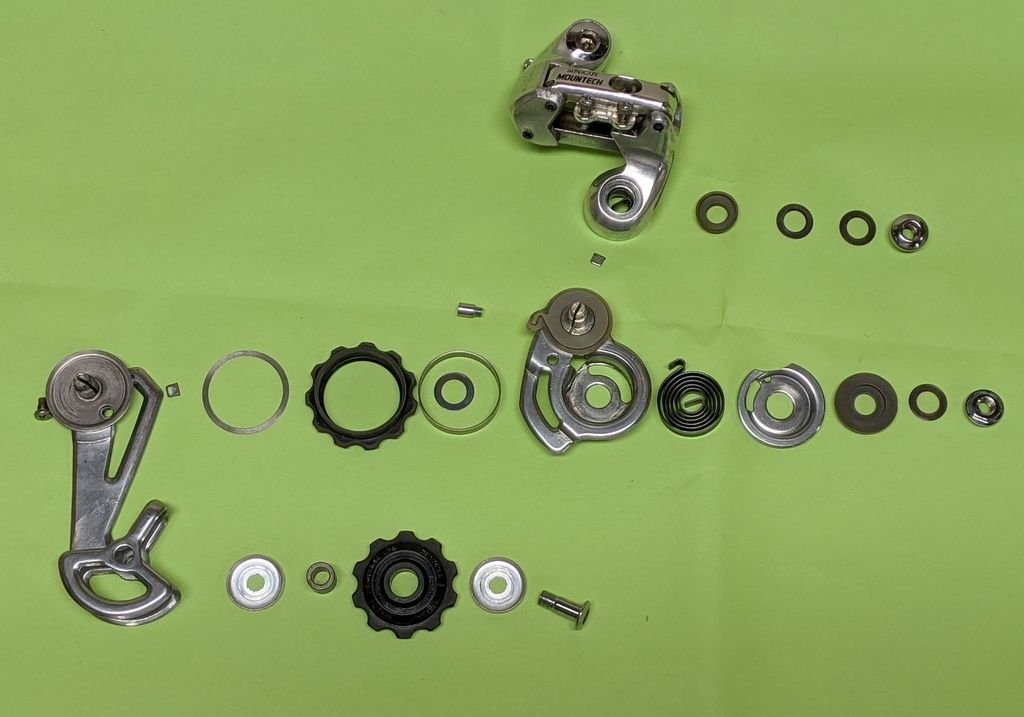

Anyway, here're my picture notes for reassembly:

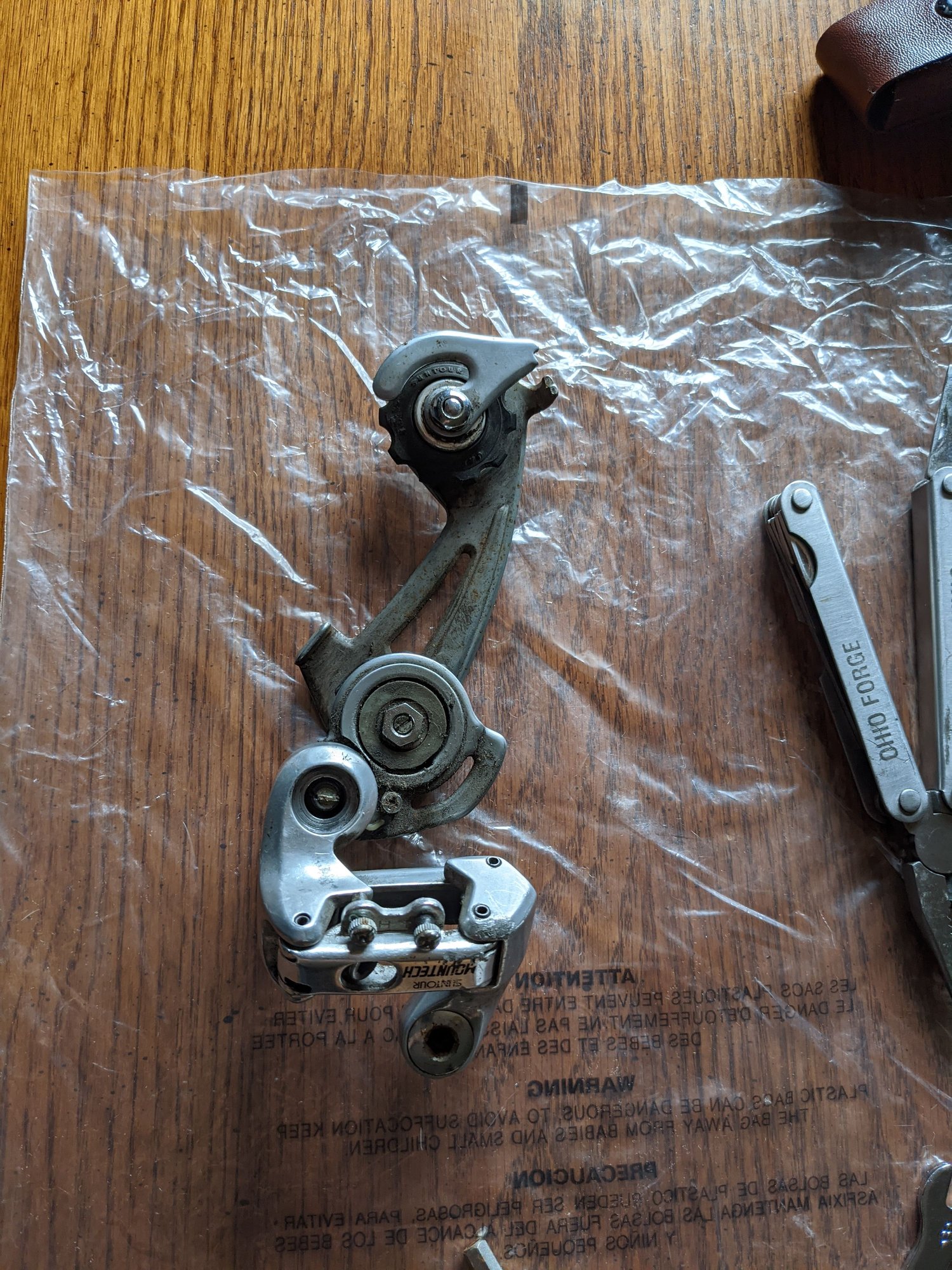

Above: position after first spring is unwound.

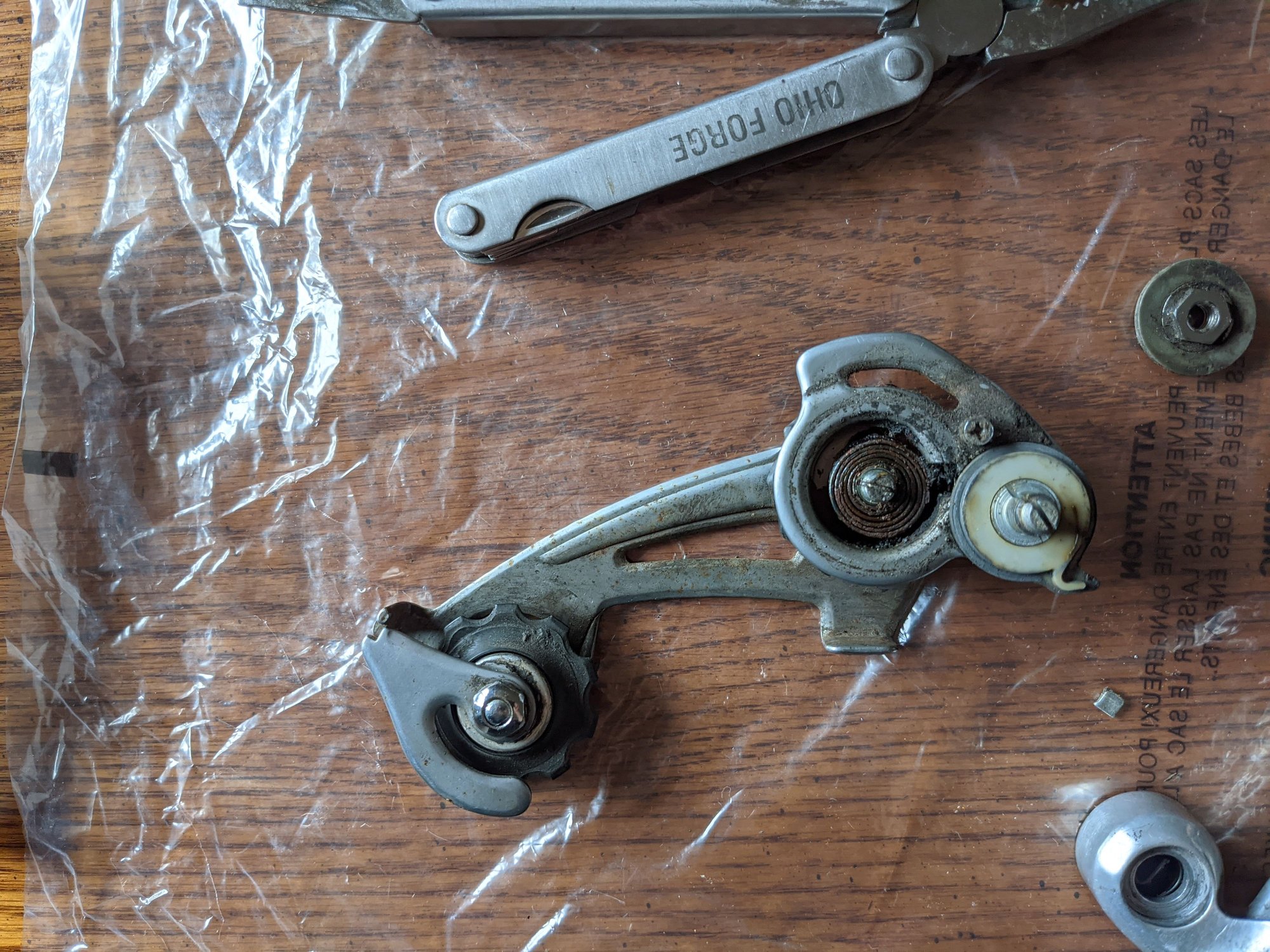

Above: position of second spring under tension.

Above: position of second spring when unwound.

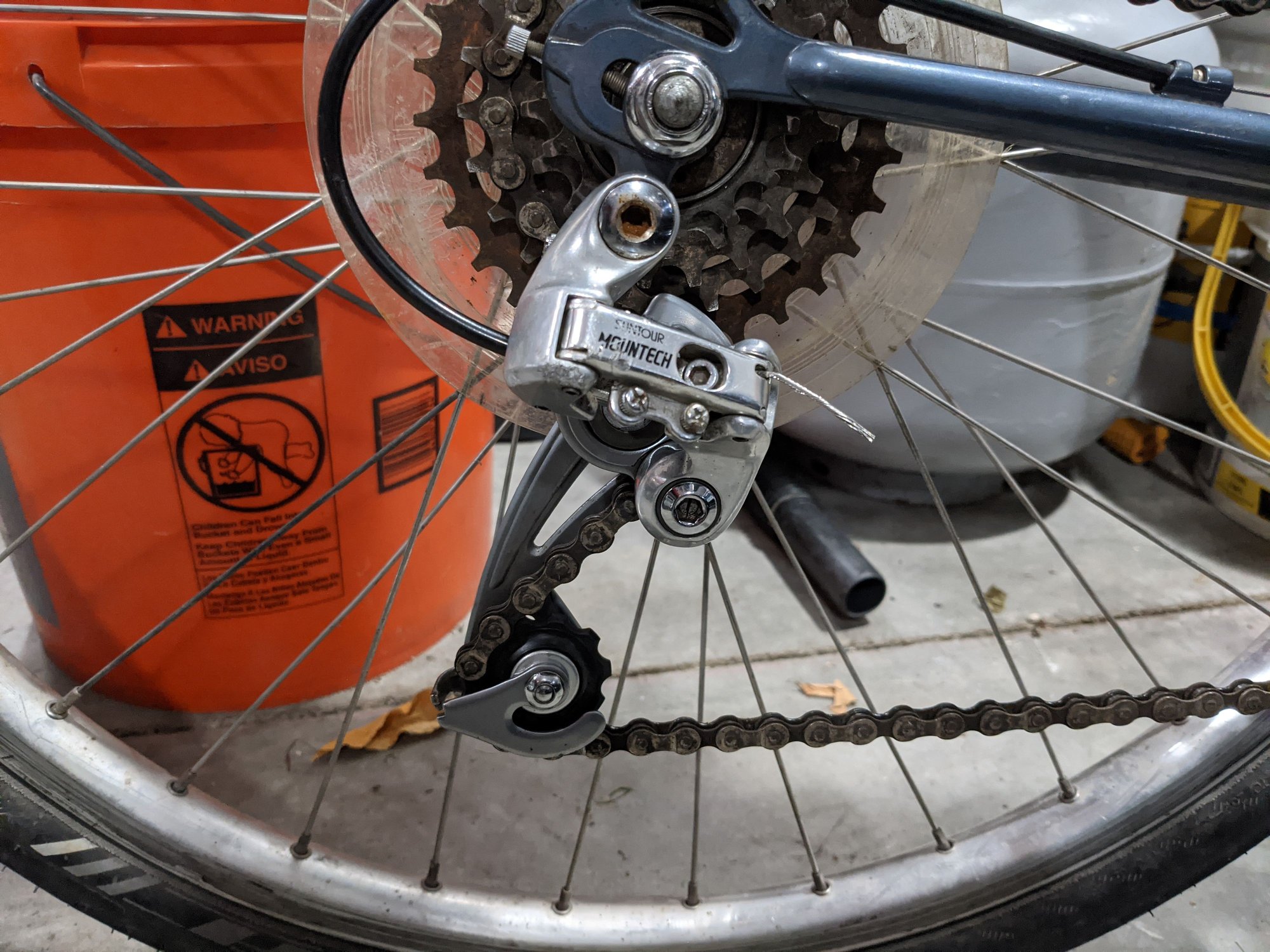

Above: RD reinstalled & shifting through all five speeds just fine.

I had to take it apart twice as the first time I didn't wind the second spring up quite right & the chain would get pinched between the derailer & largest sprocket. Second time was the charm, but the real test will be tomorrow when I actually get it out for a ride.

After having seen the insides of the Mountech, I see how it earned it's reputation. Way too easy for dirt to get in & way too time consuming to routinely clean. It's really a wonder it got approval for production.

I guess that ship is back at anchor; so how long have I got before it raises a ruckus again?
thorstein is offline
Old 10-17-20, 09:37 PM
  #2
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,128

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1110 Post(s)
Liked 571 Times in 404 Posts
Thanks for taking me down memory lane to 1985 or so, working on my 1984 Stumpjumper Sport.

I too found the easy entry of dirt into the pulley bushing most troublesome, especially as the involved rubbing surfaces were abnormally huge, creating massive friction after riding in wet conditions in upstate NY.

I cleaned out and loaded mine up with white grease, then rode it for perhaps another year or three until finally upgrading the drivetrain to some 6s SIS combination.
dddd is offline
Old 10-18-20, 11:02 AM
  #3
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Western MI
Posts: 2,438
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 182 Times in 132 Posts
I have one of these awaiting overhaul. Do you actually remove the spring or just flush out the dirt?
plonz is offline
Old 10-18-20, 11:09 AM
  #4
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,806

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2277 Post(s)
Liked 787 Times in 481 Posts
Why?

There's 9 million and twenty seven decent derailleurs in the world, out of that there's a few hundred that are really good and out of that there's still 94 that are REALLY good. Why play ****-**** games with the biggest failure ever conceived by any bicycle manufacturing company?

If you want a Mountech- use the 2nd generation- it's much less problematic- it gets rid of the captive pulley and mechanics, but is still stuck with that triple pivot design that really doesn't solve any issues.

That looks something like an 84 Stumpjumper Sport- if you want something dominant and Suntour from around the same era- go with an XC. (not XC Sport or anything, just plain ol "XC"). If you really want a triple pivot, go with a Le Tech, but it's going to be more fragile and problematic and no better than a dual pivot. If you want unique, go with an XC triple pulley- significantly more robust, it works flawlessly and it's a hit at parties.

"Hey Bob, the Vikings are looking to turn the corner at any... SAY... is that a triple pulley derailleur on you Stumpjumper?"

"Why yes it is, Phil..."

Friends don't let friends ride 1st gen Mountechs.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 10-18-20, 12:16 PM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,861

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2691 Post(s)
Liked 1,402 Times in 872 Posts
The upper pulley spring is the Achilles heel of the Mountech derailleur. I wonder how well it would work without the spring? The Huret Duopar, for example, manages that second articulation without the need for a spring. I may have to scrounge up a Mountech and give it a try…
JohnDThompson is offline
Likes For JohnDThompson:
Old 10-18-20, 01:15 PM
  #6
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: Rexburg, ID
Posts: 502

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude, '88 Cannondale SR2000, '74 C. Itoh "Racer"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 141 Times in 92 Posts
Originally Posted by JohnDThompson View Post
The upper pulley spring is the Achilles heel of the Mountech derailleur. I wonder how well it would work without the spring? The Huret Duopar, for example, manages that second articulation without the need for a spring. I may have to scrounge up a Mountech and give it a try…
Huret uses a second parallelogram for the floating cage. It relies on chain tension to move the cage up and down. Suntour uses a spring to help move the cage. Shift advantage? Tall toothed pulleys will help too.
Ferrouscious is offline
Old 10-18-20, 02:38 PM
  #7
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 130

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by plonz View Post
I have one of these awaiting overhaul. Do you actually remove the spring or just flush out the dirt?
I removed the spring, it wasn't that difficult & there was lots of gummy old grease.
thorstein is offline
Old 10-18-20, 02:45 PM
  #8
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 130

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by The Golden Boy View Post
Why?

There's 9 million and twenty seven decent derailleurs in the world,...
...If you want unique, go with an XC triple pulley- significantly more robust, it works flawlessly and it's a hit at parties.

"Hey Bob, the Vikings are looking to turn the corner at any... SAY... is that a triple pulley derailleur on you Stumpjumper?"

"Why yes it is, Phil..."

Friends don't let friends ride 1st gen Mountechs.
I mainly cleaned it out so I could continue riding while out of town, but it was cool to see the inside & how little it takes to stop the upper pulley.

I'd love to run a 3 pulley XC! Got an extra?

PS: nailed it regarding the Stump jumper Sport.
thorstein is offline
Likes For thorstein:
Old 10-18-20, 04:15 PM
  #9
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,806

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2277 Post(s)
Liked 787 Times in 481 Posts
Originally Posted by thorstein View Post
I'd love to run a 3 pulley XC! Got an extra?

PS: nailed it regarding the Stump jumper Sport.
I'm going to hang on to mine for a while yet-

It's funny- I have an 84 Stumpjumper Sport- it came to me mostly stock from the original owner. The only thing changed out was a 1993-ish XT derailleur and an LX hub with a Weinmann rim from around 1993... that seems to suggest that the Mountech blew up and took the wheel with it in 1993.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.

Last edited by The Golden Boy; 10-19-20 at 06:07 AM.
The Golden Boy is offline
Old 03-06-21, 09:34 AM
  #10
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 130

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Finally got the rear derailer I was looking for:



Haven't had a chance to ride it yet because of the Tomaselli brakes - they used motorcycle cables & housing. I'm not sure if the smaller cable end will work in the larger brake or if I have to get actual motorcycle cables & housing.

Last edited by thorstein; 03-07-21 at 09:43 AM.
thorstein is offline
Likes For thorstein:
Old 03-06-21, 10:50 PM
  #11
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,806

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2277 Post(s)
Liked 787 Times in 481 Posts
Originally Posted by thorstein View Post
finally got the read derailer i was looking for:
score!!!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 03-07-21, 08:40 AM
  #12
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,976

Bikes: More than I care to admit

Mentioned: 124 Post(s)
Tagged: 0 Thread(s)
Quoted: 931 Post(s)
Liked 387 Times in 235 Posts
My ‘83 Stumpjumper Sport still sports a first gen Mountech. When I purchased it, I overhauled it. That was over a thousand miles ago. It’s now a dingle-speed so I still have Mountech mounted. Why? Men like me like to live on the edge!
mountaindave is online now
Old 03-07-21, 09:47 AM
  #13
thorstein
Senior Member
Thread Starter

thorstein's Avatar

Join Date: May 2017
Location: Saint Paul, MN
Posts: 130

Bikes: 1969 Raleigh Twenty, 1975 Raleigh DL-1, 1984 Specialized Stumpjumper Sport, 1989 Schwinn Voyageur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 33 Times in 25 Posts
Originally Posted by mountaindave View Post
My ‘83 Stumpjumper Sport still sports a first gen Mountech. When I purchased it, I overhauled it. That was over a thousand miles ago. It’s now a dingle-speed so I still have Mountech mounted. Why? Men like me like to live on the edge!
Nice! But, all the same, I'll leave the edge life for you!

I hope you have a backup plan. When mine went out, it was like a flip was switched. It was working fine when I stopped to look around, but when I hopped back on, I heard a kind of grinding sound. It took me a little bit to figure out it was the chain sliding over the stuck pulley.
thorstein is offline
Old 03-07-21, 03:18 PM
  #14
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,976

Bikes: More than I care to admit

Mentioned: 124 Post(s)
Tagged: 0 Thread(s)
Quoted: 931 Post(s)
Liked 387 Times in 235 Posts
Originally Posted by thorstein View Post
Nice! But, all the same, I'll leave the edge life for you!

I hope you have a backup plan.
Indeed. Worst case scenario I shorten the chain and turn it into a true single speed.

Love the triple pulley!
mountaindave is online now
Likes For mountaindave:
Old 03-07-21, 03:21 PM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,405

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 638 Post(s)
Liked 770 Times in 435 Posts
Did the Shimano Superplate ever do this like the Mountech? Same design, with concentric pulley and the extra pivot arm. I toured for some months on a Superplate and never had a problem, but now I'm wondering if I was just lucky.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 03-07-21, 05:04 PM
  #16
Schreck83
Senior Member

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 254
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 90 Times in 54 Posts
Not familiar with the Superplate, You can see the abnormally huge rubbing surfaces on the upper pulley below:
