Convert a 7 Spd STX free hub to 8spd

Picked up a 90's Giant CFR Three carbon fiber road bike. Came with the OE STX drivetrain. Original except Shimano 8 speed STI Flightdeck shifters have been substituted for the original 7 speed shifters. The rear wheel is still the 7 speed STX hub and cassette. The 8 spd Flightdeck setup shifts well with an 8 spd rear wheel from another road bike. I'd like to switch the STX OE freehub out for an 8 Spd freehub.I have a possible 8 Spd donor hub. It's a Shimano FH-RM30 made in China 8 speed hub. I'm wondering if that 8 speed freehub is compatible with the 90's STX rear hub.
merlinrkd is offline
Old 11-26-20, 06:36 PM
  #2
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,778

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1371 Post(s)
Liked 603 Times in 451 Posts
NO!
The spline pattern between the FH Body & Hub is totally different.
The RM-30 in general is crap. I built a couple wheels using it and it tends to eat DS cones.
These cones have an "oxide" finish. Not polished like better quality hubs.
IF you provide the exact model# I may have that pdf.
Attached Files
File Type: pdf
FH-RM30-8S.PDF (299.2 KB, 5 views)

Last edited by Bill Kapaun; 11-26-20 at 06:42 PM.
Bill Kapaun is offline
Likes For Bill Kapaun:
Old 11-26-20, 09:48 PM
  #3
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,850

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1146 Post(s)
Liked 997 Times in 647 Posts
I'm no expert on swapping freehub bodies, but I've done a few.

I know of 3 three late 80's and 90's freehub body attach styles (excluding Dura Ace). I've seen a flush, a shallow, and a deep shoulder recess. You need to remove your STX freehub body and take a look at the freehub shoulder and freehub body.

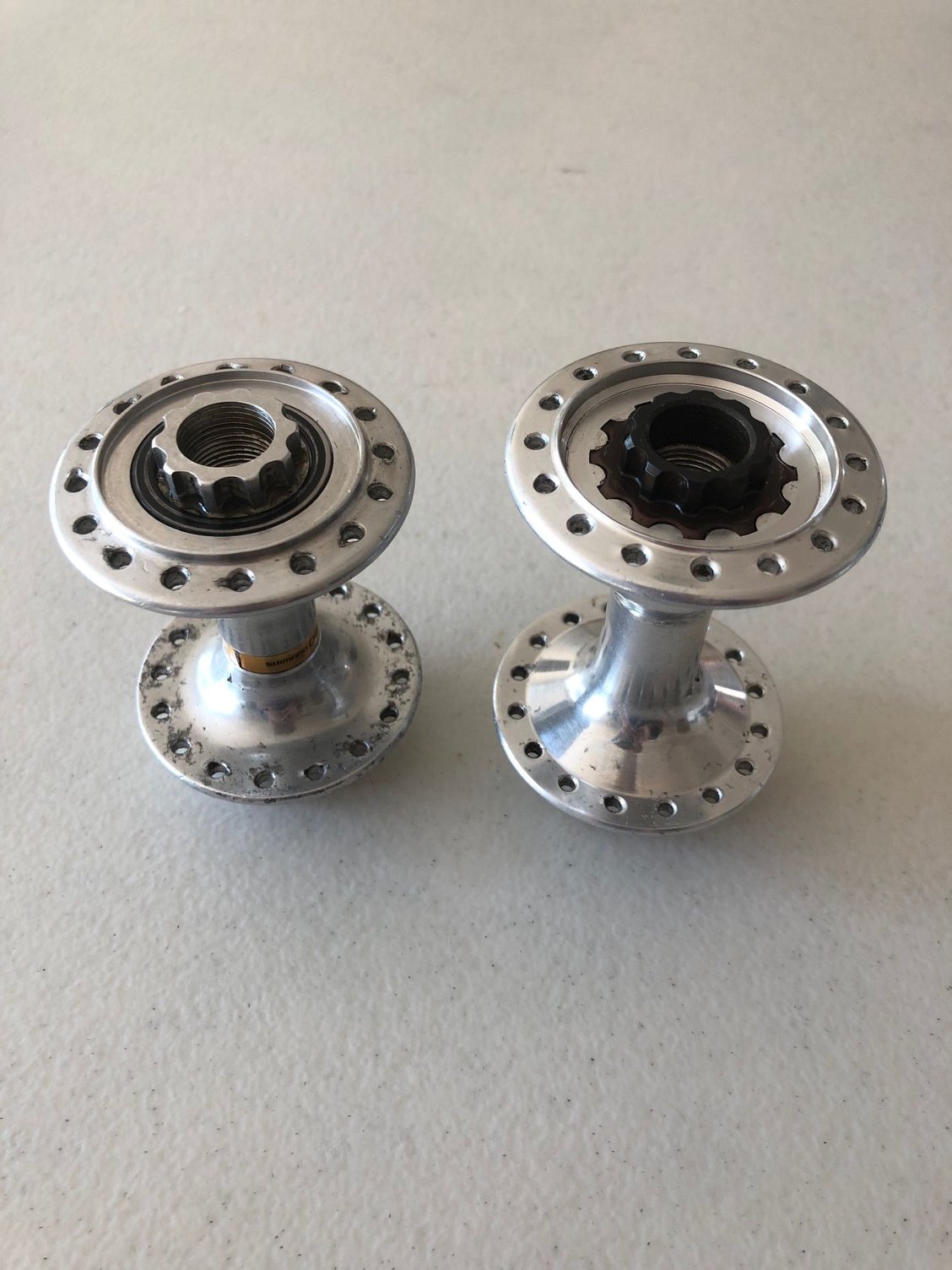

Here is a pic of the shallow and deep shoulder recess. The left is a shallow with a square shoulder edge. The right is a a deep with a beveled edge. I've swapped 7 to 8 and 9 to 7. You do need to find the correct DS cones for the freehub body.

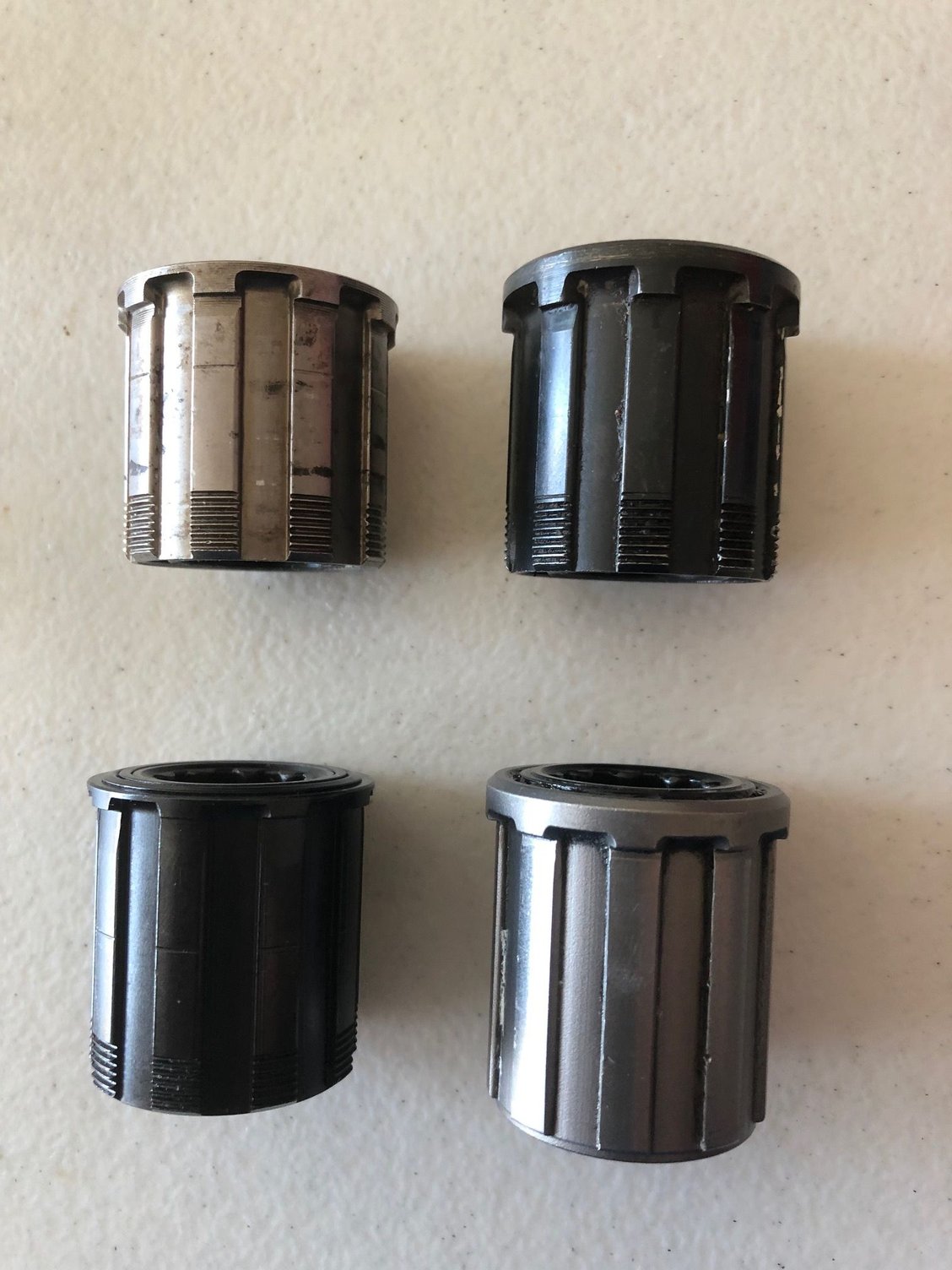

Shallow (square) and deep (beveled) freehub bodies...



John
70sSanO is offline
Old 11-26-20, 10:17 PM
  #4
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,778

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1371 Post(s)
Liked 603 Times in 451 Posts
Originally Posted by 70sSanO View Post
I'm no expert on swapping freehub bodies, but I've done a few.

I know of 3 three late 80's and 90's freehub body attach styles (excluding Dura Ace). I've seen a flush, a shallow, and a deep shoulder recess. You need to remove your STX freehub body and take a look at the freehub shoulder and freehub body.

Here is a pic of the shallow and deep shoulder recess. The left is a shallow with a square shoulder edge. The right is a a deep with a beveled edge. I've swapped 7 to 8 and 9 to 7. You do need to find the correct DS cones for the freehub body.

John
And note the RM-30 is very different from those shown above.
Bill Kapaun is offline
Old 11-26-20, 10:46 PM
  #5
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 776
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 452 Post(s)
Liked 323 Times in 201 Posts
Donít you mean RSX? That is the 7 speed road groupset. The STX is a mountain bike groupset.
Why donít you replace the incompatible 8 speed brifters with 7 speed brifters?
icemilkcoffee is offline
Old 11-26-20, 11:56 PM
  #6
merlinrkd
Senior Member
Thread Starter

Join Date: Jul 2019
Location: Yuba City CA
Posts: 66

Bikes: BMZ Performance Touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 9 Times in 6 Posts
I'm sure ur right on the group type. My garage lighting isn't the best. My only STI 7 speed shifters are 105. They are new almost new. A little too nice for this bike. Thanks for the comment.
merlinrkd is offline
Old 11-27-20, 12:01 AM
  #7
merlinrkd
Senior Member
Thread Starter

Join Date: Jul 2019
Location: Yuba City CA
Posts: 66

Bikes: BMZ Performance Touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 9 Times in 6 Posts
Thanks Bill. That helps.
merlinrkd is offline
Old 11-27-20, 02:52 AM
  #8
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 776
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 452 Post(s)
Liked 323 Times in 201 Posts
Originally Posted by merlinrkd View Post
I'm sure ur right on the group type. My garage lighting isn't the best. My only STI 7 speed shifters are 105. They are new almost new. A little too nice for this bike. Thanks for the comment.
The 105 shifters are 8 speed shifters. They don't work well with the 7 speed cassette. You will need to look for RSX 7 speed shifters on Ebay. Alternatively, if you are wary of old parts, you can buy new Micronew 7 speed shifters or Shimano Tourney 7 speed shifters
icemilkcoffee is offline
Old 11-27-20, 08:55 AM
  #9
merlinrkd
Senior Member
Thread Starter

Join Date: Jul 2019
Location: Yuba City CA
Posts: 66

Bikes: BMZ Performance Touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 9 Times in 6 Posts
The bike is solid but cosmetically a little rough. It originally had 7 dt shifters. The NOS 105 brifters have been sitting in my drawer since the 90's and are AFAIK 7 speed. Maybe I need to look at them again. My simplest is to use some 8 speed wheels. Don't want to spend on this project. Thx
merlinrkd is offline
Old 11-27-20, 09:38 AM
  #10
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,910

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1691 Post(s)
Likes: 0
Liked 572 Times in 422 Posts
Originally Posted by merlinrkd View Post
The NOS 105 brifters have been sitting in my drawer since the 90's and are AFAIK 7 speed. Maybe I need to look at them again.
I don't think those 105 brifters are 7-speed as I'm pretty sure the first 105 STIs were 8-speed. I built up a 1996 Litespeed Catalyst with a 105 triple STI group and they were 8-speed.
HillRider is offline
Old 11-27-20, 10:15 AM
  #11
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,850

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1146 Post(s)
Liked 997 Times in 647 Posts
If you have NOS 90’s brifters, you need to know they are a highly sought after component. But how you use them is up to you.

John
70sSanO is offline
Old 11-27-20, 10:51 AM
  #12
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 356

Bikes: 84 Pinnarello Treviso NR, 72 PX-10, 91 Trek 930, 72 Fuji Finest, 90 Trek 750

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 71 Times in 53 Posts

The cheap 8sp RM-30 is on the right; on left is a 7 eg LX or 105 etc.
__________________
Last new bike 1991
dmark is offline
Likes For dmark:
Old 11-27-20, 11:06 AM
  #13
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 776
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 452 Post(s)
Liked 323 Times in 201 Posts
Originally Posted by merlinrkd View Post
My simplest is to use some 8 speed wheels. Don't want to spend on this project. Thx
The cheapest thing to do would be to take that 8 speed cassette, leave out one cog, and install it onto the existing 7 speed hub on that bike. Now you can proceed to use that 8 speed 105 shifter. You will only have 7 speeds but the spacing will be correct to use with that 8 speed shifter.
icemilkcoffee is offline
Old 11-27-20, 11:10 AM
  #14
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 356

Bikes: 84 Pinnarello Treviso NR, 72 PX-10, 91 Trek 930, 72 Fuji Finest, 90 Trek 750

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 71 Times in 53 Posts
You can find an appropriate 8sp fh body but best price I see is $25-$30. I accidentally bought the new RM-30 on $10 price without looking closely.
__________________
Last new bike 1991
dmark is offline
Old 11-27-20, 11:33 AM
  #15
merlinrkd
Senior Member
Thread Starter

Join Date: Jul 2019
Location: Yuba City CA
Posts: 66

Bikes: BMZ Performance Touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 9 Times in 6 Posts
Thanks for the tip. Yeah, I've seen them with a high asking price.
merlinrkd is offline
Old 11-27-20, 11:35 AM
  #16
merlinrkd
Senior Member
Thread Starter

Join Date: Jul 2019
Location: Yuba City CA
Posts: 66

Bikes: BMZ Performance Touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 9 Times in 6 Posts
I should look at the cassette that came with that bike. It did seem to shift OK on my test ride around the block. Maybe that mod was already done. . Thx
merlinrkd is offline
Old 12-10-20, 09:00 AM
  #17
merlinrkd
Senior Member
Thread Starter

Join Date: Jul 2019
Location: Yuba City CA
Posts: 66

Bikes: BMZ Performance Touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 9 Times in 6 Posts
Followup: I took your suggestion. I pulled out an 8 speed mountain cassette and removed the 32 tooth sprocket. Put the remaining 7 sprockets on the hub. Boy do those Flightdeck shifters do smooth job of shifting. Thanks to all
