Drops to Flat Bar conversion - Progress!(post#17) Completed!(post#22)

Hello,
I'm ready to convert my 2001 Giant OCR3 to flat bar but have a few questions re what components I'll need.
This bike has not ridden for a few years now because I've found more comfortable bikes to ride. I think by converting it to Flat Bar it will be easier on this Old Phart's body and I can add it back into rotation again.

- The handle bar should be a no brainer. Just needs to fit the inside-diameter of the existing stem and will probably get one with a slight riser.
- I'll need flat bar shifters that are compatible with the front and rear 105 derailleurs that are currently shifting 3 in the front and 8 in the rear. Rapid fire indexing is the concern. May even consider Friction type.
- I'll also need brake levers that will pull the existing Tektro's properly.

Note: I have considered just running a single front chain ring to eliminate the shifter and front (derailleur) but will probably have to replace the ring to one that will prevent the chain from falling off.

What's my budget? Cheap and Cheerful

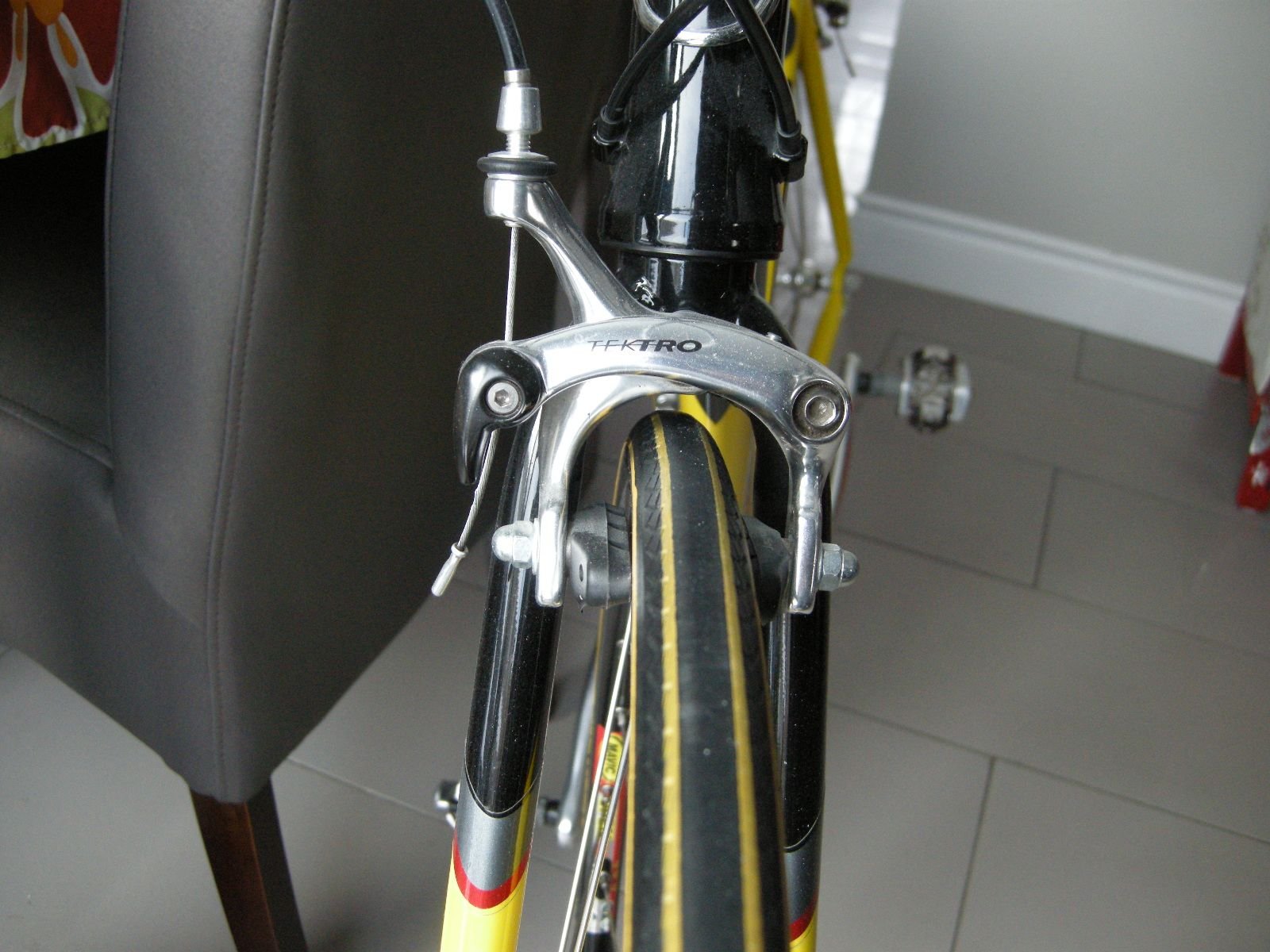

Here are pics of the bike up for conversion.











My main bikes (at the moment) are 2 Single Speeds. I was planning on buying a geared Fitness Hybrid but this conversion might fit the bill.
What are your thoughts?......and Thanks in advance

Last edited by Speedway2; 02-25-21 at 04:20 PM. Reason: spelling
Speedway2 is offline
Old 02-20-21, 12:27 PM
  #2
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,814

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2457 Post(s)
Liked 1,486 Times in 992 Posts
It sounds like you kind of figured it out. I probably would look at an alt bar of some sort. Maybe with a bit of sweep back (but not too much) and of course the proper Ergon GC1s. I would also look at at the Microshift thumbies. I think those are just tops. I would probably consider a 2x or swapping rear derailleur for something of similar quality but longer cage. Of course I would get high quality cables and housing for better shifting and braking but that could be said on any bike that could use new cables and housing.

However personally bikes like this are a bit harsh and very little tire clearance at the rear usually so not my first choice for a flat bar bike. Though at the very least you could add a Kinekt seatpost which will help a good bit.
veganbikes is offline
Old 02-20-21, 01:06 PM
  #3
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 15,169

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3011 Post(s)
Liked 1,335 Times in 934 Posts
I agree with the comment about the rather restricted tire clearances. I suspect 25mm is the widest (without actual try and see efforts being done) that will fit and retain some clearance.

I'll add that many times when one of our customers do this bar change they discover they want to move their seat more rearward and often want a slightly wider one too.

AS to cost range- from zero (if you have a stash or access to a stash) to a couple of hundred+ $. It all depends. This is where shopping a LBS's new take offs can help reduce some of the cost. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 02-20-21, 01:46 PM
  #4
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Andrew... I've mounted Continental 25's on (before) but the clearance to the seat tube was barely enough to slide a dime thru....so they were swapped back to the OEM 23's. I hear you about the seat. I always found the current seat to be very hard. Even the paper thin seat on my Langster feels better.

Yup....this bike is harsh in its current config and I figured it would be even more so set up with Flat bar ergos but I'm willing to give it a go.

I've read good things about the Microshift thingies but they're kinda pricey. Unfortunately, the LBS are curb-side pickup only due to the beer virus. Even trying to get thru to ask questions and source parts is challenging.

veganbikes.....I thought about going 2x. Actually considered grinding the teeth off the "big sprocket" and leaving it on as a chain guide/guard.
Speedway2 is offline
Old 02-20-21, 02:08 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,919

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1706 Post(s)
Liked 1,352 Times in 874 Posts
https://bike.shimano.com/en-NZ/produ...SL-2403-L.html

https://www.tektro.com/products.php?p=74
dedhed is offline
Old 02-20-21, 02:18 PM
  #6
70sSanO
Senior Member

70sSanO's Avatar

Join Date: Feb 2015
Location: Mission Viejo
Posts: 3,828

Bikes: 1986 Cannondale SR400 (Flat bar commuter), 1988 Cannondale Criterium XTR, 1992 Serotta T-Max, 1995 Trek 970

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Liked 972 Times in 641 Posts
The handlebar is not quite a no brainer. I went from the road bar a 5cm below the saddle to 2cm above. Set the bike on a trainer and see where that upright but still sporty location for the bars hit.

My old bike had a quill stem and I needed an extender and a riser bar. Of course there are risers that can rival the ones on old Stingrays, but that wasn’t the look I wanted.

John
70sSanO is offline
Old 02-20-21, 02:55 PM
  #7
Camilo
Senior Member

Join Date: Apr 2007
Posts: 5,020
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 423 Post(s)
Liked 208 Times in 139 Posts
Originally Posted by Speedway2 View Post
...
- The handle bar should be a no brainer. Just needs to fit the inside-diameter of the existing stem and will probably get one with a slight riser....
Don't worry too much about matching the handlebar diameter to the stem. They make inexpensive shims that work very well. I've used 26.0 bars with 31.8 stems many times. There are shims for 25.4 too.

Originally Posted by veganbikes View Post
...
However personally bikes like this are a bit harsh and very little tire clearance at the rear usually so not my first choice for a flat bar bike. ...
Originally Posted by Speedway2 View Post
Andrew... I've mounted Continental 25's on (before) but the clearance to the seat tube was barely enough to slide a dime thru....so they were swapped back to the OEM 23's.....
Your experience about tire clearance is definitive of course. Before I read it I was going to disagree with veganbikes's thought about that because I had a different experience. We had an ~'06 OCR bike in our family years ago and I know for sure I easily put Gatorskin 28's on it, and it was ridden that way until I sold it (and removed and kept the 28s). At the time I thought it had clearance for 30's. It's too bad your frame doesn't have that clearance.
Camilo is offline
Old 02-20-21, 03:00 PM
  #8
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
^^^^that's good information folks! Appreciate the experience and feedback.....
Speedway2 is offline
Old 02-20-21, 03:00 PM
  #9
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 560
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Likes: 0
Liked 128 Times in 102 Posts
the R2000 flat bar Claris brake levers that match the shifters linked above have adjustable cable pull ratio so you can pair them with caliper brakes like the ones you have
AeroGut is offline
Old 02-20-21, 04:20 PM
  #10
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,565

Bikes: Trek Domane SL7, Rivendell Sam Hillborne, Winter Cycles flat bar road bike, Brompton S/M3L (modified)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 597 Post(s)
Liked 327 Times in 210 Posts
I have done quite a few flat bar setups for myself and I recommend a longer stem when going this route.

If you are looking for a flat Easton straight bar, longer stem 120mm, Shimano BL-R550 brake levers and Ergon grips, I have some extra's I can sell you cheap. I live in Toronto, so not far from you. All you would need is some shifters. I have experienced trying to purchase bike parts in this city during the pandemic and it can be difficult.

What I like about conversions is, if you dislike it you can always change everything back.
blakcloud is offline
Old 02-20-21, 04:31 PM
  #11
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Originally Posted by blakcloud View Post
I have done quite a few flat bar setups for myself and I recommend a longer stem when going this route.

If you are looking for a flat Easton straight bar, longer stem 120mm, Shimano BL-R550 brake levers and Ergon grips, I have some extra's I can sell you cheap. I live in Toronto, so not far from you. All you would need is some shifters. I have experienced trying to purchase bike parts in this city during the pandemic and it can be difficult.

What I like about conversions is, if you dislike it you can always change everything back.
blakcloud...when you say you have "extras I can sell you cheap", what do you mean by cheap
I'm having a heck of a time sourcing compatible shifters without having to change/swap other components to make it all work. Even trying to find new cables and housing is a challenge. Perhaps I can check with MEC.

BTW....I'm in the Bathurst/Steeles area so close by.
Speedway2 is offline
Old 02-20-21, 04:38 PM
  #12
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,814

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2457 Post(s)
Liked 1,486 Times in 992 Posts
Originally Posted by Camilo View Post
Don't worry too much about matching the handlebar diameter to the stem. They make inexpensive shims that work very well. I've used 26.0 bars with 31.8 stems many times. There are shims for 25.4 too.





Your experience about tire clearance is definitive of course. Before I read it I was going to disagree with veganbikes's thought about that because I had a different experience. We had an ~'06 OCR bike in our family years ago and I know for sure I easily put Gatorskin 28's on it, and it was ridden that way until I sold it (and removed and kept the 28s). At the time I thought it had clearance for 30's. It's too bad your frame doesn't have that clearance.
Some bikes you can get clearance but a lot of bikes at the rear are fussy and don't like wide tires. Keep in mind 28 back in the day was almost a fat tire on a road bike.
veganbikes is offline
Likes For veganbikes:
Old 02-20-21, 04:42 PM
  #13
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,565

Bikes: Trek Domane SL7, Rivendell Sam Hillborne, Winter Cycles flat bar road bike, Brompton S/M3L (modified)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 597 Post(s)
Liked 327 Times in 210 Posts
So that we don't break any rules here on Bike Forums and turn this into a buy and sell board, I will send you PM.

For cables and housing Urbane Cycles on College has been my go to. MEC is changing ownership and they have stock problems. Also Bike Depot is another good shop for cables and housing and they have two locations.

Your most expensive part is the shifters but that isn't insurmountable by looking for used stuff.
blakcloud is offline
Old 02-20-21, 04:44 PM
  #14
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
So I went to "Jeff's" online store and found this. Can anyone confirm if they will work?

Amazon Amazon

Speedway2 is offline
Old 02-20-21, 07:59 PM
  #15
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Originally Posted by blakcloud View Post
So that we don't break any rules here on Bike Forums and turn this into a buy and sell board, I will send you PM.

For cables and housing Urbane Cycles on College has been my go to. MEC is changing ownership and they have stock problems. Also Bike Depot is another good shop for cables and housing and they have two locations.

Your most expensive part is the shifters but that isn't insurmountable by looking for used stuff.
blakcloud....can't seem to respond to your PMs.
Speedway2 is offline
Old 02-21-21, 03:52 PM
  #16
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Quick update....I picked up the "Goods" from blakcloud. Great person to deal with and everything was exactly as described. Could not be happier.

I just ordered the Microshift thumb shifters from the LBS.

Looking forward to starting the conversion and will be posting the results.......thanks everyone for your input.
Speedway2 is offline
Old 02-22-21, 07:12 AM
  #17
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Progress pics.....
Parts installed: Easton 22" straight bar, ARX 3T 120mm stem, Shimano BL-R550 brake levers and Ergon grips.
Waiting for the Microshift Mezzo's and a pair of brake cables. Very happy with the results so far!







Last edited by Speedway2; 02-22-21 at 07:18 AM.
Speedway2 is offline
Old 02-23-21, 09:04 PM
  #18
blakcloud
Senior Member

blakcloud's Avatar

Join Date: Aug 2007
Location: Toronto, Ontario
Posts: 2,565

Bikes: Trek Domane SL7, Rivendell Sam Hillborne, Winter Cycles flat bar road bike, Brompton S/M3L (modified)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 597 Post(s)
Liked 327 Times in 210 Posts
So far it looks good.

I was just watching a Park Tool YouTube video and they had a neat cosmetic trick to help the threadless stem conversion look better. Have a look at this video at 6:20. A few headset spacers will make it look a little more finished.

blakcloud is offline
Old 02-25-21, 05:17 AM
  #19
Outrider1
Senior Member

Outrider1's Avatar

Join Date: Jun 2020
Location: Central Florida
Posts: 191

Bikes: Trek Emonda ALR 5, Motobecane Cafe Disc Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 112 Times in 53 Posts
Nicely done! A well thought through makeover.
Outrider1 is offline
Old 02-25-21, 09:16 AM
  #20
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Originally Posted by blakcloud View Post
So far it looks good.

I was just watching a Park Tool YouTube video and they had a neat cosmetic trick to help the threadless stem conversion look better. Have a look at this video at 6:20. A few headset spacers will make it look a little more finished.

https://youtu.be/Ey_kiNivXGM?t=380
Thanks blakcloud. That's a great tip! I think I have a few spacers kicking around.....if I can find them
Speedway2 is offline
Old 02-25-21, 09:20 AM
  #21
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Originally Posted by Outrider1 View Post
Nicely done! A well thought through makeover.
Thanks...but the credit goes to blakcloud as he supplied the bars, stem, grips and levers.
I also purchased a set of Microshit Mezzo shifters (that he suggested) from a LBS. They are now installed.

Just waiting for a pair of teflon brake cables to complete the conversion and for Spring to arrive....
Speedway2 is offline
Old 02-25-21, 04:19 PM
  #22
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
All done! Installed the last piece of the conversion today(teflon coated brake cables). First time trying these and so far they seem pretty slick and smooth.
Looking forward to the first ride once the roads are snow/salt free....




Last edited by Speedway2; 02-25-21 at 04:23 PM.
Speedway2 is offline
Likes For Speedway2:
Old 02-25-21, 04:38 PM
  #23
veganbikes
Clark W. Griswold

Join Date: Mar 2014
Location: ,location, location
Posts: 8,814

Bikes: Foundry Chilkoot Ti W/Ultegra Di2, Salsa Timberjack Ti, Cinelli Mash Work RandoCross Fun Time Machine, 1x9 XT Parts Hybrid, Co-Motion Cascadia, Specialized Langster, Phil Wood Apple VeloXS Frame (w/DA 7400), Cilo Road Frame, Proteus frame, Ti 26 MTB

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 2457 Post(s)
Liked 1,486 Times in 992 Posts
You looking fine. Just FYI for best results use uncoated polished cables that coating can come off and gum things up a bit but don't toss them, use them they will be fine for now!
veganbikes is offline
Likes For veganbikes:
Old 02-25-21, 07:53 PM
  #24
Speedway2
Senior Member
Thread Starter

Speedway2's Avatar

Join Date: Oct 2018
Location: Thornhill, Canada
Posts: 592

Bikes: Specialized Langster, Giant OCR, Marin Muirwoods, Felt Cruiser. Globe Roll2, VROD:)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 280 Times in 179 Posts
Originally Posted by veganbikes View Post
You looking fine. Just FYI for best results use uncoated polished cables that coating can come off and gum things up a bit but don't toss them, use them they will be fine for now!
Thanks for the tip veganbikes....always appreciate your feed back.
Speedway2 is offline
Likes For Speedway2:
Old 02-25-21, 09:58 PM
  #25
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,709

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 418 Times in 253 Posts
I recently did something similar to my Pro_tour.


Before

bwilli88 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
