Polished Raw Steel Frame - Any Experiences?

Hi there,

I am thinking of stripping a steel frame of the paint, polishing it and clear-coating it.
Has anyone done this already? How did it turn out? Can you see any differences in the metal around the lugs where the steel got heated during the brazing?
Thank you!

Cheers
Nuovo Record is offline
Old 06-06-21, 07:18 PM
  #2
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,920

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1131 Post(s)
Likes: 0
Liked 968 Times in 587 Posts
Though I have never done this, I have seen pictures. Those pictures did little to impress me. That said, go for it and show us what results you get. Who knows, it might look good.

As for brazed joints. It is likely that the brass will be visible.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 06-06-21, 07:23 PM
  #3
busdriver1959
Senior Member

Join Date: Feb 2011
Posts: 801
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 7 Times in 3 Posts
It’ll look ok for a year or so and then moisture will get under the clear and create rust “spiders” all over the frame. It WILL happen.
busdriver1959 is offline
Old 06-07-21, 05:52 AM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,835

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 1,395 Times in 866 Posts
As @busdriver1959 notes, clear coat is not effective at preventing rust. For that, you need a primer coat.

At Trek, we would clear coat bare steel frames as display items for bike shows. It was only a matter of time before rust would appear. And this was using high-quality preparation and baked Imron® clear coat, not a rattle-can job.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-07-21, 06:23 AM
  #5
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,281

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental and Cannondale M400

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 441 Post(s)
Liked 345 Times in 266 Posts
I have seen somewhere that the owner used only an application of oil about once a month. I would guess that if you had a nice dry place to store the bike, never rode in the rain and was diligent about keeping the bike cleaned and oiled, that might be a good way to go. This is because you always have access to the steel surface to sand or Scotchbright it if and when needed. Wax might also work.

I used to oil the surfaces of the ground surfaces of thing like bandsaw tables and table saw tables. I now use wax.
Velo Mule is online now
Old 06-07-21, 08:19 AM
  #6
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Soviet of Orygun or the NW Florida Redoubt
Posts: 5,065

Bikes: Still have a few left!

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Liked 179 Times in 105 Posts
Something else you might try is Blueing followed with surface oil. Have had good results on Chrome Vanadium knife blades, I'll see if I can find a picture. Don
ollo_ollo is offline
Likes For ollo_ollo:
Old 06-07-21, 08:21 AM
  #7
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 502

Bikes: '83 YKonno Allez, '82 Ron Cooper, '87 Ciocc Designer 84, '95 Trek Saturn, '86 Tommasini Racing, '98 S-Works Hardtail Mtn., Klein Quantum Singlespeed

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 101 Times in 53 Posts
Originally Posted by busdriver1959 View Post
It’ll look ok for a year or so and then moisture will get under the clear and create rust “spiders” all over the frame. It WILL happen.
That was my experience. Exactly.

Dean
__________________
Roll Me Up and Smoke Me When I Die
Dean51 is offline
Old 06-07-21, 08:38 AM
  #8
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,108

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1096 Post(s)
Liked 800 Times in 493 Posts
I have a couple of frames that are stripped and just apply WD-40 as needed. This question comes up at least once a year if not more. Google search is your friend.
1983 Trek 610 60 cm (24&quot on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 06-07-21, 08:49 AM
  #9
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 1,050

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '07 Stumpjumper

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 221 Times in 134 Posts
Originally Posted by ollo_ollo View Post
Something else you might try is Blueing followed with surface oil. Have had good results on Chrome Vanadium knife blades, I'll see if I can find a picture. Don
This is what I have seen done. The blueing is a cool effect too and I think provides a bit of protection. I have seen people clear coat over the blueing later (seems) like it may have issues with adherence but it came out well. That said I haven't heard of any long term lasting of any sort.
mechanicmatt is offline
Old 06-07-21, 08:50 AM
  #10
brian3069
Senior Member

brian3069's Avatar

Join Date: Jun 2009
Posts: 1,850

Bikes: Raleigh Supercourse

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked 124 Times in 75 Posts
I wonder if Sharkhide metal protestant would work.

https://sharkhidestore.com/products/...num-protectant
brian3069 is offline
Old 06-07-21, 12:36 PM
  #11
Nuovo Record
Senior Member
Thread Starter

Join Date: Apr 2019
Posts: 131

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike from unknown maker (Super Record Titanium)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
"Providing protection against stains, oxidation, acid-rain, weathering, salt spray, and pitting. The results are amazing, apply a couple good coats and enjoy years of protection, along with ease of cleanup. This product is the cleaning secret you've been waiting to find."

Sounds good. Have you tried it?
Nuovo Record is offline
Old 06-07-21, 01:19 PM
  #12
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,656
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 510 Post(s)
Liked 292 Times in 196 Posts
Originally Posted by SJX426 View Post
I have a couple of frames that are stripped and just apply WD-40 as needed. This question comes up at least once a year if not more. Google search is your friend.
1983 Trek 610 60 cm (24&quot on Flickr
This looks awesome. Nice work. Did you add the downtube cable stops?
tricky is offline
Old 06-07-21, 01:34 PM
  #13
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Posts: 10,906
Mentioned: 215 Post(s)
Tagged: 0 Thread(s)
Quoted: 1827 Post(s)
Liked 1,916 Times in 749 Posts
This is what a couple coats of Krylon matte clearcoat over bare metal looks like after 3+ years:



I do an okay job cleaning the bike up after each ride, but small rust blooms still appear here and there, mainly around the BB shell from sweat. Nothing major, and for me it adds a little something, almost like managed patina - nothing to worry about here.

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/


Last edited by Drillium Dude; 06-08-21 at 01:31 PM.
Drillium Dude is offline
Likes For Drillium Dude:
Old 06-07-21, 01:46 PM
  #14
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,040
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14390 Post(s)
Liked 2,400 Times in 1,788 Posts
There is also clear powder coat.

I think for powder coating, some kind of media blasting is preferred to hand sanding. So, one would get the grey media blasting effect rather than the brushed sanding effect.
CliffordK is offline
Old 06-07-21, 02:56 PM
  #15
Nuovo Record
Senior Member
Thread Starter

Join Date: Apr 2019
Posts: 131

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike from unknown maker (Super Record Titanium)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Clear powder coat sounds good, too. Is that as good as the regular powder coats, in regard to corrosion?

(P. S.: Can that ever be removed again...?)
Nuovo Record is offline
Old 06-07-21, 03:20 PM
  #16
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,428

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 485 Post(s)
Liked 222 Times in 161 Posts
Id like to try parkerizing some time. Need some big metal tanks though.
bark_eater is offline
Old 06-07-21, 03:58 PM
  #17
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,108

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1096 Post(s)
Liked 800 Times in 493 Posts
Originally Posted by tricky View Post
This looks awesome. Nice work. Did you add the downtube cable stops?
No. I found a local guy who builds his own frames he added them, the rack bosses and the eyelet's that were drewed off.
044_PaTrek STI Cable Stop_02w on Flickr
027_Greg Taylor Brazing_closeup on Flickr
034_PaTrek Rack Boss_01 on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 06-07-21, 10:59 PM
  #18
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 1,515
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 670 Post(s)
Liked 807 Times in 441 Posts
Originally Posted by Nuovo Record View Post
Clear powder coat sounds good, too. Is that as good as the regular powder coats, in regard to corrosion?
It's porous, so rust usually forms underneath it. I say usually because there are a few examples that have stayed fairly rust free.

Originally Posted by Nuovo Record View Post
(P. S.: Can that ever be removed again...?)
Yes, powder coat can be removed.
P!N20 is offline
Old 06-08-21, 03:16 AM
  #19
geeteeiii
Senior Member

Join Date: Dec 2020
Location: Estonia
Posts: 83

Bikes: HVZ Meteor 1979, HVZ Champion 1962, HVZ SS Moskva80 1981, Dürkopp 1936

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 132 Times in 36 Posts

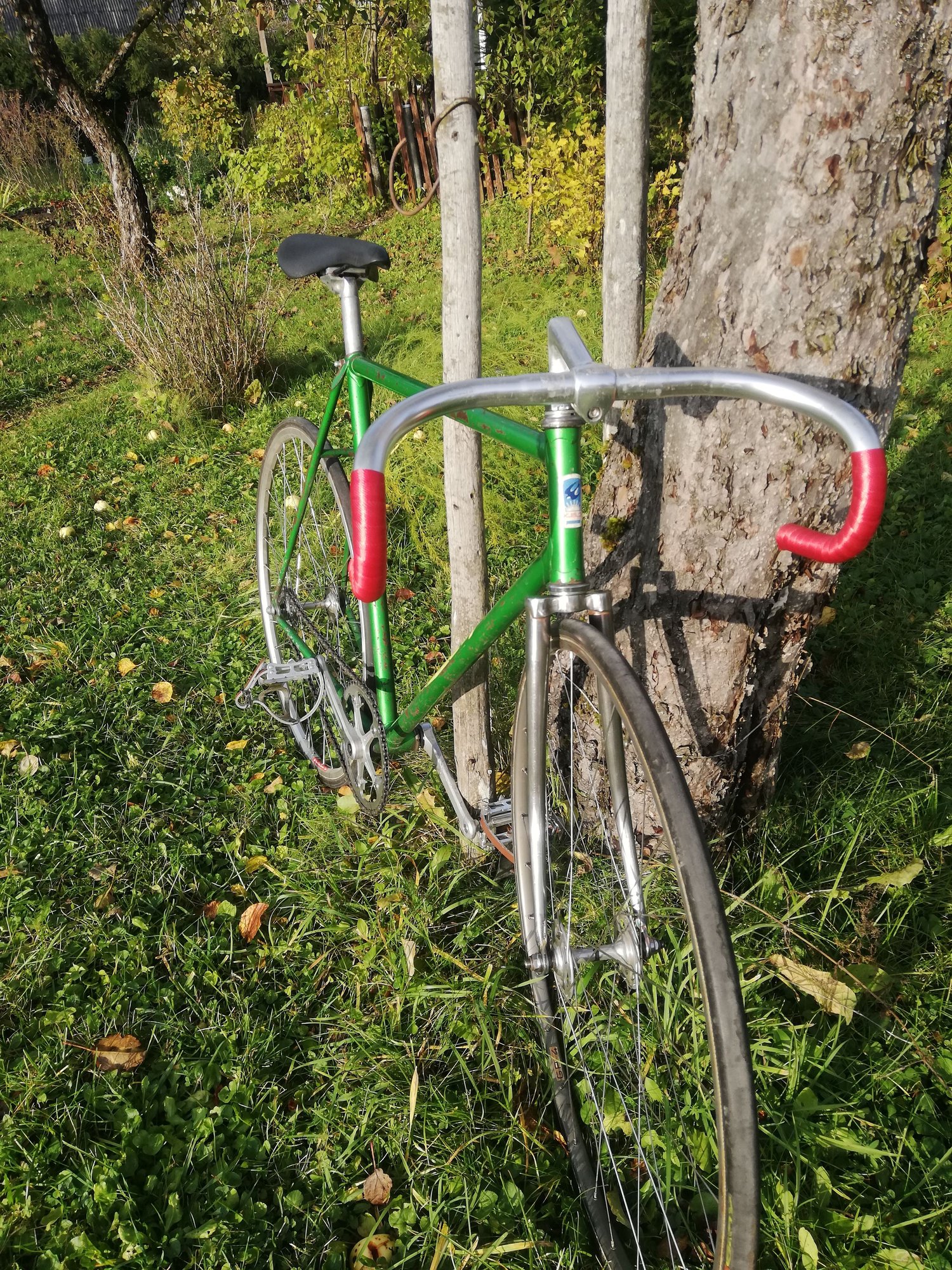

I clearcoated the polished raw steel fork on my Meteor, but i eventually did remove it to replace it with a actually chromed fork. Fork was stripped with paint stripper, rest was polished up to 600 grit with sandpaper and then with a polishing wheel on a angle grinder and green compound. Clear was your run of the mill rattlecan stuff from the auto shop. It looked pretty good in the sun and chromy, but was dark and greyish without light.


geeteeiii is offline
Likes For geeteeiii:
Old 06-08-21, 06:26 AM
  #20
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,573

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 171 Post(s)
Tagged: 0 Thread(s)
Quoted: 822 Post(s)
Liked 558 Times in 361 Posts
Clear Coating Bare Steel Frames

Paint hides a multitude of sins!

Removing the original paint on a production frame or even a respray can reveal a lot of surprises! All the worts become visable...

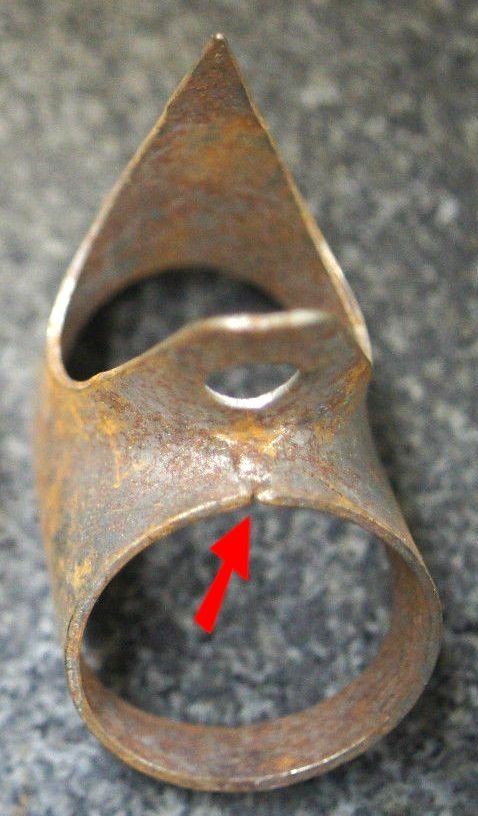

Most of the lugs used before the mid 70's were really low quality made from stamped sheet metal or drawn tubing with ugly welded seams.



Gaps in the braze along the shorelines of the lugs are usually not visible until the brazing flux is removed. The easy fix is to fill the gaps with auto body spotting paste. Same thing with scratches and dings in the tubes.

The best candidates for good looking clear coated frames are purpose built from scratch with flawless brazing and lugwork.

I've seen frames like that from Albert Eisentraut, Ed Litton, Bruce Gordon, Peter Johnson and other artisanal builders to show off the quality of their workmanship.

Back when bikes were made by blacksmiths, most were painted black! It doesn't show the dirt or flaws...
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 06-12-21 at 11:25 PM.
verktyg is online now
Old 06-08-21, 07:02 AM
  #21
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,428

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 485 Post(s)
Liked 222 Times in 161 Posts
I'm not sure this helps, but in my experience, steel with a fully polished surface has a sort of "mechanical" rust resistance. Unfortunately a polished surface is not great for coating adhesion, so that might not be a good idea under a clearcoat. I've been meaning to try wax over a phosphoric acid metal treatment on a couple bikes that get left at the beach all summer.
bark_eater is offline
Old 06-08-21, 07:09 AM
  #22
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,822 Times in 1,051 Posts
Additional reading:

https://www.bikeforums.net/classic-v...lear-coat.html
https://www.bikeforums.net/classic-v...uirements.html
https://www.bikeforums.net/classic-v...are-steel.html
https://www.bikeforums.net/classic-v...teel-trek.html
https://www.bikeforums.net/classic-v...-rust-day.html
https://www.bikeforums.net/classic-v...teel-fork.html
https://www.bikeforums.net/framebuil...are-steel.html
https://www.bikeforums.net/framebuil...are-metal.html
https://www.bikeforums.net/bicycle-m...ranks-etc.html
https://www.bikeforums.net/bicycle-m...al-polish.html

We might need a subforum for this.

-Kurt
__________________







cudak888 is offline
Old 06-12-21, 02:39 PM
  #23
Nuovo Record
Senior Member
Thread Starter

Join Date: Apr 2019
Posts: 131

Bikes: Colnago Super (panto) - Gios Professional (1st Generation C-Record) - Eddy Merckx Corsa Extra (Team USA) - Barellia Reynolds 531 - Fully chromed Columbus steel bike from unknown maker (Super Record Titanium)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
After reading some of the old posts, I am feeling that my "raw steel frame" project is becoming history.
Well, thanks to everybody who contributed!
Nuovo Record is offline
Likes For Nuovo Record:
Old 06-12-21, 06:58 PM
  #24
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,464

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 155 Times in 98 Posts
I went to an auto museum today. There was a car painted in a greyish, almost metallic grey that looked like raw steel. It even had some non-uniform characteristics which you'd expect in sheet steel. I had to get in really closely to detect it was paint and not bare sheet metal.

If you really want the look, find that paint.

The idea that you will oil the frame every month or two for the rest of your life is an absurd, unbelievable proposition. Even blued, the steel will start to rust as soon as you run thru your first puddle. The bluing will just make it harder to see the onset of rusting.
Bad Lag is offline
Old 06-12-21, 07:22 PM
  #25
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 2,355

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 212 Times in 157 Posts
I think if I went to all the trouble of polishing out a steel frame I would probably get it plated...


__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
