NDS BB Gap

Bought a new Andel Track Crankset a long while ago with a Shimano BB, just installed it. Basically I can pick between a gap on either side, should I even try to remedy it or just leave it?


Noticed the old Andel RSC'1 are a lot more narrow than the newer Andel's.
Philasteve is offline
Old 06-07-21, 07:01 PM
  #2
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Posts: 11,470

Bikes: 29 frames + 74 wheels

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 934 Post(s)
Liked 279 Times in 163 Posts
The Andel RSC1 cranks require a 103mm JIS BB, whereas the Andel Standard cranks require a 110mm JIS BB.

I don't understand that photo, because the NDS cup should be fully threaded with no flange, so that it can be adjusted.

__________________
What, Me Worry? - Alfred E. Neuman

Originally Posted by Dcv View Post
I'd like to think i have as much money as brains.
I see the light at the end of the tunnel, but the tunnel keeps getting longer - me

Last edited by TejanoTrackie; 06-07-21 at 07:58 PM.
TejanoTrackie is offline
Old 06-07-21, 09:16 PM
  #3
Broctoon
Super-duper Genius

Broctoon's Avatar

Join Date: Aug 2016
Location: Muskrat Springs, Utah
Posts: 980
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 227 Times in 138 Posts
What TT said. Usually the drive side cup bottoms out on a flange against the BB shell, and then the non-drive side stops anywhere from just proud of the shellís edge to flush with it, but there should be nothing on the outside to stop it.
Broctoon is offline
Old 06-08-21, 12:17 AM
  #4
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 970
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 1,019 Times in 448 Posts

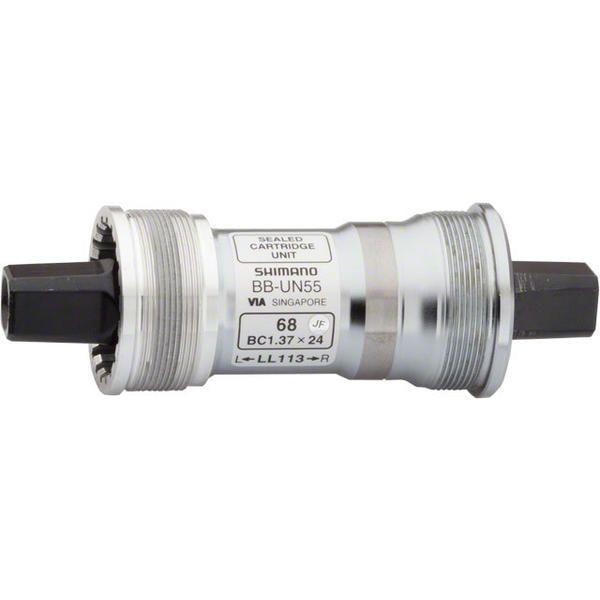

Dunno ... that looks like a UN55, which has a flange on both sides. Wouldn't be my choice, but you could probably put a spacer in there to close the gap.

Last edited by Rolla; 06-08-21 at 12:22 AM.
Rolla is offline
Old 06-08-21, 10:10 AM
  #5
Broctoon
Super-duper Genius

Broctoon's Avatar

Join Date: Aug 2016
Location: Muskrat Springs, Utah
Posts: 980
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 227 Times in 138 Posts
Originally Posted by Rolla View Post
Dunno ... that looks like a UN55, which has a flange on both sides. Wouldn't be my choice, but you could probably put a spacer in there to close the gap.
Hey, youíre right. Iíve even used the UN-55, but forgot thatís how it looks. Maybe I was thinking of UN-26, which is very similar but with a plastic ND side cup. Iím sure it has no flange.

OP, I think it shouldnít be a problem, assuming the inner surface is pressing against the cartridge body. Not sure why they put that flange on the ND side. There must be a reason, but it might not be an important one in your application.
Broctoon is offline
Old 06-08-21, 11:45 AM
  #6
Philasteve
Senior Member
Thread Starter

Philasteve's Avatar

Join Date: Apr 2010
Location: Philadelphia
Posts: 1,449

Bikes: Surly CreamRoller. 98 Giant Rincon. SE UVT

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 12 Times in 9 Posts
Originally Posted by Rolla View Post
Dunno ... that looks like a UN55, which has a flange on both sides. Wouldn't be my choice, but you could probably put a spacer in there to close the gap.

Not sure why they won't play nice together. Does anyone have a suggestion for a different BB? I'm about to just grab this and call it a day. https://www.retro-gression.com/colle...14086513262653

Last edited by Philasteve; 06-08-21 at 02:53 PM.
Philasteve is offline
Old 06-08-21, 01:01 PM
  #7
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 970
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 1,019 Times in 448 Posts
Originally Posted by Philasteve View Post
Does anyone have a suggestion for a different BB? =
I'm a fan of the Velo Orange bottom brackets -- the 110 is even in stock rn.
Rolla is offline
Likes For Rolla:
Old 06-08-21, 02:27 PM
  #8
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Posts: 11,470

Bikes: 29 frames + 74 wheels

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 934 Post(s)
Liked 279 Times in 163 Posts
Originally Posted by Philasteve View Post
Not sure why they it won't play nice together. Does anyone have a suggestion for a different BB? I'm about to just grab this and call it a day. https://www.retro-gression.com/colle...14086513262653
That's an excellent choice, very good quality at a very reasonable price. I was going to suggest the IRD QB-55 that is the same price but lighter weight, but unfortunately it is out of stock at RG.

The reason the Shimano BB-UN55 won't work with your frame, is that it expects the frame's BB shell to be exactly 68mm wide, and yours must be just a tiny bit less, resulting in the gap. It's really a very stupid design, and I think you are wise to get something else.
__________________
What, Me Worry? - Alfred E. Neuman

Originally Posted by Dcv View Post
I'd like to think i have as much money as brains.
I see the light at the end of the tunnel, but the tunnel keeps getting longer - me
TejanoTrackie is offline
Likes For TejanoTrackie:
Old 06-08-21, 02:42 PM
  #9
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 22,835

Bikes: Several, mostly not name brands.

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 1,395 Times in 866 Posts
Originally Posted by Rolla View Post
Wouldn't be my choice, but you could probably put a spacer in there to close the gap.
Originally Posted by TejanoTrackie View Post
The reason the Shimano BB-UN55 won't work with your frame, is that it expects the frame's BB shell to be exactly 68mm wide, and yours must be just a tiny bit less, resulting in the gap. It's really a very stupid design, and I think you are wise to get something else.
There's no reason why the OP couldn't put a spacer under the flange. It's on the NDS, so the chainline isn't affected.
JohnDThompson is offline
Likes For JohnDThompson:
Old 06-08-21, 02:52 PM
  #10
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Posts: 11,470

Bikes: 29 frames + 74 wheels

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 934 Post(s)
Liked 279 Times in 163 Posts
Originally Posted by JohnDThompson View Post
There's no reason why the OP couldn't put a spacer under the flange. It's on the NDS, so the chainline isn't affected.
Yes, but if the spacer is too thick, then the NDS cup won't fit snug against the BB cartridge, which can lead to play and creaking. I still say it's a stupid design, and the OP is better off getting something else that isn't a hassle.
__________________
What, Me Worry? - Alfred E. Neuman

Originally Posted by Dcv View Post
I'd like to think i have as much money as brains.
I see the light at the end of the tunnel, but the tunnel keeps getting longer - me
TejanoTrackie is offline
Likes For TejanoTrackie:
Old 06-08-21, 05:02 PM
  #11
Philasteve
Senior Member
Thread Starter

Philasteve's Avatar

Join Date: Apr 2010
Location: Philadelphia
Posts: 1,449

Bikes: Surly CreamRoller. 98 Giant Rincon. SE UVT

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 12 Times in 9 Posts
Originally Posted by TejanoTrackie View Post
That's an excellent choice, very good quality at a very reasonable price. I was going to suggest the IRD QB-55 that is the same price but lighter weight, but unfortunately it is out of stock at RG.

The reason the Shimano BB-UN55 won't work with your frame, is that it expects the frame's BB shell to be exactly 68mm wide, and yours must be just a tiny bit less, resulting in the gap. It's really a very stupid design, and I think you are wise to get something else.
Thanks buddy, I appreciate the advice. I actually tried to get that IRD first but of course every size is in stock except for the one I need like you said lol. I did order the Tange, I'll take the loss on the Shimano that thing was like 18 bucks, I have no idea why I bought that over the newer Shimano UN300 in the first place.
Philasteve is offline
Old 06-09-21, 06:29 AM
  #12
IAmSam
Senior Member

Join Date: Oct 2012
Posts: 1,462
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 343 Post(s)
Liked 130 Times in 63 Posts
This is a UN-55 in one of my bikes. Can you make out the spacer? It's there. When I first got this frame, I had the shell faced - damn thing came back 67mm wide. Like on the OP's bike the UN-55 I got for it would not snug-up all the way on the NDS. I decided to put a 1 mm spacer on the drive side. Works good for me. Hope whatever you choose to do on your bike works as well for you...



IAmSam is offline
Old 06-09-21, 09:25 AM
  #13
Rolla
Gyro Captain

Rolla's Avatar

Join Date: Sep 2020
Posts: 970
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 1,019 Times in 448 Posts
Originally Posted by IAmSam View Post
This is a UN-55 in one of my bikes. Can you make out the spacer? It's there. When I first got this frame, I had the shell faced - damn thing came back 67mm wide. Like on the OP's bike the UN-55 I got for it would not snug-up all the way on the NDS. I decided to put a 1 mm spacer on the drive side. Works good for me. Hope whatever you choose to do on your bike works as well for you...
That's how I envisioned a spacer working on the OP's bike, but as @TejanoTrackie said, doing that will affect chainline. Because your BB shell was shaved by a millimeter, the spacer had no net effect on yours, but that may not be the case with the OP's bike. Whether a millimeter of chainline makes any significant difference is a question of how straight it is to begin with.
Rolla is offline
Old 06-12-21, 05:49 PM
  #14
Senrab62
It's the little things

Join Date: Jan 2016
Location: Chicagoland
Posts: 563

Bikes: Too many, yet not enough

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 182 Times in 80 Posts
I agree with JohnDThompson on my RRB track bike, the BB was likely faced by previous owner. Used a spacer, and perfect fit. Easy peasy.
Senrab62 is offline
Old 06-14-21, 04:11 PM
  #15
Philasteve
Senior Member
Thread Starter

Philasteve's Avatar

Join Date: Apr 2010
Location: Philadelphia
Posts: 1,449

Bikes: Surly CreamRoller. 98 Giant Rincon. SE UVT

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 12 Times in 9 Posts

No more open gap, NDS cup was on there super tight when I pulled it from the box. Screwed it in and almost put my elbow through the wall trying to pull it off. Probably an easier way but oh well.
