74 Grand Record build and comparison to 74 Grand Jubilee

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

74 Grand Record build and comparison to 74 Grand Jubilee

Old 06-19-21, 04:40 PM
  #1
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 102

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 121 Times in 43 Posts
74 Grand Record build and comparison to 74 Grand Jubilee

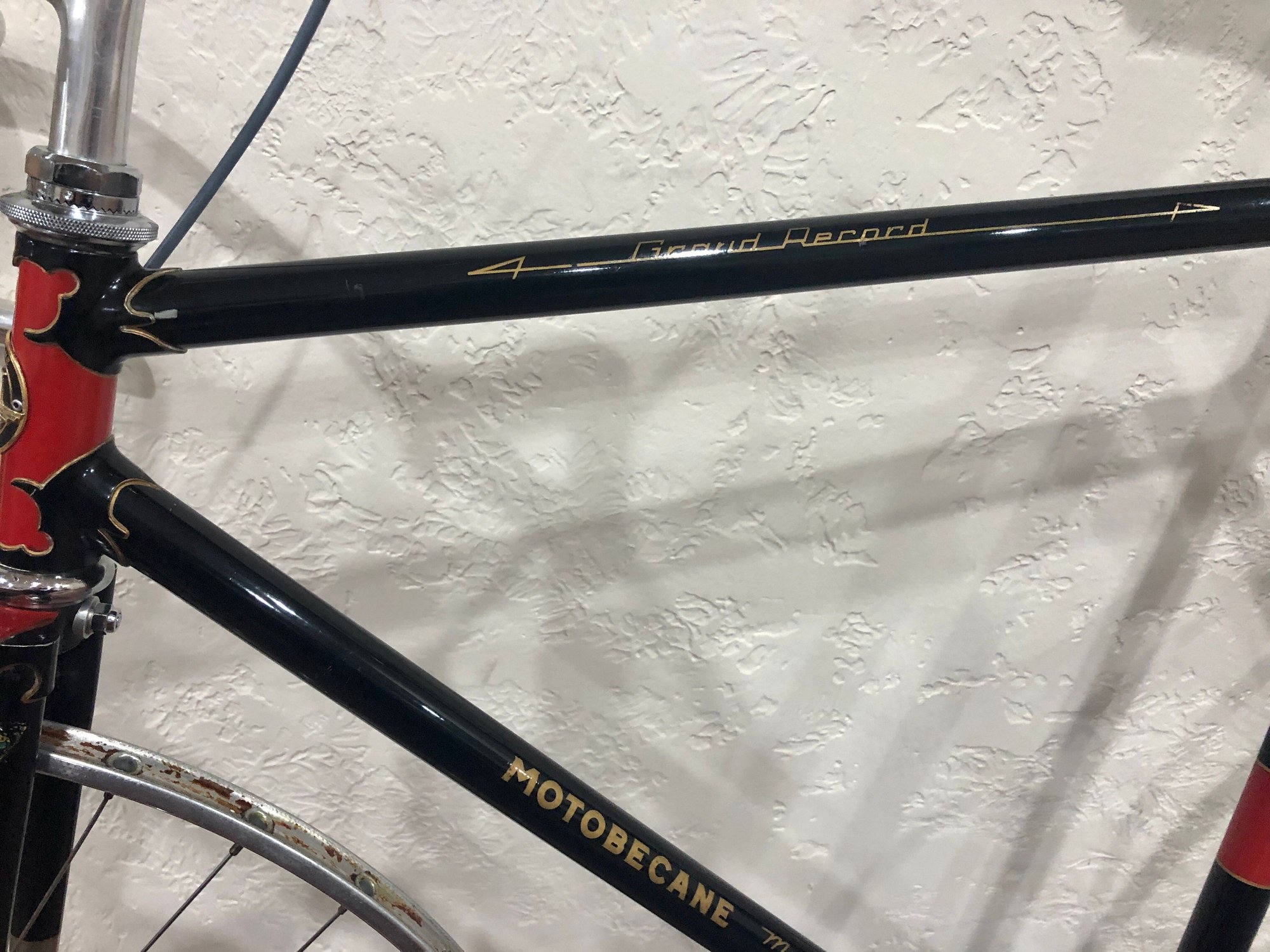

Hey folks, I am starting a build on a '74 Grand Record, in the black/red combination, which is one of my holy grail bikes (along with the orange Team Champion, lilac Le Champion, and red/black Grand Jubile, which I have already). I bought this from the original owner, who kept it remarkably well, and it is for the most part original, with the 3 pin TA crank, Atom 400 pedals, Stronglight competition headset, Brooks Pro with plain alloy tube post, Phillipe bars and stem, NR derailleurs, and the original Normandy Luxe Comp hubs and generic Super Champion tubulars with the dimpled sidewalls....

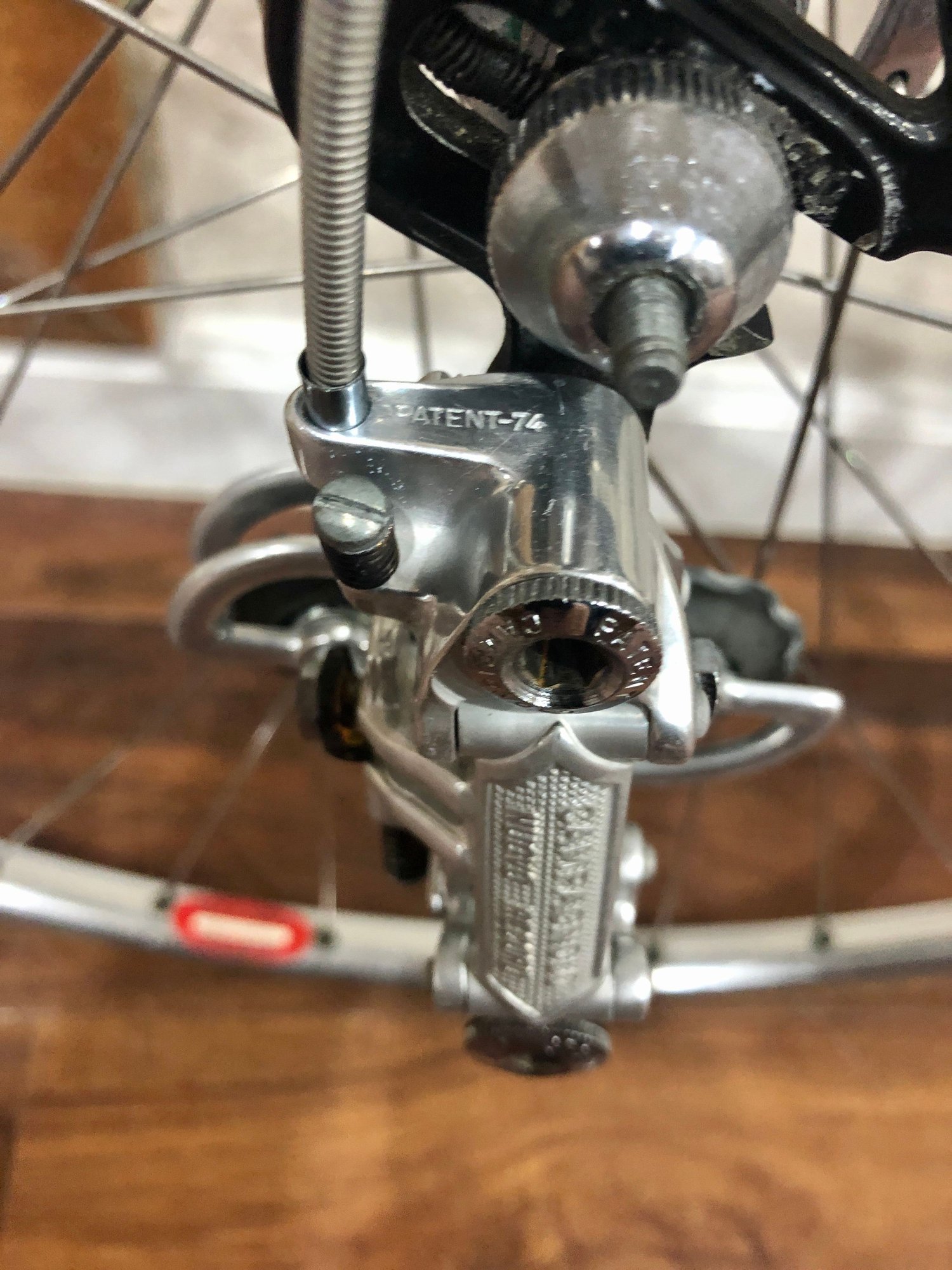

In the process of rebuilding, I see I have the unique opportunity to do a compare against my '74 Grand Jubile, both are the same frame size 21". This is an early '74 Grand Record, so has the 3 main tubes in 531 (not the seatstays or chain stays). The fork is 531, which I had heard folks say is the only difference between the two frames. In other words, the theory is that the Grand Jubile from that period is but a rebadged Grand Record, with a non-531 fork.

In comparing the two, I was prepared to agree with this theory. On closer examination, however, I noticed the head tube for the GJ was somewhat shorter than that of the GR, despite the seat tube length being identical. I then measured the top tubes on each - the GR was about 21 3/4" C-C, while the GJ was about 22 1/16". The longer tube on the GJ then would account for the shorter head tube, and thus probably has a more relaxed geometry and longer wheelbase. So, it does appear that each frame is actually unique to the model.

For reference:

GR serial number: 2872104
GJ serial number: 2512275

Will keep posting as I proceed...

Andy



75lechamp is offline
Likes For 75lechamp:
Old 06-19-21, 05:46 PM
  #2
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,595
Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 903 Post(s)
Liked 418 Times in 250 Posts
I have to agree that the black and red grand records are on my grail list.
Narhay is offline
Old 06-19-21, 05:48 PM
  #3
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,638

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1902 Post(s)
Liked 2,146 Times in 1,200 Posts
Looks like a fantastic paint job on your GR. Show me a Peugeot that looks like that.

I've only had one Jubilé, a '79/'80 Vitus 172 frameset. Super nice bike. The chainstays were quite a bit longer than my '75 GR of basically the same size.
SurferRosa is offline
Old 06-19-21, 07:50 PM
  #4
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,785

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5224 Post(s)
Liked 1,844 Times in 1,208 Posts

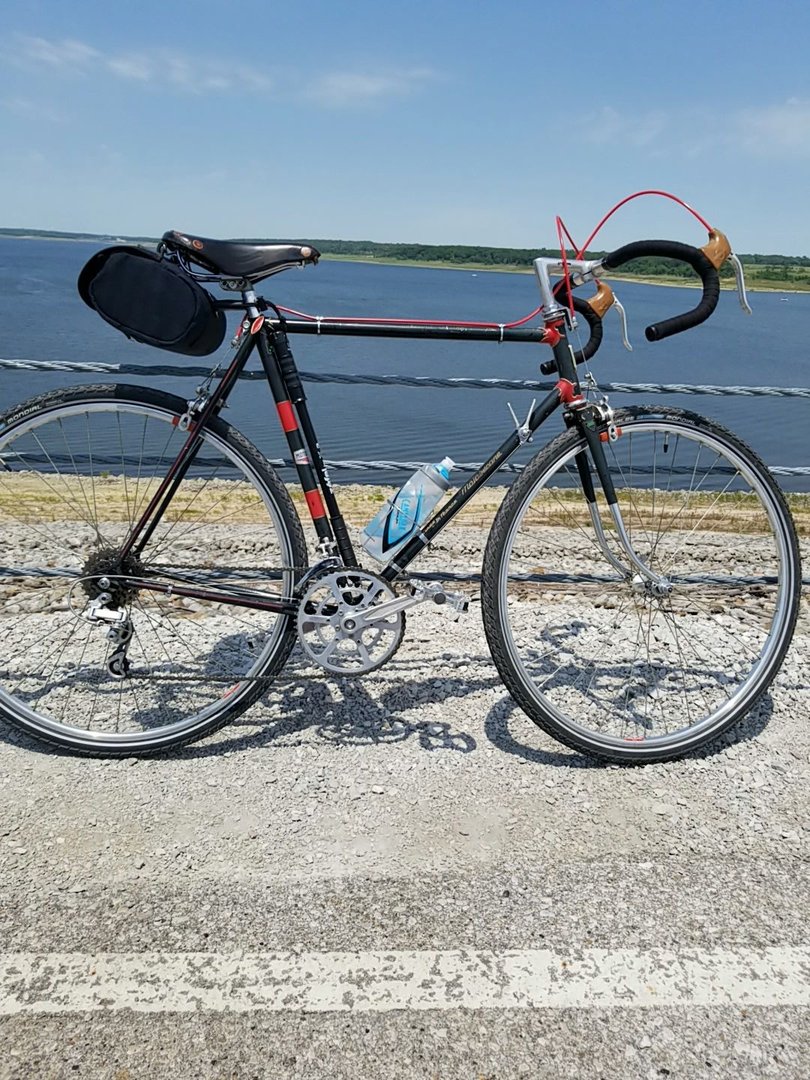

Very pretty Motobecane Grand Record. I have a 1973 Motobecane Grand Record (also 531 double butted main triangle and fork). The paint is crackled, but it is a fine machine. These bikes have clearance for fairly fat tires. I'm running 700 x 35c on mine with plenty of clearance.

bikemig is offline
Likes For bikemig:
Old 06-19-21, 08:46 PM
  #5
spudly
Senior Member

Join Date: Jun 2012
Posts: 97
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 23 Times in 6 Posts
Those black/red/gold trim Grand Records are gorgeous!
spudly is offline
Likes For spudly:
Old 06-19-21, 09:43 PM
  #6
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,115
Mentioned: 308 Post(s)
Tagged: 1 Thread(s)
Quoted: 2635 Post(s)
Liked 969 Times in 754 Posts
-----

thanks so much for creating this thread

a most excellent idea

shall look forward to following along

have not previously heard tell of an Atom model 400 pedal

can you post an image of one, if convenient?


-----
juvela is online now
Likes For juvela:
Old 06-20-21, 07:23 AM
  #7
Flatforkcrown
Senior Member

Flatforkcrown's Avatar

Join Date: Jun 2021
Location: Barboursville, Va
Posts: 154

Bikes: N+1

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 171 Times in 79 Posts
Very interesting, and beautiful bikes. Black and red Motobecanes are such a classic bike.

here’s mine… 73 Le Champion.

Flatforkcrown is online now
Likes For Flatforkcrown:
Old 06-20-21, 08:38 AM
  #8
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,110
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1959 Post(s)
Liked 799 Times in 619 Posts
Originally Posted by Narhay View Post
I have to agree that the black and red grand records are on my grail list.
the black and red frames are a terrific color pair.

I have a Silver/Red example. Bought cheap as had a stuck stem, hacked off to harvest the headset! Fortunately 5 minutes of effort to remove, the project has stalled after that.

maybe that frame will get 650b wheels and tires?
repechage is offline
Likes For repechage:
Old 06-20-21, 08:39 AM
  #9
repechage
Senior Member

Join Date: Jun 2006
Posts: 16,110
Mentioned: 109 Post(s)
Tagged: 0 Thread(s)
Quoted: 1959 Post(s)
Liked 799 Times in 619 Posts
Originally Posted by Flatforkcrown View Post
Very interesting, and beautiful bikes. Black and red Motobecanes are such a classic bike.

here’s mine… 73 Le Champion.

high flange hubs are a must with these, bravo
repechage is offline
Likes For repechage:
Old 06-25-21, 07:41 AM
  #10
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 102

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 121 Times in 43 Posts

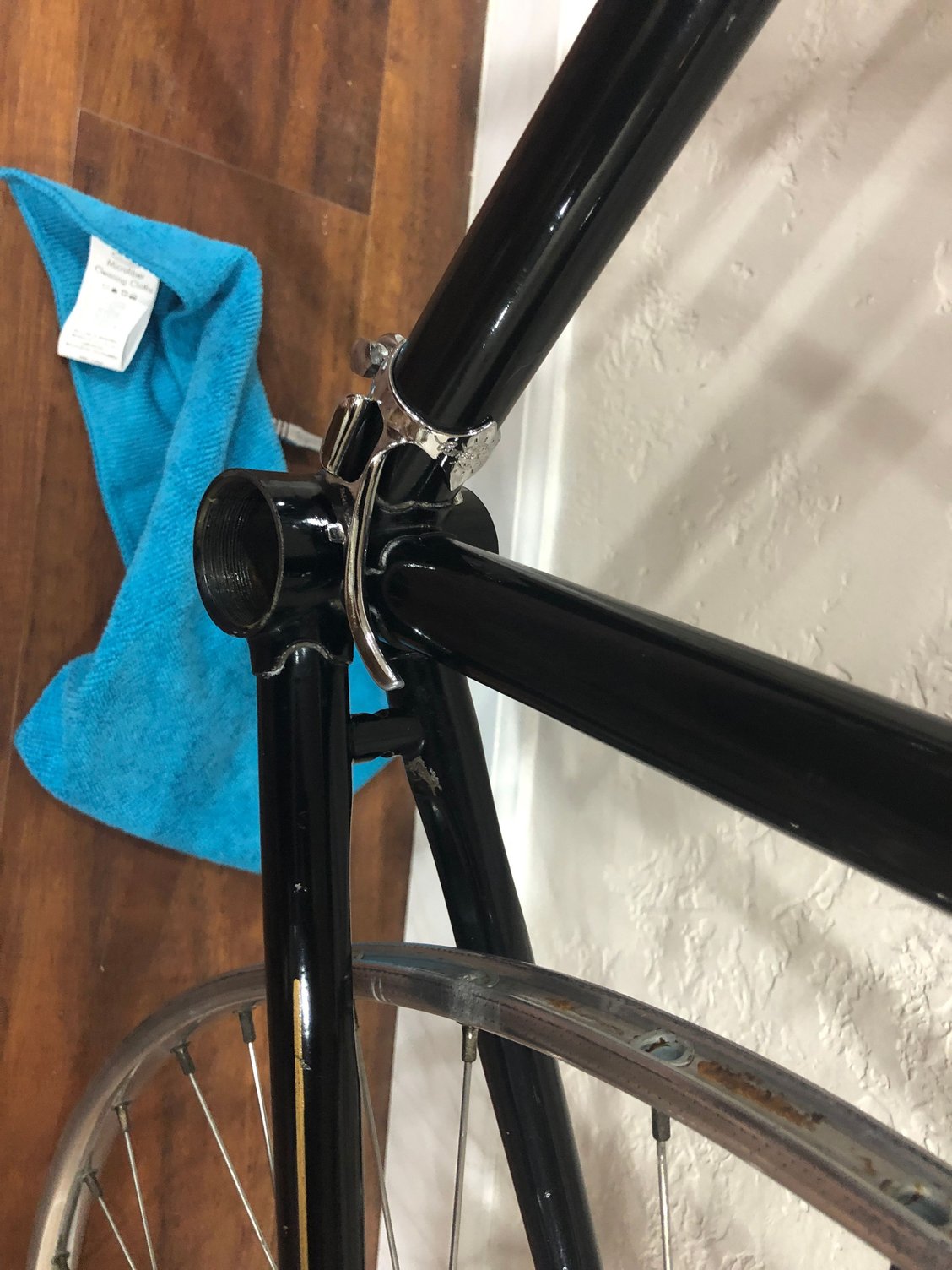

Updates

Getting things back together now... I decided to go with a nice set of Campy brakes, will keep the original Weinmanns in reserve, along with the 3 pin TA, which is really nice, but I will put on a Campy NR....

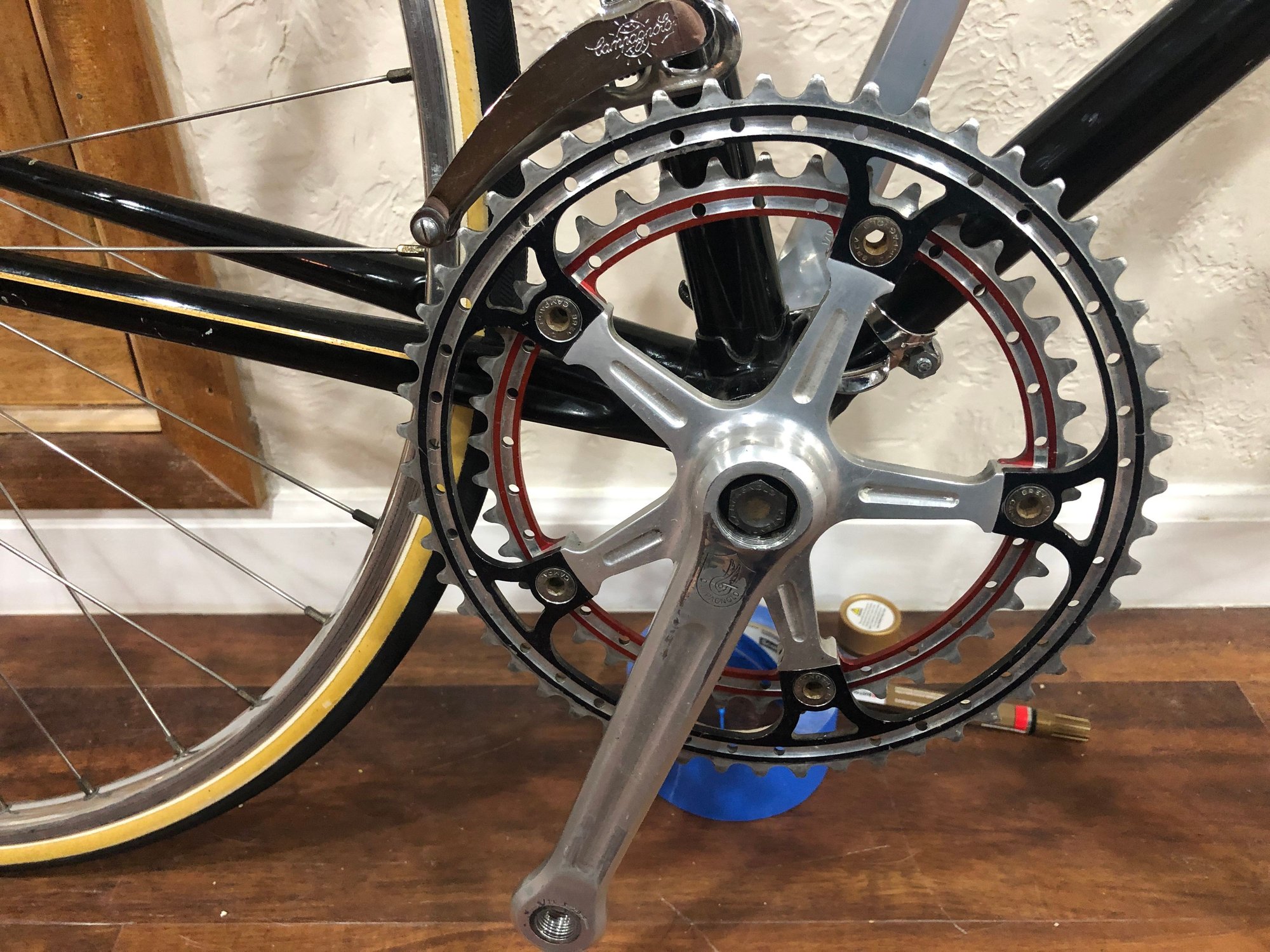

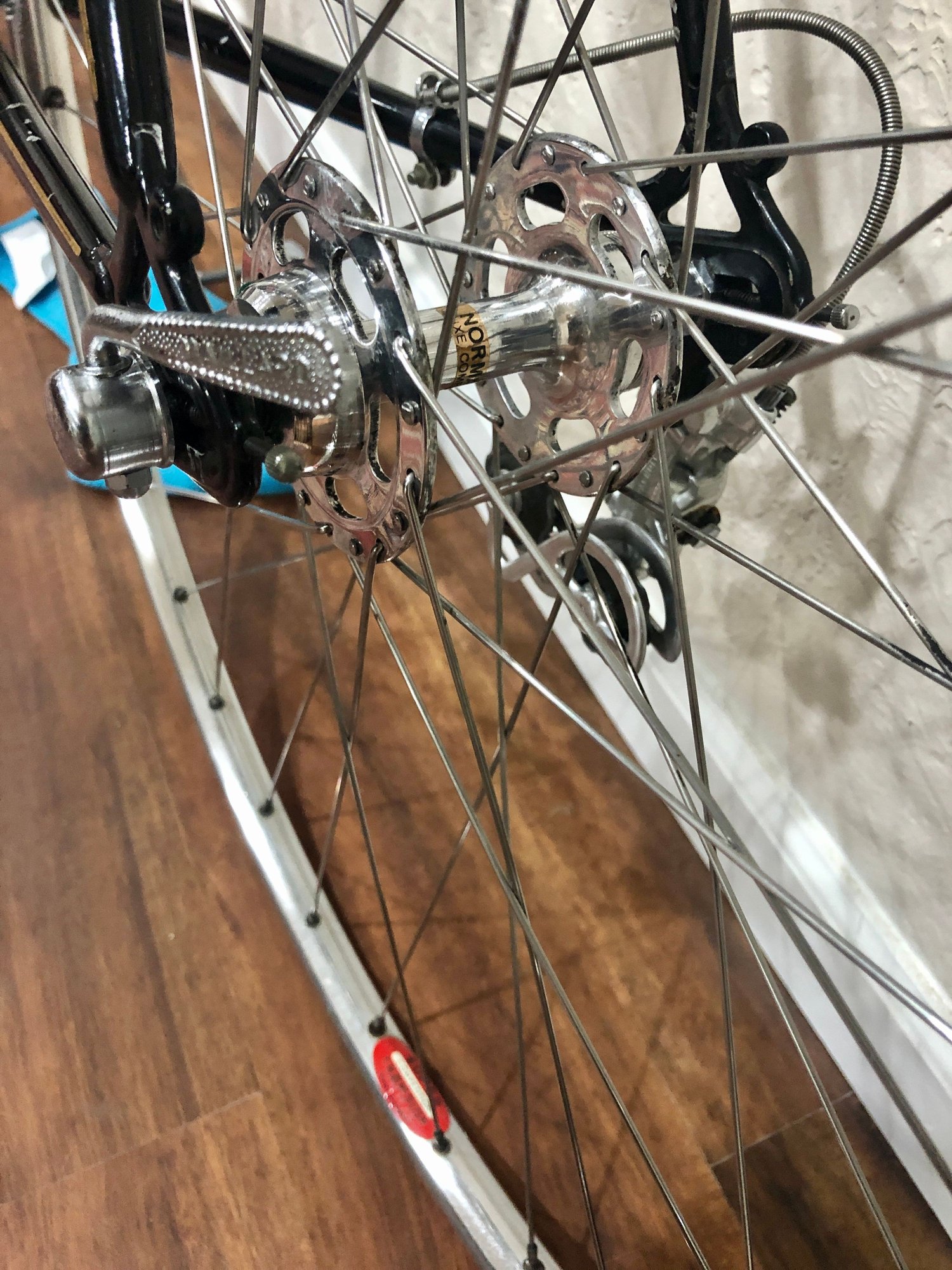

Original Normandy Luxe Comps were in good shape, minimal wear on the cones...

Original MM Atom skewers



Original Super Champ rims, not marked as any model. They have the textured sidewalls, and are kinda heavy, I think even more than the Arc en Ciels...

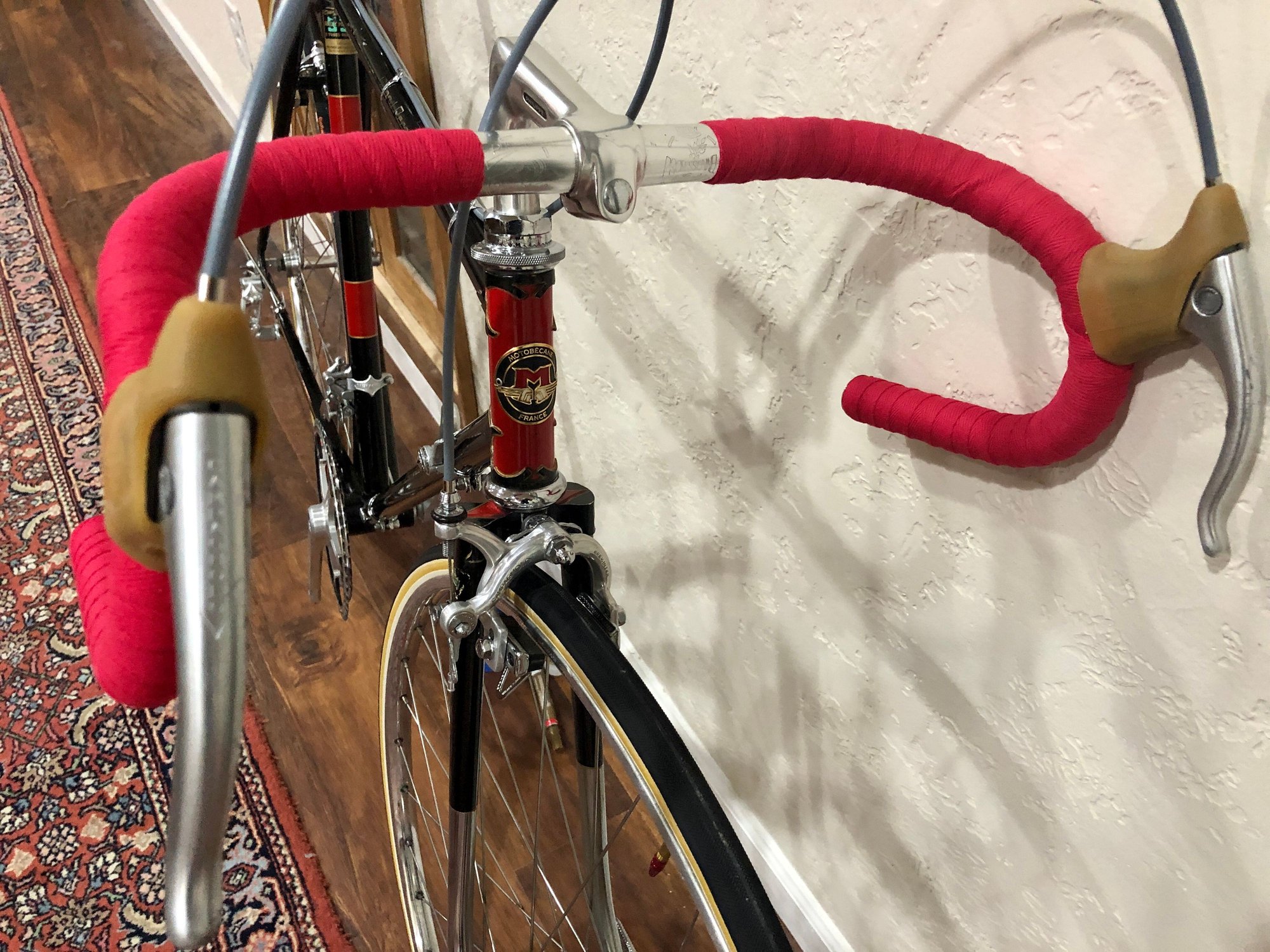

Great Phiippe stem and bars, original

'74 NR, original
75lechamp is offline
Likes For 75lechamp:
Old 06-25-21, 01:00 PM
  #11
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,638

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1902 Post(s)
Liked 2,146 Times in 1,200 Posts

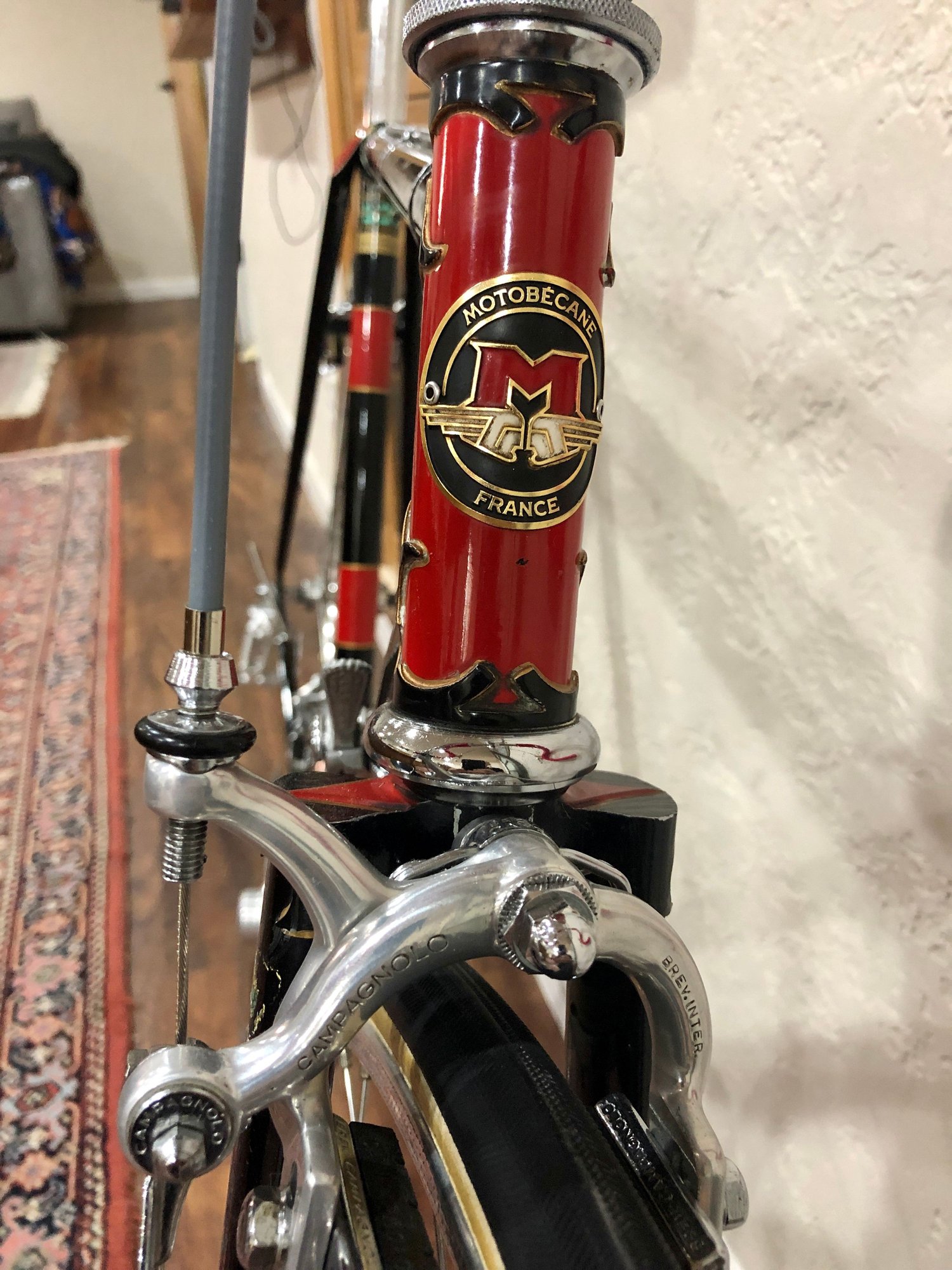

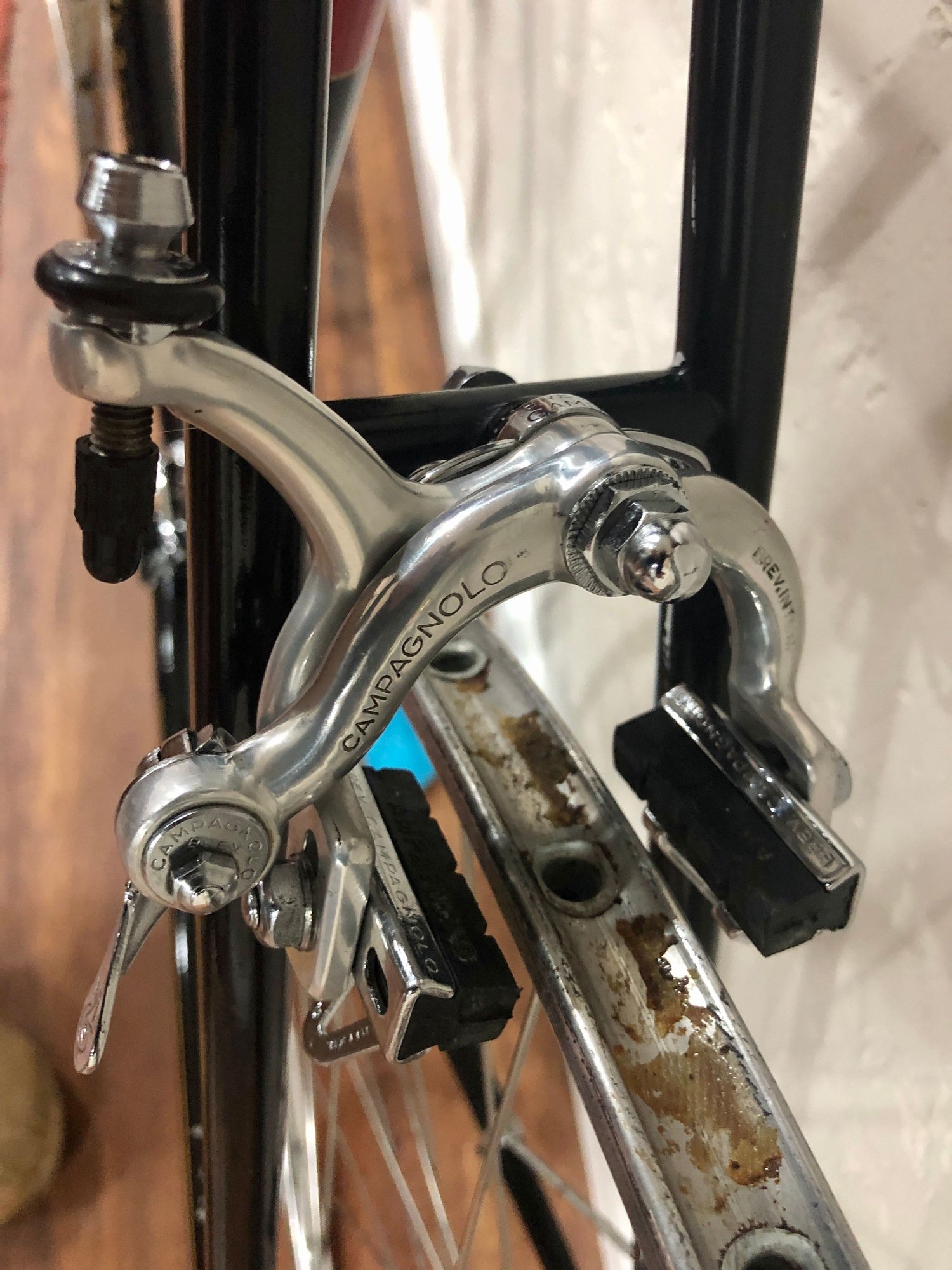

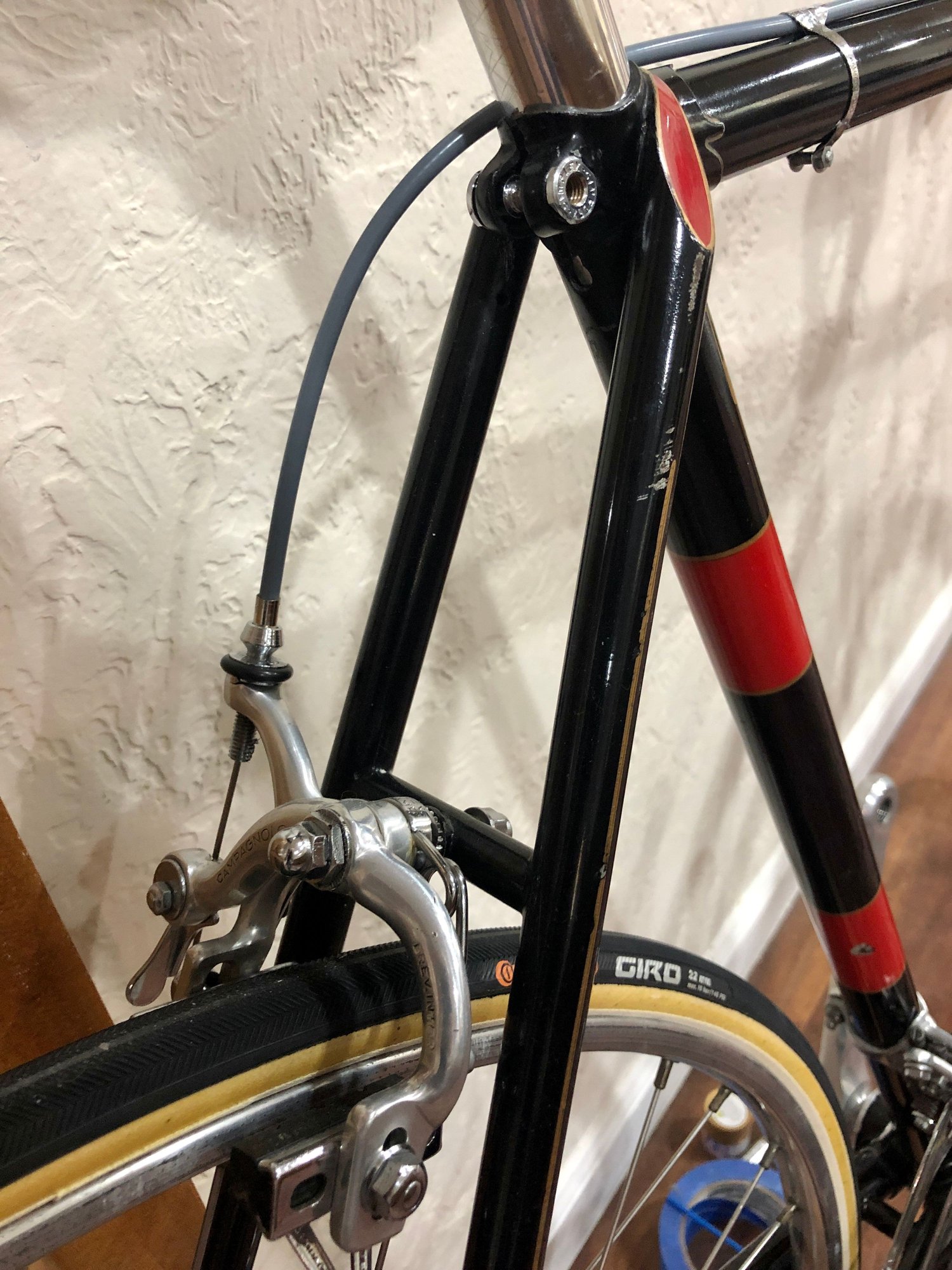

Seeing those calipers reach 700c rims sort of threw me. I always thought the GR came with 27" wheels until later in the '70s. But now I look at the catalog pages, and it shows the '74 and '75 models with 700c rims.

If I used those calipers on my GR, they would not reach. I always thought mine was a '75. Maybe this confirms it's a '76. So confusing!

https://bulgier.net/pics/bike/Catalogs/Motobecane/
SurferRosa is offline
Likes For SurferRosa:
Old 06-25-21, 01:48 PM
  #12
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,920

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1131 Post(s)
Likes: 0
Liked 968 Times in 587 Posts
I have owned both a Grand Record and a Grand Jubilee. The Grand Record was a wonderful handling bicycle and the Grand Jubilee was just about as good. Put another way, I would jump at the chance to get either one again for a decent price. This is how I had my Grand Jubilee set up when I was last riding it...

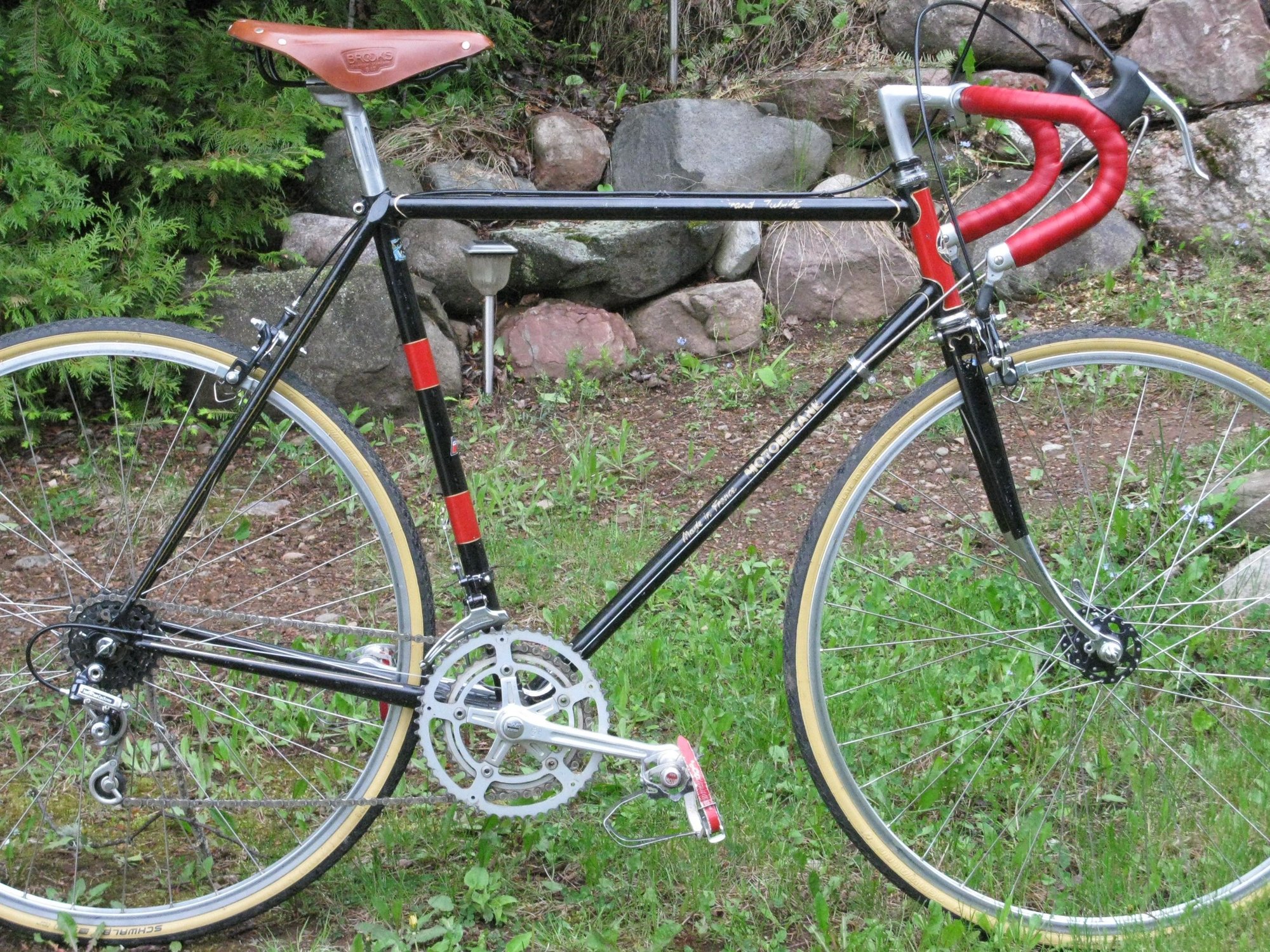

And this is what it looked like when I sold it...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Likes For randyjawa:
Old 06-25-21, 03:02 PM
  #13
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 102

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 121 Times in 43 Posts
For sure, short reach Campys would not work on this one. I've got standard reach, and they work, but pretty close to the limit! My philosophy on this one is to consider what I would do if I had this bike in the late 70s and what I would upgrade, and that would include upgrades to Campy crank and brakes - it is called Grand "Record" for a reason after all....
75lechamp is offline
Old 06-25-21, 03:33 PM
  #14
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,638

Bikes: Old school lightweights

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1902 Post(s)
Liked 2,146 Times in 1,200 Posts
Originally Posted by 75lechamp View Post
For sure, short reach Campys would not work on this one. I've got standard reach, and they work, but pretty close to the limit!
Mine is a 700c conversion, and I needed a long reach brake caliper on the rear. Unless I used to drop bolt, a standard reach brake wouldn't work.

It is called Grand "Record" for a reason after all.
Absolutely. When I acquired mine, it had Suntour Cyclone on it. Had to change over to Nuovo Record rapidamente.
SurferRosa is offline
Old 06-25-21, 03:37 PM
  #15
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,444
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 360 Times in 293 Posts

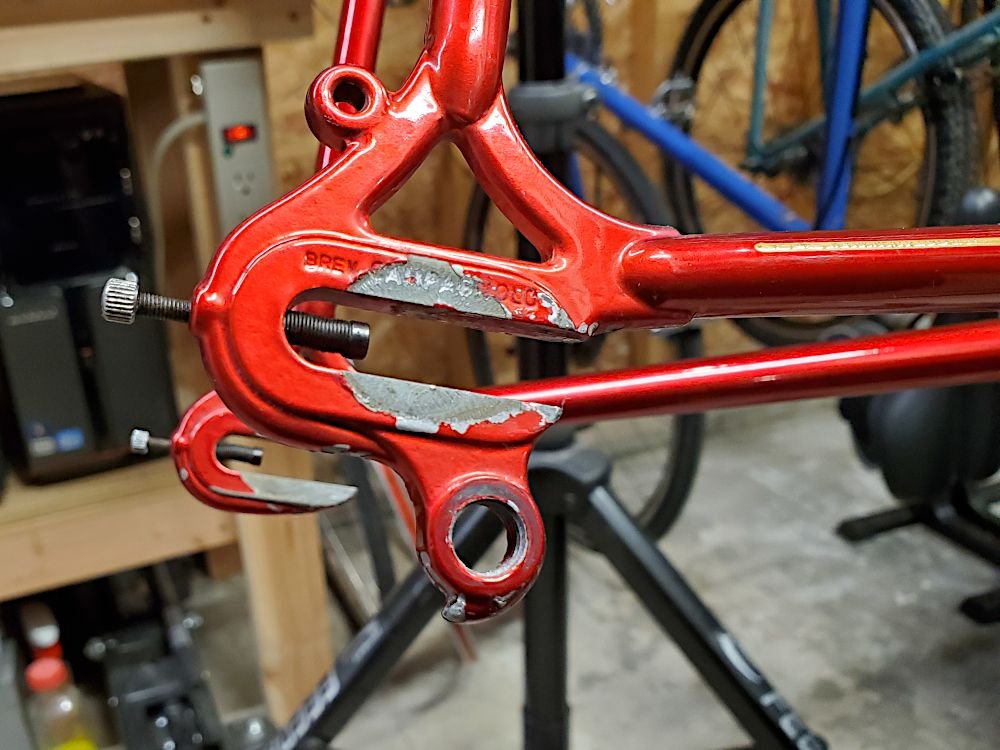

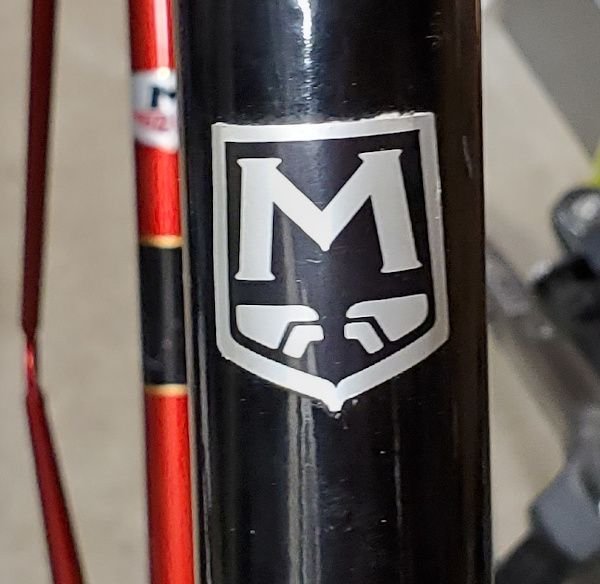

I have a "same" Black/Red GR with same lugs and round headbadge, but mine (which I thought of as either '74 or '75) has the "Full DB 531 throughout" decal, not a "3-mains only" decal.
So never having owned a Grand Jubilee, did these ever come with Huret DOs (to match the RD)?
Or did Lawee always spec a Huret RD that works with Campy DOs? (I understand there is such a version, no?)
unworthy1 is offline
Old 06-25-21, 04:04 PM
  #16
droppedandlost
small ring

droppedandlost's Avatar

Join Date: Jul 2012
Location: PNW
Posts: 706
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 357 Times in 177 Posts

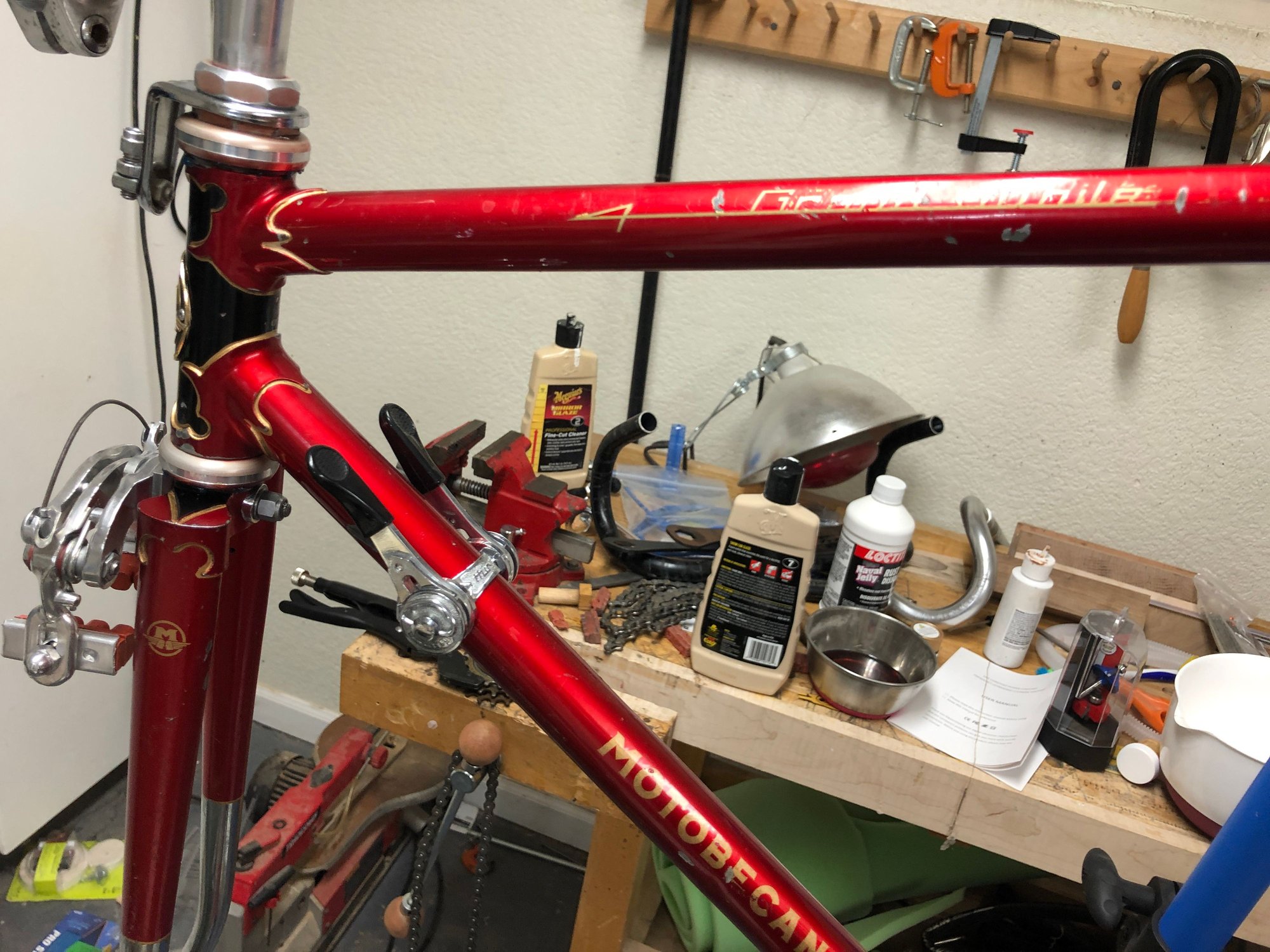

I think a lot of the early Jubiles were made with parts on hand, mostly a mix of Grand Record and Grand Touring.
GJ Serial #1861369
Chrome narrow point crown, script instead of block font on downtube, sticker head badge, campy dropouts




__________________
droppedandlost is offline
Old 06-25-21, 05:18 PM
  #17
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 102

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 121 Times in 43 Posts
Atom 700

Apologies, I misstated this. I had thought these were the Atom 440s, but rather they are the Atom 700. I think these are really cool pedals, seem to have held up pretty well and have the snazzy red end caps...



75lechamp is offline
Old 06-25-21, 05:56 PM
  #18
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,920

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 187 Post(s)
Tagged: 0 Thread(s)
Quoted: 1131 Post(s)
Likes: 0
Liked 968 Times in 587 Posts
My Grand Record was fitted with Shimano Dura Ace brakes and they worked just great. Was Dura Ace original? I am not sure and, sadly, this is the only picture that I have of that wonderful old bike...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 06-25-21, 06:14 PM
  #19
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,785

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5224 Post(s)
Liked 1,844 Times in 1,208 Posts
Originally Posted by 75lechamp View Post
Apologies, I misstated this. I had thought these were the Atom 440s, but rather they are the Atom 700. I think these are really cool pedals, seem to have held up pretty well and have the snazzy red end caps...

I have a set of these. Agreed that the cap looks neat but I have found them to be a pain to adjust. Plus they don’t have a tab which makes them a bit harder to kick over if using toe clips and straps. Otherwise they’re solid pedals.
bikemig is offline
Likes For bikemig:
Old 06-26-21, 06:02 AM
  #20
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,785

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5224 Post(s)
Liked 1,844 Times in 1,208 Posts
Originally Posted by randyjawa View Post
My Grand Record was fitted with Shimano Dura Ace brakes and they worked just great. Was Dura Ace original? I am not sure and, sadly, this is the only picture that I have of that wonderful old bike...
Beautiful color. I haven't seen this color before on a Moto GR. I'd be surprised if the dura ace brakes were original to the bike. I've seen vintage Motobecanes with shimano running gear but they were later than this bike. This is a really interesting Motobecane Grand Record. Thanks for posting the picture.
bikemig is offline
Likes For bikemig:
Old 06-26-21, 11:28 AM
  #21
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,444
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 360 Times in 293 Posts
True, that does not track to any of the USA-spec GRs I ever saw, and judging from what I can see of the headbadge and one of the seat tube decals it could be an earlier frame (like 1972-ish) which I think predates that DA decal. Were the hubs DA black, laced to Weinmann concave rims?
unworthy1 is offline
Old 06-26-21, 01:13 PM
  #22
kroozer
vintage motor

kroozer's Avatar

Join Date: Sep 2008
Location: Tepic, Nayarit, Mexico
Posts: 1,418

Bikes: Automoto, Stallard, Rotrax, Jack Taylor, Atala, Lejeune, Motobecane, RIH, Zieleman, Raleigh, Messina, Brazzo, Davidson, Fisher, Kestrel

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Likes: 0
Liked 26 Times in 23 Posts
I bought a GR frame last year, it has the black/red paint and I think it's about a 74. I also have a 75 Jubile and a 72 Le Champ. All of these make pretty nice racing-style bikes, or equally nice touring/city riders.
My GR has long brake reach and generous tire clearance in the front, and much less in the rear, which seems kind of weird and limits tire size. But it's so pretty that who cares. I plan to put on a set of 590x40 wheels, rack, and fenders.
The GJ will just barely take 650Bx42 tires and fenders, I rode it that way for a couple years but if I inflated the tires too much they'd rub the stays. 38mm tires would probably work fine.
The GJ & GR (mid-70's) frames show much nicer workmanship than the LC (early 70's) frame, even though the LC is supposedly higher-end. The LC has the most clearance of the 3 frames, ample space for 650Bx42 wheels + fenders. It also has the most laid-back geometry, and IMO is the best-suited for a classic randonneur-style build. The later LC's were totally different.
kroozer is offline
Old 06-29-21, 05:37 PM
  #23
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 102

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 121 Times in 43 Posts
Almost done...

Nearing completion on the GR....


Swapped out the 3 pin original TA for a '73 dated Campy, with black and red Rino rings for the bling factor....

Swapped out the Weinmanns for a nearly pristine set of NR standard reach. They do fit the setups


Original Super Champion tubulars, original Normandy Luxe Comp big flange hubs, and as far as I can tell, original spokes (Robergel maybe?)


Almost there.....
75lechamp is offline
Likes For 75lechamp:
Old 06-30-21, 11:44 AM
  #24
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,444
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 792 Post(s)
Liked 360 Times in 293 Posts
Don't know how the Rino rings will wear but they do earn some black/red style points! Too bad your Normandy Luxe hubs aren't the ones with red seals, you'd add a few more points (but the gold foil label hubs may be a tick higher in grade, dunno, they certainly are nice spinners so keep them clean and lubed: you cannot replace the races in these). My red/black GR came with the "OEM" Nitto Pearl stem which along with the Brooks saddle, Campy gear and Weinmann brakes are the non-French components but that's a really nice JP stem, IMO.
unworthy1 is offline
Likes For unworthy1:
Old 06-30-21, 01:07 PM
  #25
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,048
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 14415 Post(s)
Liked 2,411 Times in 1,797 Posts
Oh, yes, the black and red Motobecanes!!!

Mom's Grand Jubilee, Vitus. Seat is low for my niece (at the time).



I do have a Grand Touring Mixte (I think). It has a similar shape, but far less refined construction.
CliffordK is offline
Likes For CliffordK:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
