How do you safely remove the black dot on Cinelli 1R stem?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How do you safely remove the black dot on Cinelli 1R stem?

Old 03-31-11, 03:20 PM
  #1
peugeot mongrel
Senior Member
Thread Starter

peugeot mongrel's Avatar

Join Date: Jul 2010
Location: San Antonio, Texas
Posts: 473

Bikes: 84 Coppi - 94 Hujsak - 82 Colnago Superissimo - 78 Ciöcc - 70's Galmozzi - 73 Lambert - 78 Motobecane Grand Record - 87 Peugeot Triathlon - 66 Peugeot H-40 - 78 Peugeot U08 - 85 Raleigh C-40 - 82 miyata 310 - 82 Univega - 85 Sterling SIS Mixte

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 21 Times in 11 Posts
How do you safely remove the black dot on Cinelli 1R stem?

I got a 1R with a rash I want to sand and polish right by the logo inset. Is there a trick to removing it or putting it back and not messing it up or having it loose? It looks like you would use a little punch in the little hole from the inside of the clamp area.

- thanks for any insight
peugeot mongrel is offline
Old 03-31-11, 03:49 PM
  #2
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,138

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Likes: 0
Liked 14 Times in 14 Posts
Never owned a IR before, but could there be a hole on the back at the inside of the clamp where you can push it out??
Otherwise you might need a very small, sharp flat screwdriver to carefully lever it out from the front at the edges.

Chombi
Chombi is offline
Old 03-31-11, 03:55 PM
  #3
bigbossman
Dolce far niente

bigbossman's Avatar

Join Date: Dec 2004
Location: Northern CA
Posts: 10,835
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by Chombi View Post
Never owned a IR before, but could there be a hole on the back at the inside of the clamp where you can push it out??
Otherwise you might need a very small, sharp flat screwdriver to carefully lever it out from the front at the edges.

Chombi
This.
__________________
"Love is not the dying moan of a distant violin, it’s the triumphant twang of a bedspring."

S. J. Perelman
bigbossman is offline
Old 03-31-11, 04:41 PM
  #4
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,430
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 791 Post(s)
Liked 356 Times in 289 Posts
Originally Posted by bigbossman View Post
This.
unless there's more than one, mine has two little (fragile) tabs that have to be carefully pried inward while you push the "dot" inward, you don't push it outward as there is a flange that won't permit that.
Attached Images
File Type: jpg
unworthy1 is offline
Old 03-31-11, 07:16 PM
  #5
bigbossman
Dolce far niente

bigbossman's Avatar

Join Date: Dec 2004
Location: Northern CA
Posts: 10,835
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by unworthy1 View Post
unless there's more than one, mine has two little (fragile) tabs that have to be carefully pried inward while you push the "dot" inward, you don't push it outward as there is a flange that won't permit that.
Yeah.... that's what I said.
__________________
"Love is not the dying moan of a distant violin, it’s the triumphant twang of a bedspring."

S. J. Perelman
bigbossman is offline
Old 03-31-11, 08:32 PM
  #6
peugeot mongrel
Senior Member
Thread Starter

peugeot mongrel's Avatar

Join Date: Jul 2010
Location: San Antonio, Texas
Posts: 473

Bikes: 84 Coppi - 94 Hujsak - 82 Colnago Superissimo - 78 Ciöcc - 70's Galmozzi - 73 Lambert - 78 Motobecane Grand Record - 87 Peugeot Triathlon - 66 Peugeot H-40 - 78 Peugeot U08 - 85 Raleigh C-40 - 82 miyata 310 - 82 Univega - 85 Sterling SIS Mixte

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked 21 Times in 11 Posts

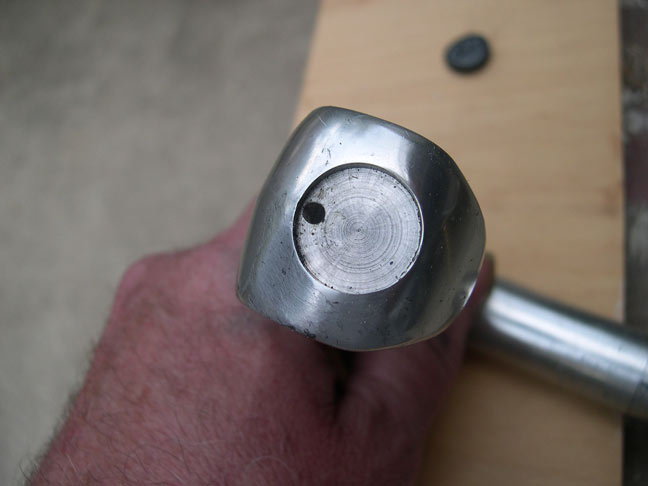

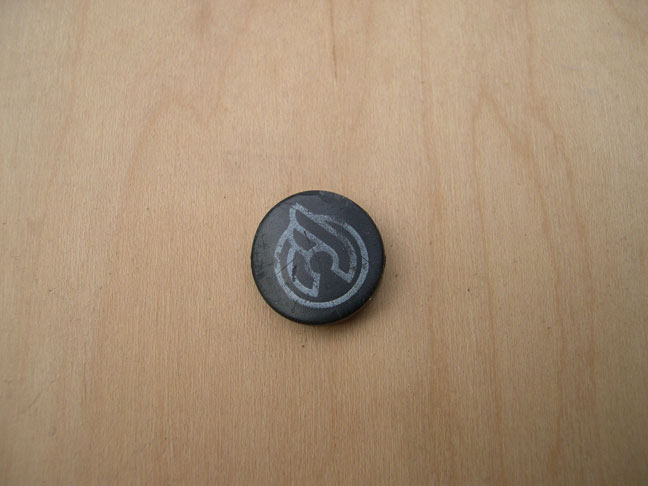

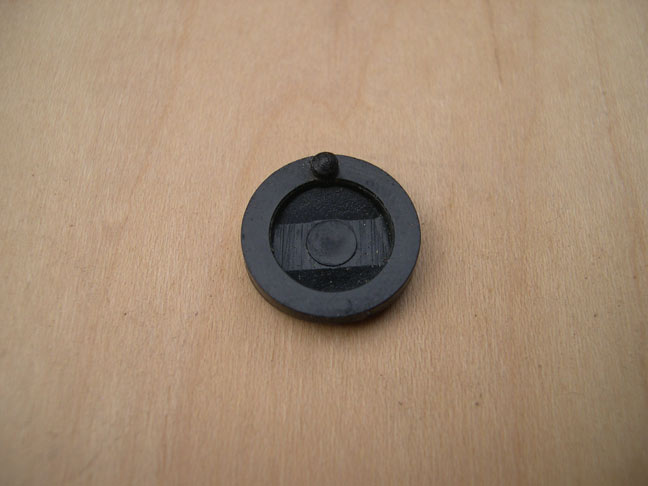

Thanks - mine is a little different - no tabs - so there is more than one kind. It didn't want anything to do with carefully prying from the outside. A wire from the inside through that hole popped it right out. It was pretty snug.





peugeot mongrel is offline
Old 04-02-11, 09:08 AM
  #7
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,430
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 791 Post(s)
Liked 356 Times in 289 Posts
Originally Posted by peugeot mongrel View Post
Thanks - mine is a little different - no tabs - so there is more than one kind. It didn't want anything to do with carefully prying from the outside. A wire from the inside through that hole popped it right out. It was pretty snug.





well, that's an "improved" version I've never seen before...must have been after the Cinelli engineers all broke the little tabs on their own 1R stems! Thanks for the good pics.
unworthy1 is offline
Old 04-02-11, 05:42 PM
  #8
Citoyen du Monde
Senior Member

Citoyen du Monde's Avatar

Join Date: Oct 2004
Posts: 1,972
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
It is an XR!
