Campagnolo bottom bracket / spindle removal

Old 07-19-21, 01:14 PM
  #1
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 643

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 117 Times in 96 Posts
Campagnolo bottom bracket / spindle removal

Hi

Trying to take off the BB. The allen wrench turns about 1/5 th of the way on both sides...both ways but stops.
I see there are 2 small holes on the small circle.
Do I need to get a special tool to remove and then the allen bolt will come out ?

Please forgive me if I am not using correct terms

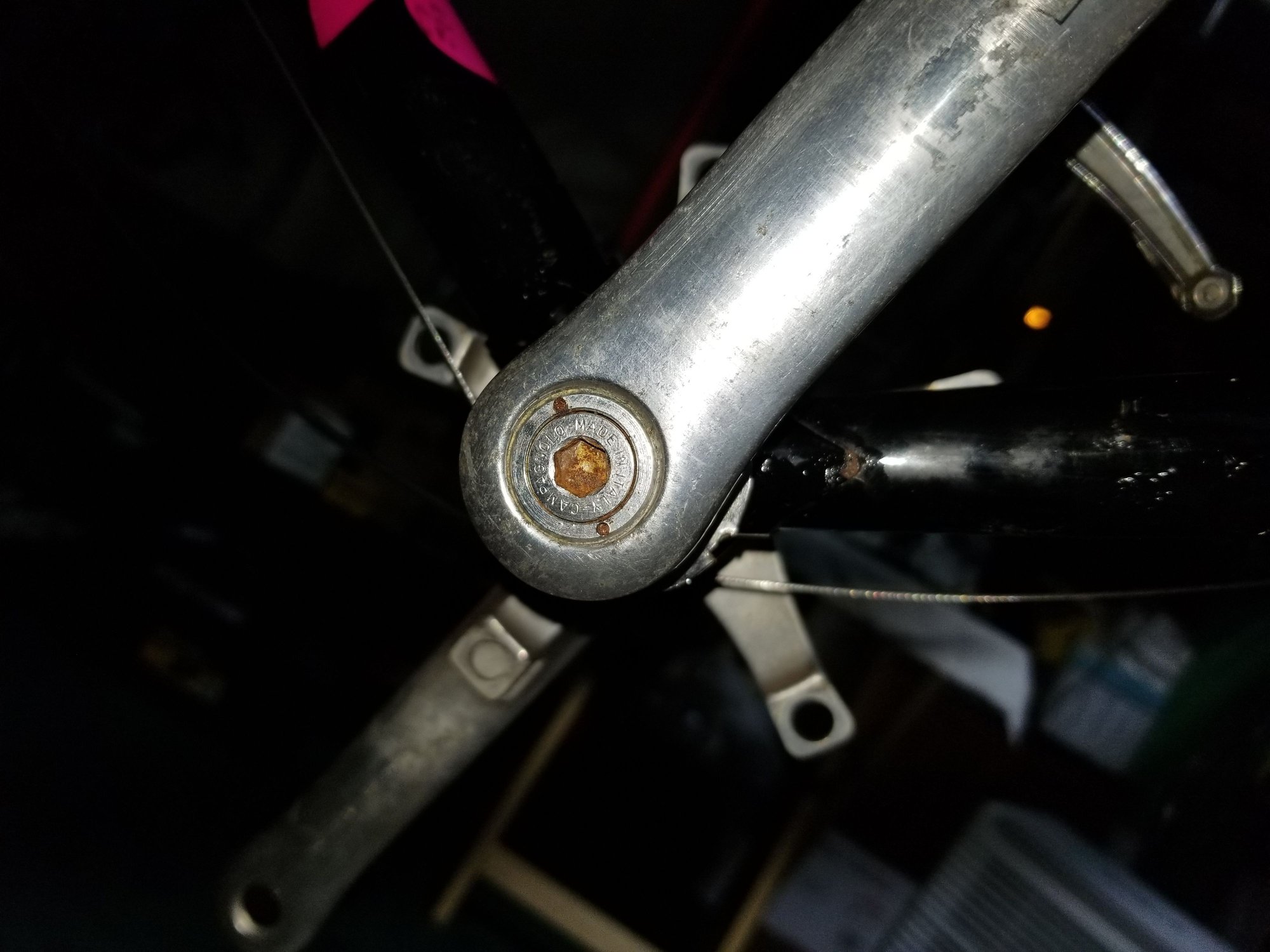

Pics are attached

Really appreciate your help

bikemike73 is offline
Old 07-19-21, 01:27 PM
  #2
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,825
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 503 Times in 387 Posts
That is called a self-extracting crank. You just keep unscrewing the crank bolt which has it's head behind the ring with the 2 holes in it and it pulls the crank off as you loosen the bolt. Be aware that sometimes the crank is really stuck on there and the ring can bend or break with too much torque but you can just remove the ring with a special tool or snap ring pliers or choose your weapon and then use a regular crank puller. Make sure you screw the crank bolt in to take the pressure of the ring if removing it.
Crankycrank is offline
Old 07-19-21, 02:20 PM
  #3
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,193
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked 252 Times in 154 Posts
If you decide to remove the self extractors, they have reverse threads. You will then need a crank puller with reverse threads to remove the crank arms.

See this forum thread: https://www.bikeforums.net/bicycle-m...k-removal.html

Last edited by gearbasher; 07-19-21 at 02:25 PM.
gearbasher is offline
Likes For gearbasher:
Old 07-19-21, 03:02 PM
  #4
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,866
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15626 Post(s)
Liked 3,098 Times in 2,306 Posts
If it isn't budging, perhaps a squirt of penetrating oil to lube between the crank bolts and the extractors, as well as on the BB spindle.
CliffordK is offline
Old 07-19-21, 03:13 PM
  #5
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 643

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 117 Times in 96 Posts
Thanks crankycrank...great info
thank you gearbasher for the link...

So I am wondering...should I turn the allan head bolt counter clockwise until it loosens up with all my might ?

I have removed 1 maybe 2 bottom brackets before with a park tool.

I don't want to damage the rings around the allen bolt.

I do have a friend at the bike shop that I could bring to......mmmmmmmm

Really appreciate all the great knowledge and advice

Thank you
bikemike73 is offline
Old 07-19-21, 03:23 PM
  #6
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 2,039
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 918 Post(s)
Liked 1,317 Times in 643 Posts
The crankset is drawn onto a tapered spindle on both side using those 7mm bolts. Turn them counter clockwise to draw them off the BB spindle. It will require some force.
__________________
nomadmax is offline
Old 07-19-21, 03:53 PM
  #7
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,825
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 503 Times in 387 Posts
Originally Posted by bikemike73 View Post
So I am wondering...should I turn the allan head bolt counter clockwise until it loosens up with all my might ?
I'm not a Campy expert on the bolt direction but would assume it's counterclockwise to loosen but assumptions can be wrong. Someone will chime in. You can use a fair amount of torque on the self-extractors but keep an eye on the aluminum ring and watch for bulging and just use your feel to make sure it doesn't rip out the threads. I've also had luck undoing the crank bolt as far as I dare and let it sit for a couple hours and then back out the bolt a little more, repeat until the crank comes loose. Better safe than sorry though for sure.
Crankycrank is offline
Old 07-19-21, 04:36 PM
  #8
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 643

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 117 Times in 96 Posts
Thanks again all

Would using like wd 40 help?


Also...once I get these off....can I use just the regular bolts like others I have?

Or is this a specific crank type ?


Again...really appreciate all the help
bikemike73 is offline
Old 07-19-21, 04:56 PM
  #9
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 671

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Miyata Elevation 300, 91; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 68 Times in 42 Posts
Turning the hex head counterclockwise will extract the crank, assuming you can get it turning. If that works, no need to take off the extractor ring, and no need to use anything else to re-install.

There's a good chance you'll have trouble removing the extractor ring, since those pin holes don't provide much purchase.

The fact that you got some movement suggests that the bolt isn't frozen—you probably just need to push (or pull) harder. I'd use a good hex bit with a socket wrench, and take care not to round the bolt recess.

If it doesn't budge, rather than WD-40, get a real penetrating oil, apply liberally, tap the part to aid penetration, and wait a day. It looks like there might be some rust involvement.
John Nolan is offline
Old 07-19-21, 05:00 PM
  #10
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,193
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked 252 Times in 154 Posts
You can use regular bolts, but as I said the self extractors are left hand threads. So, you cannot use a dust cap. And you would need a left-handed thread crank remover. These are expensive and hard to find these days. I did remove my self extractors and used these campy bolts so I didn't need a dust cap. And I bought a C-record (left hand thread) extractor. They were reasonably priced back in the day.

Here is an ebay listing for a left hand thread Campy C-Record extractor. My opinion: he's asking too much.
https://www.ebay.com/itm/28406126255...iABEgIqUPD_BwE
gearbasher is offline
Old 07-19-21, 05:10 PM
  #11
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 643

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 117 Times in 96 Posts
Thank you all again!!

Very much appreciated


So just to be sure......to remove I turn to the LEFT ( counter clockwise..
Please forgive my OCD


Thank you very much
bikemike73 is offline
Old 07-19-21, 05:39 PM
  #12
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 1,193
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked 252 Times in 154 Posts
If you are just removing the crank arm with the 7mm Allen you turn it counter clockwise.
gearbasher is offline
Old 07-19-21, 05:39 PM
  #13
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 2,825
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 577 Post(s)
Liked 503 Times in 387 Posts
Originally Posted by bikemike73 View Post
So just to be sure......to remove I turn to the LEFT ( counter clockwise..
Please forgive my OCD
Correct. No shame for asking needed. But she can help you with that if you insist.

Crankycrank is offline
Old 07-19-21, 05:54 PM
  #14
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,308

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1673 Post(s)
Liked 1,208 Times in 754 Posts
Originally Posted by bikemike73 View Post
Thanks again all

Would using like wd 40 help?


Also...once I get these off....can I use just the regular bolts like others I have?

Or is this a specific crank type ?


Again...really appreciate all the help
no on wd 40, penetrating oil good luck
squirtdad is offline
Old 07-19-21, 06:01 PM
  #15
bikemike73
Senior Member
Thread Starter

Join Date: Mar 2016
Location: North of Boston
Posts: 643

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 117 Times in 96 Posts
Thanks again,


I feel better already...especially with the pic above

I'll go get a 7mm hex bit for my socket wrench for a little more " torque"

I think it has been off before. The BB spins quiet , fast, and freely !!!

I would normally just leave it be, but I bought a campy crankset to replace it.

Needed new chainrings anyway and just decided to replace the crank arms on both sides

Thank you again for all your great help !!!

Last edited by bikemike73; 07-19-21 at 07:07 PM.
