Vintage derailleur with longest "sweep"

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Vintage derailleur with longest "sweep"

Old 06-08-21, 09:08 AM
  #1
chune
Junior Member
Thread Starter

Join Date: May 2021
Posts: 12
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Vintage derailleur with longest "sweep"

After converting my wife's 77 Raleigh grand prix to 700c with a 10-speed cassette I got bit by the vintage road bike bug. 3 months later I find myself with 7 vintage road bikes in the garage all getting the 700c+10 speed treatment. The first Raleigh came with a (rare?) Suntour Perfect 14-34t 5-speed freewheel paired to a Suntour U rear derailleur. While the stated capacity was only 30 teeth, I knew it worked fine with a 34t freewheel and picked up a 11-34t 10 speed cassette and 10 speed chain. These all worked great and I was pretty surprised to see the stock front chainrings toss around the skinny 10sp chain with hardly any issues. I was also surprised to see it shift to the 34t cog with relative ease.

The cassette/pulley clearance was cutting it pretty close on the Suntour U rear derailleur so I decided to try a Suntour V GT with the longer cage. To my surprise, the V GT derailleur would not even reach the 2nd largest cog with all of the limit screws backed out. It seems the "sweep" (or whatever you call it) on the Suntour V GT is far less than the Suntour U. I also found this to be true of the tri color shimano 600 rear derailleur.

So short story long:
Which vintage derailleurs have the longest sweep?
Any long-cage, long-sweep vintage rear derailleurs?
Can the suntour V GT derailleurs be modified to achieve a longer sweep?

Thanks!
chune is offline
Old 06-08-21, 09:13 AM
  #2
sheddle
Senior Member

Join Date: Oct 2008
Location: Seattle
Posts: 1,411

Bikes: my precious steel boys

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 431 Post(s)
Liked 573 Times in 341 Posts
Originally Posted by chune View Post
After converting my wife's 77 Raleigh grand prix to 700c with a 10-speed cassette I got bit by the vintage road bike bug. 3 months later I find myself with 7 vintage road bikes in the garage all getting the 700c+10 speed treatment. The first Raleigh came with a (rare?) Suntour Perfect 14-34t 5-speed freewheel paired to a Suntour U rear derailleur. While the stated capacity was only 30 teeth, I knew it worked fine with a 34t freewheel and picked up a 11-34t 10 speed cassette and 10 speed chain. These all worked great and I was pretty surprised to see the stock front chainrings toss around the skinny 10sp chain with hardly any issues. I was also surprised to see it shift to the 34t cog with relative ease.

The cassette/pulley clearance was cutting it pretty close on the Suntour U rear derailleur so I decided to try a Suntour V GT with the longer cage. To my surprise, the V GT derailleur would not even reach the 2nd largest cog with all of the limit screws backed out. It seems the "sweep" (or whatever you call it) on the Suntour V GT is far less than the Suntour U. I also found this to be true of the tri color shimano 600 rear derailleur.

So short story long:
Which vintage derailleurs have the longest sweep?
Any long-cage, long-sweep vintage rear derailleurs?
Can the suntour V GT derailleurs be modified to achieve a longer sweep?

Thanks!
The Suntour AG derailleurs had a 38 tooth capacity/max, I think.
sheddle is offline
Old 06-08-21, 09:17 AM
  #3
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 2,376

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 570 Times in 386 Posts
Originally Posted by sheddle View Post
The Suntour AG derailleurs had a 38 tooth capacity/max, I think.
I think sweep to the OP means right to left, rather than capacity? From lowest gear position 1, to highest gear position X?

But a higher capacity large tooth would likely be better for clearing the cogs on the way to the inner limit.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is offline
Likes For jdawginsc:
Old 06-08-21, 09:20 AM
  #4
chune
Junior Member
Thread Starter

Join Date: May 2021
Posts: 12
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jdawginsc View Post
I think sweep to the OP means right to left, rather than capacity? From lowest gear position 1, to highest gear position X?
Correct, I'm not talking about tooth capacity, I'm talking about distance traveled from the un-tensioned position to fully tensioned position of the derailleur (ie- how close to the spokes can I get?)
chune is offline
Old 06-08-21, 09:22 AM
  #5
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,117

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 805 Times in 495 Posts
@chune - Welcome to the C&V Forum.
Good question. I have wondered that myself.
the other consideration is the distance between the mount and the pivot. My wifes 74 Raleight GP Mixte has a Simplex Prestige with a longer distance than the Vx GT which I wanted to use. It will not fit under the largest sprocket. I tried a different hanger that dropped the RD a bit but still couldnt' make it work with the original block.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 06-08-21, 09:28 AM
  #6
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 2,376

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 570 Times in 386 Posts
Originally Posted by chune View Post
Correct, I'm not talking about tooth capacity, I'm talking about distance traveled from the un-tensioned position to fully tensioned position of the derailleur (ie- how close to the spokes can I get?)
Smarter folks than me will chime in and hopefully correct me, but I think a lot of the older derailleurs didn't need a lot of sweep since the freewheels were relatively thin spaced and the wheels dished to place the freewheel close to the stays side....probably to keep the hub bearings from blowing up.

I think...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is offline
Likes For jdawginsc:
Old 06-08-21, 09:34 AM
  #7
sheddle
Senior Member

Join Date: Oct 2008
Location: Seattle
Posts: 1,411

Bikes: my precious steel boys

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 431 Post(s)
Liked 573 Times in 341 Posts
Originally Posted by jdawginsc View Post
I think sweep to the OP means right to left, rather than capacity? From lowest gear position 1, to highest gear position X?

But a higher capacity large tooth would likely be better for clearing the cogs on the way to the inner limit.
Oh, that makes more sense, I thought it mean the front-rear arm sweep which more or less would match up with total cap.
sheddle is offline
Old 06-08-21, 09:34 AM
  #8
chune
Junior Member
Thread Starter

Join Date: May 2021
Posts: 12
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks for the welcome! Glad to find some active forums that haven't been cannibalized by facebook.

I had considered filing down the pivot area to bring it in closer but that would be a last resort. Another idea I had was to fab up a claw style hangar that has a step in towards the spokes. These all sound like a lot of work though if a derailleur that works out of the box exists. It's just too bad disraeligears doesn't collect this information.
chune is offline
Old 06-08-21, 09:38 AM
  #9
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 6,819

Bikes: '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022, '21 Tsunami SNM-100

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Liked 1,318 Times in 709 Posts

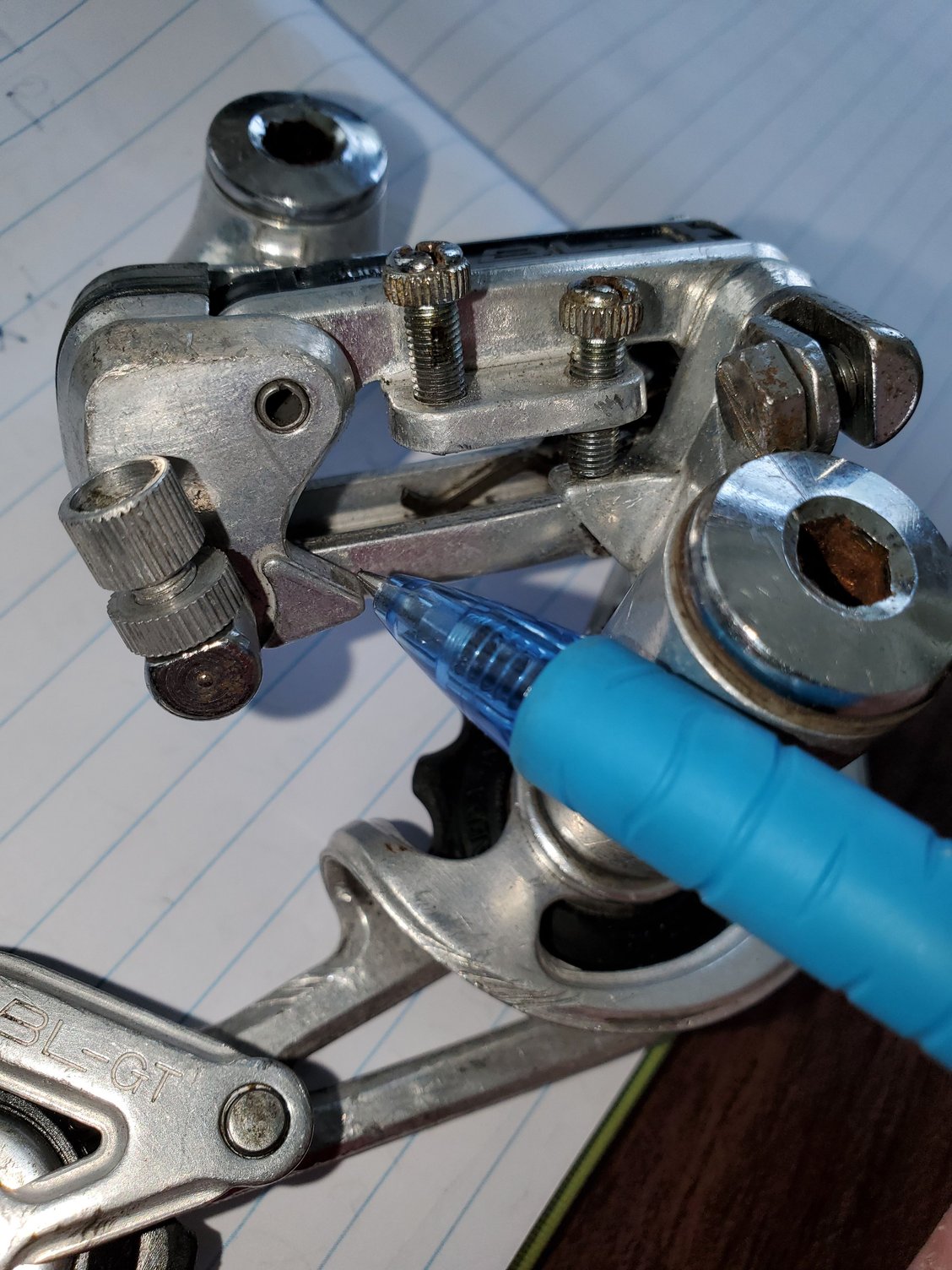

In theory, it is possible to examine the V GT derailleur and identify where the mechanical stop is that limits inward sweep. I'm looking at a BlueLine GT right now to determine where material must be removed. In the attached photo, you'll see where my pen is pointing. This tab is what stops the inward travel at the point where it either contacts the L limit screw or the plate through which this screw is threaded. By removing material on this tab, you can increase the angular sweep. By how much? I'm guessing that you might be able to get one or two more inward cogs of travel.
Phil_gretz is online now
Likes For Phil_gretz:
Old 06-08-21, 09:44 AM
  #10
chune
Junior Member
Thread Starter

Join Date: May 2021
Posts: 12
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jdawginsc View Post
Smarter folks than me will chime in and hopefully correct me, but I think a lot of the older derailleurs didn't need a lot of sweep since the freewheels were relatively thin spaced and the wheels dished to place the freewheel close to the stays side....probably to keep the hub bearings from blowing up.

I think...
Right, that's why I was so surprised to see the travel I got out of that 70s suntour U derailleur! It looks like the suntour GT may be the answer, as it is classed in the same family as the suntour U and lacks the thick pivot mount point of the V GT:

disraeligears.co.uk/Site/SunTour_GT_derailleur_1200.html

I actually just passed on one at the co-op thinking it was a V GT so I may have to go grab that.
chune is offline
Old 06-08-21, 09:52 AM
  #11
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 6,819

Bikes: '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022, '21 Tsunami SNM-100

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Liked 1,318 Times in 709 Posts
Cyclone Mk II has quite a bit of inward travel. The BlueLine GT (above) has quite a bit as well. Take a moment to investigate whatever derailleur(s) among which you're choosing. Maybe develop a jig of some sort with an M10 threaded hole and some means to gauge lateral movement?
Phil_gretz is online now
Old 06-08-21, 10:48 AM
  #12
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,092
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1939 Post(s)
Liked 911 Times in 614 Posts
I would probably go to Velobase and look at the touring and MTB groups from Shimano and Suntour. They are grouped there. Find the point where they still look vintage to you and pick one of those. Some of the Shimano MTB RD from the late 80s/early 90s still have the older look.

VeloBase.com

Last edited by seypat; 06-08-21 at 10:52 AM.
seypat is offline
Old 06-08-21, 10:50 AM
  #13
seypat
Senior Member

Join Date: Oct 2010
Posts: 6,092
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1939 Post(s)
Liked 911 Times in 614 Posts
Originally Posted by Phil_gretz View Post
Cyclone Mk II has quite a bit of inward travel. The BlueLine GT (above) has quite a bit as well. Take a moment to investigate whatever derailleur(s) among which you're choosing. Maybe develop a jig of some sort with an M10 threaded hole and some means to gauge lateral movement?
I know the Cyclones and BLs will work with 8 speed.
seypat is offline
Old 06-08-21, 11:55 AM
  #14
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,885

Bikes: old ones

Mentioned: 283 Post(s)
Tagged: 0 Thread(s)
Quoted: 21810 Post(s)
Liked 4,679 Times in 3,430 Posts
.
...when I work on this stuff, I'm way past needing 10 cogs in the rear, because I can get the gear range I need with 8, the chains and cassettes are cheaper, and I don't need to fine tune my cadence beyond that. All of which is to say I have no answer for you. I think maybe no one has worried about it for the same reasons I have never found it to be an issue.

What I have found to be an issue is shifting much more than 6 or seven speeds in the rear, using friction shifting. For me, friction downtube shifters work much more reliably by feel at those numbers. And I have no problem getting a full range of gearing at that level of development.
3alarmer is offline
Old 06-08-21, 12:15 PM
  #15
chune
Junior Member
Thread Starter

Join Date: May 2021
Posts: 12
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 3alarmer View Post
.
...when I work on this stuff, I'm way past needing 10 cogs in the rear, because I can get the gear range I need with 8, the chains and cassettes are cheaper, and I don't need to fine tune my cadence beyond that. All of which is to say I have no answer for you. I think maybe no one has worried about it for the same reasons I have never found it to be an issue.

What I have found to be an issue is shifting much more than 6 or seven speeds in the rear, using friction shifting. For me, friction downtube shifters work much more reliably by feel at those numbers. And I have no problem getting a full range of gearing at that level of development.
This was my initial approach using 7 and 8 speed cassettes. I ended up trying 10speed because I had most of the parts on hand and it worked surprisingly well with the friction shifters. My favorite are the ratcheting suntour power shifters. I am now venturing into what it would take to get a 1x setup on some of these with an 11-42t 10sp cassette. Once you start going to the wide range stuff, 10 speed is much cheaper and has smaller jumps between the cogs
chune is offline
Old 06-08-21, 12:30 PM
  #16
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 600

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 164 Times in 90 Posts
I have a 1X6 conversion on a vintage bike and have a shimano 105 mounted on a hanger. It swings quite a bit, but on that hanger, it just barely reached the 28t biggest gear. That dropout is about 128mm and I thought about a 1X7 freehub in back. My solution and yours would be as you mentioned, a hanger with an offset in it to position the rear derailleur into a position on the plane of the dropout as on a bike with direct mount.

I never saw something like that at my co-op, and briefly thought about bending one into shape, but that would be a challenge. I do believe that I have seen one such hanger in a photo once, maybe on a campagnolo.
sd5782 is offline
Old 06-08-21, 12:56 PM
  #17
Sluggo
Senior Member

Sluggo's Avatar

Join Date: Oct 2005
Location: Left bank, Knoxville TN
Posts: 591
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 93 Times in 44 Posts
I have gotten various vintage derailleurs to work with 9 speed, but some are close to their limits. Most of the the shifters I have used are maxed out, also.

Are you sure that your shifters are pulling enough cable?
Sluggo is offline
Likes For Sluggo:
Old 06-08-21, 11:02 PM
  #18
Vintage Schwinn
Senior Member

Join Date: Jun 2019
Posts: 380
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Likes: 0
Liked 171 Times in 113 Posts
It took the Japanese (Maeda SUN TOUR -and- SHIMANO) to be able to reliably shift the "Thirty-something 1ST GEAR.
The well respected Europeans (Campagnolo, Huret , & Simplex) could not at that point in time!
Certainly, you can make a case that the Japanese "borrowed" (perhaps almost stole) the best of the existing European rear derailleur designs and then further refined them with better component materials and better manufacturing tolerances as well as slightly better workmanship for a better overall engineered product.
You can thank the Japanese for the massive improvement in the area of rear derailleurs.
Japanese engineering revolutionized electronics, stereo high fidelity gear, televisions and soon after that bicycle rear derailleurs, automobile manufacturing & automobile engineering and many other unrelated manufacturing areas beginning in the mid sixties and spanning through just about the remainder of the 20th Century.
The Japanese take-over in rear derailleur dominance was massively swift, perhaps quicker than their earlier ascent to the domination of electronics, tv-stereo industry.
To borrow the old ad tag lines from the two biggies in the electronics industry..........The One and Only....&......Just Slightly Ahead Of Their Time..........................--well, yes indeed, the Japanese just slaughtered those three respected European names because their rear derailleurs were that much improved. The Europeans never came close once Shimano and Maeda SUNTOUR took over in the Seventies!
-------Basically, if your vintage rear derailleur doesn't say SHIMANO or Maeda SUNTOUR , it isn't a great vintage rear derailleur!!
Vintage Schwinn is offline
Old 06-08-21, 11:51 PM
  #19
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,823 Times in 1,051 Posts
Originally Posted by Vintage Schwinn View Post
It took the Japanese (Maeda SUN TOUR -and- SHIMANO) to be able to reliably shift the "Thirty-something 1ST GEAR.
The well respected Europeans (Campagnolo, Huret , & Simplex) could not at that point in time!
Certainly, you can make a case that the Japanese "borrowed" (perhaps almost stole) the best of the existing European rear derailleur designs and then further refined them with better component materials and better manufacturing tolerances as well as slightly better workmanship for a better overall engineered product.
You can thank the Japanese for the massive improvement in the area of rear derailleurs.
Japanese engineering revolutionized electronics, stereo high fidelity gear, televisions and soon after that bicycle rear derailleurs, automobile manufacturing & automobile engineering and many other unrelated manufacturing areas beginning in the mid sixties and spanning through just about the remainder of the 20th Century.
The Japanese take-over in rear derailleur dominance was massively swift, perhaps quicker than their earlier ascent to the domination of electronics, tv-stereo industry.
To borrow the old ad tag lines from the two biggies in the electronics industry..........The One and Only....&......Just Slightly Ahead Of Their Time..........................--well, yes indeed, the Japanese just slaughtered those three respected European names because their rear derailleurs were that much improved. The Europeans never came close once Shimano and Maeda SUNTOUR took over in the Seventies!
-------Basically, if your vintage rear derailleur doesn't say SHIMANO or Maeda SUNTOUR , it isn't a great vintage rear derailleur!!
Ok, but do you have an answer for the OP?

This only informs them that some model of Shimano or Suntour derailer could wrap a 30 tooth cog and that everything else is junk.

-Kurt
__________________








Last edited by cudak888; 06-08-21 at 11:55 PM.
cudak888 is offline
Old 06-09-21, 01:31 AM
  #20
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 600

Bikes: 1964 Frejus Tour de France, 1964 Huffy Sportsman 3 speed, 1972 Schwinn Supersport, 1983 Trek 700, 1985 Centurion Ironman, 1989 Miyata 1000LT, 1991 Bianchi Boardwalk

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 164 Times in 90 Posts
Something like this maybe?


Campagnolo Derailleur hanger 80/2 with bolt/nut NOS - the one for Nuovo Record and others! NOS

Is yours on a hanger?
sd5782 is offline
Old 06-09-21, 04:59 AM
  #21
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,503
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Likes: 0
Liked 521 Times in 328 Posts
Originally Posted by sd5782 View Post
My solution and yours would be as you mentioned, a hanger with an offset in it to position the rear derailleur into a position on the plane of the dropout as on a bike with direct mount.

I never saw something like that at my co-op, and briefly thought about bending one into shape, but that would be a challenge. I do believe that I have seen one such hanger in a photo once, maybe on a campagnolo.
I'll make you one - with two. I'll take the top off one and the bottom off the other, overlap them, and braze them together. Probably could make the resulting mount a bit longer as well if that would help.

pm me if you think you'd like to try that; I'll be at the co-op tonight and will see what they have for hangers.
oneclick is offline
Likes For oneclick:
Old 06-09-21, 09:11 AM
  #22
chune
Junior Member
Thread Starter

Join Date: May 2021
Posts: 12
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by oneclick View Post
I'll make you one - with two. I'll take the top off one and the bottom off the other, overlap them, and braze them together. Probably could make the resulting mount a bit longer as well if that would help.

pm me if you think you'd like to try that; I'll be at the co-op tonight and will see what they have for hangers.
I am interested! And if I get one more post I can PM you haha
chune is offline
Old 06-09-21, 09:20 AM
  #23
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,823 Times in 1,051 Posts
Originally Posted by oneclick View Post
I'll make you one - with two. I'll take the top off one and the bottom off the other, overlap them, and braze them together. Probably could make the resulting mount a bit longer as well if that would help.
It never ceases to put a smile on my face how generous the C&V group is. Nice one, @oneclick.

-Kurt
__________________







cudak888 is offline
Old 06-09-21, 01:24 PM
  #24
Highmass
Member

Join Date: Aug 2019
Posts: 47
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked 14 Times in 9 Posts
Originally Posted by chune View Post
After converting my wife's 77 Raleigh grand prix to 700c with a 10-speed cassette I got bit by the vintage road bike bug. 3 months later I find myself with 7 vintage road bikes in the garage all getting the 700c+10 speed treatment. The first Raleigh came with a (rare?) Suntour Perfect 14-34t 5-speed freewheel paired to a Suntour U rear derailleur. While the stated capacity was only 30 teeth, I knew it worked fine with a 34t freewheel and picked up a 11-34t 10 speed cassette and 10 speed chain. These all worked great and I was pretty surprised to see the stock front chainrings toss around the skinny 10sp chain with hardly any issues. I was also surprised to see it shift to the 34t cog with relative ease.

The cassette/pulley clearance was cutting it pretty close on the Suntour U rear derailleur so I decided to try a Suntour V GT with the longer cage. To my surprise, the V GT derailleur would not even reach the 2nd largest cog with all of the limit screws backed out. It seems the "sweep" (or whatever you call it) on the Suntour V GT is far less than the Suntour U. I also found this to be true of the tri color shimano 600 rear derailleur.

So short story long:
Which vintage derailleurs have the longest sweep?
Any long-cage, long-sweep vintage rear derailleurs?
Can the suntour V GT derailleurs be modified to achieve a longer sweep?

Thanks!
Iīm surpirsed that you tricolor dosenīt have enough sweep. Is it the original 6400 version, from the seven speed group?. Iīm using the 6401 from the 8 speed group, on two of my bikes with no problems. As you probaply know, Shimano 8, 9 and 10 speed casettes are all the same size, the only difference is that the cogs are closer (And I think thinner) with a higher number of gears. Iīve run 9 speed casettes on both bikes (I have no need for 10 speed casettes and havenīt tried that) with no problems. Actually I have to use the limit screw, to prevent the rd hitting the spokes. Iīm wondering if the deralliur hanger is slightly bent outward?. But both versions of the tricolor rd, is specified for a max of 28 teeth on the largest cog, so that could be a problem for you. I donīt know how large a cog it can handle in the real world, as I live in a fairly flat area, and thus donīt run casettes with big cogs.
Highmass is online now
Old 06-09-21, 02:55 PM
  #25
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,221

Bikes: Yes

Mentioned: 393 Post(s)
Tagged: 0 Thread(s)
Quoted: 2306 Post(s)
Liked 1,028 Times in 518 Posts
Is there a reason you're trying to make this work with a period-correct derailleur? I can understand if you want to achieve a certain look, but there are plenty of derailleurs that don't look terrible on a vintage frame that are designed to work with 10 speed cassettes. As a bonus, you'd be halfway there if you decided to switch the bike over to indexed shifting.
__________________
My Bikes
Andy_K is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright Đ 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
